100Mbps 1000Mbps Rj45 To Sfp Media Converter Modular Design NF-C2200-SFP

Price	Negotiable
MOQ	1 piece
Delivery Time	within 1-3 working days after payment
Brand	Nufiber
Place of Origin	Shenzhen, China ( mainland)
Certification	CE
Model Number	NF-C2200-SFP
Packaging Details	Carton Packaging, the products are packed in international standard. Each carton is lined with a polythene sheet, thus preventng the contents from dampness
Payment Terms	T/T, Western Union, Credit card
Supply Ability	10000 pairs per month

Product Details

Product Specification

Connector	RJ45 port	Place of Origin	Shenzhen, China ( mainland)
Warranty	1 year	Packaging Details	Carton Packaging, the products are packed in international standard. Each carton is lined with a polythene sheet, thus preventng the contents from dampness
Fiber Interface	SFP	Model Number	NF-C2200-SFP
Fiber Type	Depend on the SFP	Supply Ability	10000 pairs per month
Certification	CE	Wavelength	Depend on the SFP
Brand Name	Nufiber	Payment Terms	T/T, Western Union, Credit card
Delivery Time	within 1-3 working days after payment	Minimum Order Quantity	1 piece
Transmission rate	10/100/1000M	Distance	Depend on the SFP

Product Description

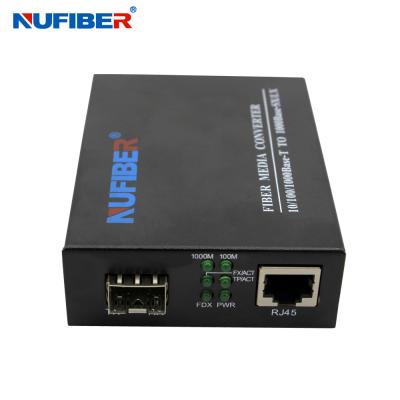

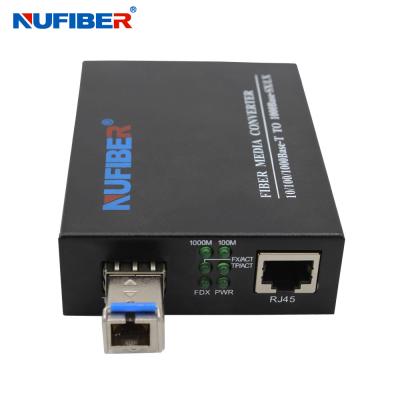

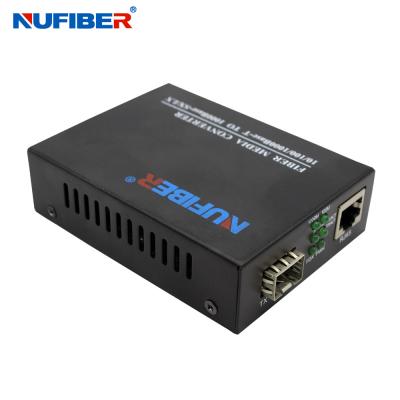

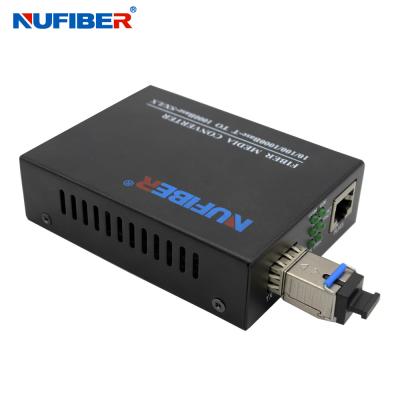

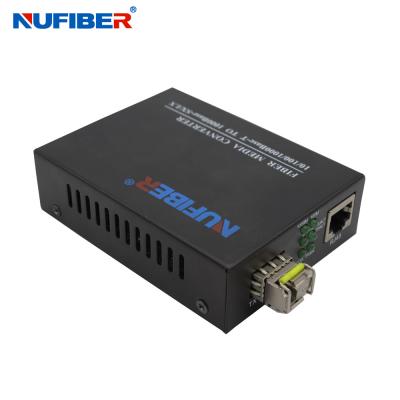

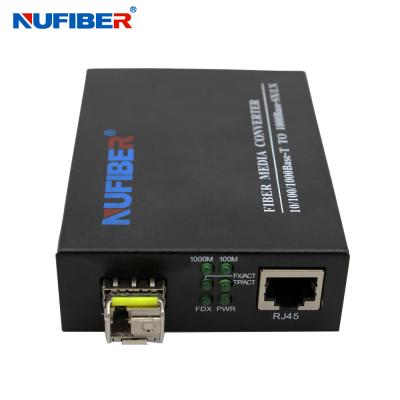

10/100/1000Mbps SFP Fiber Media Converter 10/100/1000Base-TX RJ45 Port to 1000Base-FX SFP Slot NF-C2200-SFP

Overview

This 10/100/1000M Gigabit Ethernet converter is used in backbone network transmission and is primarily used for Gigabit Ethernet devices links. It converts Optical-Electric Ethernet signals between 10/100/1000M UTP interface (TX) and 1000M SFP socket (FX). According to customers’requirements, this media converter supports single-mode and multi-mode fibers with a transmission distance of up to 120 km for single-mode fiber and 550 m for multi-mode fiber. It extends the transmission distance through its photoelectric conversion network. The media converter takes advantage of intelligent connection technology to provide auto-negotiation thereby eliminating the need to manually configure or monitor settings.

Key Features

Modular design, plug and play
Complies with IEEE 10/100Base-TX, IEEE 802.3ab 1000Base-T and IEEE 802.3z 1000Base-SX/LX standards
Auto negotiation function allows UTP ports to auto select 10/100/1000M and Full Duplex or Half Duplex
Available in single fiber WDM versions - 1310/1550 nm wavelengths used
Supports automatic cross of twisted pair ports
Alarm LED illuminates to indicate link failure, status LEDs for easy monitoring of device's status

Applications

1. Access Control Systems

2. Building and Environmental Control Systems

3. Tamper Switch

4. 10/100/1000 Mbps Ethernet Media Converter

5. High Speed Computer Links

Technical Parameter

Parameters	Specifications
Standards	IEEE802.3z 1000Base-SX/LX , IEEE802.3ab 1000Base-T Gigabit Ethernet IEEE802.3u,100Base-TX, IEEE 802.3 10Base-T
Wavelength	Multi-mode: 850 nm Single-mode: 1310 nm, 1550 nm
Transmission Distance	Fiber: Multi-mode: 550 m (fiber size: 50/125 μm) Single-mode: 10/20/50/80 km (fiber size: 8.3/125, 8.7/125, 9/125 or 10/125 μm) UTP: Cat. 5e or Cat. 6: 100 m
Port	One RJ45 port, One SFP Socket
MDI/MDI-X	Auto selection
LED Indicator	PWR: Illuminated for normal operation ALM: Illuminated when failure occurs on fiber or copper link LNK/ACT: Fiber link – Illuminated when receiving link pulses from compliant devices, Flashing when data packets are being transmitted/ received
Power Supply	Outside: 5V DC 2 A Built-in: 100 V to 240 V AC 50Hz to 60 Hz
Operating Temperature	0 °C to +70 °C
Storage Temperature	-20 °C to +80 °C
Storage Humidity	5% to 90% (non-condensing)
