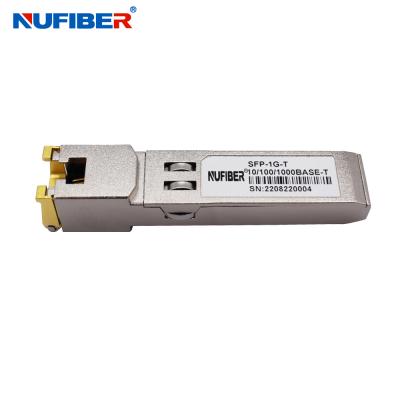

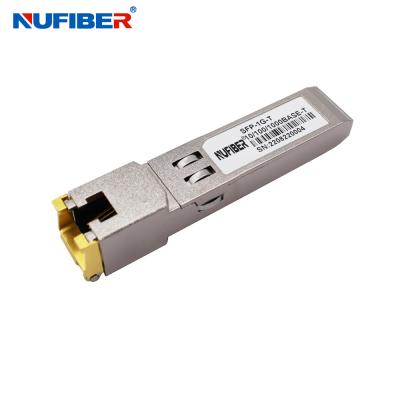

SFP-GE-T 1.25G Copper SFP RJ45 Gigabit Ethernet Transceiver SGMII/SERDES/100BASE-FX Copper Module

Price	Negotiable
MOQ	1 piece
Delivery Time	Within 1-3 work days
Brand	NUFIBER
Place of Origin	China
Certification	CE FCC Rohs
Model Number	SFP-GE-T
Packaging Details	10pcs/plastic bag, 500pcs/carton
Payment Terms	L/C, T/T, Western Union,Credit Card
Supply Ability	10,000 pcs per month

Product Details

Product Specification

Connector	Rj45	Place of Origin	China
Warranty	1 year	Packaging Details	10pcs/plastic bag, 500pcs/carton
Model Number	SFP-GE-T	DDM	Support
Supply Ability	10,000 pcs per month	Certification	CE FCC Rohs
Power Supply	3.3V	Brand Name	NUFIBER
Payment Terms	L/C, T/T, Western Union,Credit Card	Data Rate	1.25Gb/s
Delivery Time	Within 1-3 work days	Minimum Order Quantity	1 piece
Working Temperature	0~70℃	Manufacturer	Yes
Compatibility	Cisco, HP, Huawei, Finisar...	Distance	100m

Product Description

SFP-GE-T 1.25G Copper SFP RJ45 Gigabit Ethernet Transceiver SGMII/SERDES/100BASE-FX Copper Module

Description

GLC-T10/100/1000 copper SFP transceiver is high performance, cost effective module compliant with the Gigabit Ethernet and 10/100/1000BASE-T standards as specified in IEEE 802. 3-2002 and IEEE 802.3ab, which supporting 10/100/1000Mbps data- rate up to 100 meters reach over unshielded twisted-pair category 5 cable. The GLC-T10/100/1000 supports 10/100/1000 Mbps full duplex data-links with 5-level Pulse Amplitude Modulation (PAM) signals. All four pairs in the cable are used with symbol rate at 250Mbps on each pair. The GLC-T10/100/1000 provides standard serial ID information compliant with SFP MSA, which can be accessed with address of A0h via the 2-wire serial CMOS EEPROM protocol. The physical IC can also be accessed via 2-wire serial bus at address ACh.

Features

Up to 1.25Gb/s bi-directional data links
Hot-pluggable SFP footprint
Extended case temperature range (-40°C to +85°C )
Fully metallic enclosure for low EMI
Low power dissipation
Compact RJ-45 connector assembly
Detailed product information in EEPROM
+3.3V single power supply
Access to physical layer IC via 2-wire serial bus
10/100/1000 BASE-T operation in host systems with SGMII interface
Compliant with SFP MSA
Compliant with IEEE Std 802.3TM-2002
Compliant with FCC 47 CFR Part 15, Class B
RoHS Compliant Products

Applications

1.25 Gigabit Ethernet over Cat 5 cable
Switch/Router to Switch/Router Link
High speed I/O for file severs

Optical Parameters

Parameter	Symbol	Min.	Typical	Max.	Units	Notes/Conditions
Supply Current	Is		320	375	mA	1.2W max power over full range of voltage and temperature. See caution note below
Input Voltage	Vcc	3.13	3.3	3.47	V	Referenced to GND
Surge Current	Isurge		30		mA	Hot plug above steady state current. See caution note

Parameter	Symbol	Min.	Max.	Units	Notes/Conditions
SFP Output LOW	VOL	0	0.5	V	4.7k to 10k pull-up to host_Vcc.
SFP Output HIGH	VOH	host_Vcc -0.5	host_Vcc + 0.3	V	4.7k to 10k pull-up to host_Vcc.
SFP Input LOW	VIL	0	0.8	V	4.7k to 10k pull-up to Vcc.
SFP Input HIGH		2	Vcc + 0.3 V	V	4.7k to 10k pull-up to Vcc.

Transmission Line-SFP
Parameter	Symbol	Min.	Typical	Max.	Units	Notes/Conditions
Line Frequency	fL		125		MHz	5-level encoding, per IEEE 802.3
Tx Output Impedance	Zout,TX		100		Ohm	Differential
Rx Input Impedance	Zin,RX		100		Ohm	Differential

Ordering information

Dual Fiber SFP Transceiver
Part Number	Product Description
155Mbp/s SFP Transceiver
FE-SX-MM850	155Mbps, 850nm MM 2km Dual LC, DDM 0°C~+70°C
FE-SX-MM1310	155Mbps, 1310nm MM 2km Dual LC, DDM 0°C~+70°C
FE-LX20-SM1310	155Mbps, 1310nm SM 20km Dual LC, DDM 0°C~+70°C
FE-LX40-SM1310	155Mbps, 1310nm SM 40km Dual LC, DDM 0°C~+70°C
FE-LX80-SM1550	155Mbps, 1550nm SM 80km Dual LC, DDM 0°C~+70°C
FE-LX120-SM1550	155Mbps, 1550nm SM 120km Dual LC, DDM 0°C~+70°C
1.25Gbps SFP Transceiver
GE-SX-MM850	1.25Gbps, 850nm MM 500m Dual LC, DDM 0°C~+70°C
GE-SX-MM1310	1.25gbps, 1310nm MM 2km Dual LC, DDM 0°C~+70°C
GE-LX20-SM1310	1.25Gbps, 1310nm SM 20km Dual LC, DDM 0°C~+70°C
GE-LX40-SM1310	1.25Gbps, 1310nm SM 40km Dual LC, DDM 0°C~+70°C
GE-LX60-SM1550	1.25Gbps, 1550nm SM 60km Dual LC, DDM 0°C~+70°C
GE-LX80-SM1550	1.25Gbps, 1550nm SM 80km Dual LC, DDM 0°C~+70°C
GE-LX120-SM1550	1.25Gbps, 1550nm SM 120km Dual LC, DDM 0°C~+70°C
10Gbps SFP Transceiver
SFP+-10GB-SR	10G SFP+ SR Multi mode dual fiber LC 850nm 300M
SFP+-10GB-LRM	10G SFP+ LRM Multi mode dual fiber LC 1310nm 220M
SFP+-10GB-LR	10G SFP+ LR Single mode dual fiber LC 1310nm 20km
SFP+-10GB-ERM	10G SFP+ER Single mode dual fiber LC 1310nm 40km
SFP+-10GB-ER	10G SFP+ER Single mode dual fiber LC 1550nm 40km
SFP+-10GB-ZR	10G SFP+ZR Single mode dual fiber LC 1550nm 80km
XFP Transceiver
XFP-10G-SR	10G XFP SR Multi mode dual fiber LC 850nm 300M
XFP-10G-LRM	10G XFP LRM Single mode dual fiber LC 1310nm 10kM
XFP-10G-LR	10G XFP LR Single mode dual fiber LC 1310nm 20km
XFP-10G-ER	10G XFP ER Single mode dual fiber LC 1550nm 40km
XFP-10G-ZR	10G XFP ZR Single mode dual fiber LC 1550nm 80km
