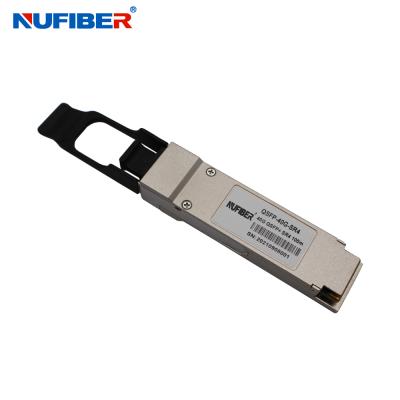

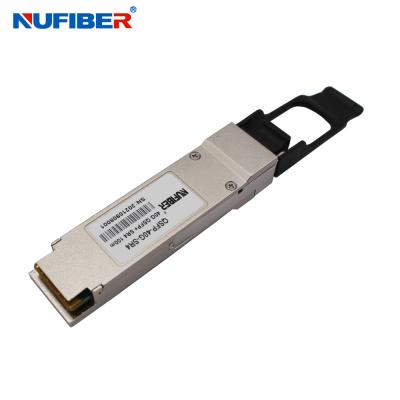

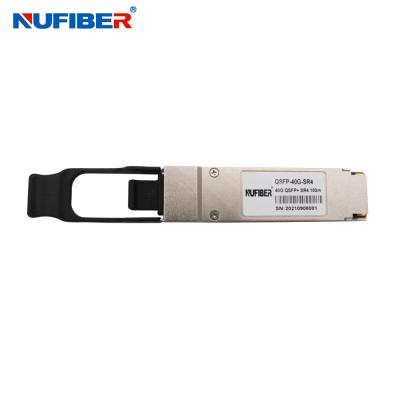

QSFP-40G-SR4 Multimode 40G QSFP+ Transceiver MPO Connector 850nm 100m

Price	Negotiable
MOQ	1 piece
Delivery Time	2-3 days
Brand	Nufiber
Place of Origin	China
Certification	CE FCC
Model Number	QSFP-40G-SR4
Packaging Details	10pcs/plastic bag, 200pcs/carton
Payment Terms	T/T, Western Union
Supply Ability	1000 Piece/Week

Product Details

Product Specification

Connector	MPO	Operating Temperature	0~70℃
Place of Origin	China	Warranty	1 year
Packaging Details	10pcs/plastic bag, 200pcs/carton	Model Number	QSFP-40G-SR4
Fiber Type	MMF	Supply Ability	1000 Piece/Week
Certification	CE FCC	Wavelength	850nm
Power Supply	3.3V	Brand Name	Nufiber
Payment Terms	T/T, Western Union	Data Rate	40Gb/s
Delivery Time	2-3 days	OEM	Support
Minimum Order Quantity	1 piece	Manufacturer	yes
Distance	150m

Product Description

40G QSFP+ Module Transceiver SR Multimode MPO 850nm 100m Compatible Cisco Aruba Mikrotik

QSFP-40G-SR4 40g Qsfp 150m 850nm MPO QSFP Fiber Optic Transceiver Module huawei cisco

Product Description:

This is a parallel 40Gbps Quad Small Form-factor Pluggable (QSFP) optical module that provides increased port density and total system cost savings. The QSFP full-duplex optical module offers 4 independent transmit and receive channels, each capable of 10Gbps operation for an aggregate bandwidth of 40Gbps 100m on OM3 Multimode Fiber (MMF)and 150m on OM4 MMF.

Features:

4 independent full-duplex channels
Up to 11.2Gbps per channel bandwidth
Aggregate bandwidth of > 40Gbps
MTP/MPO optical connector
QSFP MSA compliant
Digital diagnostic capabilities
Capable of over 100m transmission on OM3 Multimode Fiber (MMF)and 150m on OM4 MMF
CML compatible electrical I/O
Single +3.3V power supply operating
TX input and RX output CDR retiming
Built-in digital diagnostic functions
Temperature range 0°C to 70°C
RoHS Compliant Part

Applications:

² Rack to rack

² Data centers

² Metro networks

² Switches and Routers

² Infiniband 4x SDR, DDR, QDR

Ordering Information:

QSFP-40G-SR4	40Gb/s 150m MPO/MTP Connector, Multi mode, 850nm
QSFP-40G-LR4	40Gb/s 10km Duplex LC Connector, Single mode, 1270-1330nm
QSFP-40G-ER4	40Gb/s 40km Duplex LC Connector, Single mode, 1270-1330nm
QSFP-40G-LR-S	40Gb/s 2km PSM4 MPO Connector, Single mode, 1310nm
QSFP-40G-LR-S	40Gb/s 10km PSM4 MPO Connector, Single mode, 1310nm
QSFP-40G-LX4	40Gb/s 150m Duplex LC Connector, Multi mode(OM3), 1270-1330nm
QSFP-40G-LX4	40Gb/s 2km Duplex LC Connector, Single mode, 1270-1330nm
