| Price | Negotiable |
| MOQ | 1pair |
| Delivery Time | 1~3working day after payment |
| Brand | NUFIBER |
| Place of Origin | China(mainland) |
| Certification | CE RoHS FCC |
| Model Number | NF-401SB-T/R |
| Packaging Details | Packing Size/per boxes:21mm*15.6mm*5.3mm 40 Boxes / carton or As Your Mind |
| Payment Terms | T/T, Western Union |
| Supply Ability | 1000pair/month |
| Place of Origin | China(mainland) | Warranty | 1years |
| Support resolution | 1920x1200/60Hz | Packaging Details | Packing Size/per boxes:21mm*15.6mm*5.3mm 40 Boxes / carton or As Your Mind |
| Product Name | DVI Optical Extender | Color | Black,Golden |
| Dimension | 39* 59* 15 mm | Model Number | NF-401SB-T/R |
| Fiber Type | SM;4xLC Connector | Supply Ability | 1000pair/month |
| Certification | CE RoHS FCC | DVI input/Output | DVI-D 18+1 Male connector |
| Brand Name | NUFIBER | Payment Terms | T/T, Western Union |
| Delivery Time | 1~3working day after payment | Minimum Order Quantity | 1pair |
| Working Temperature | 0℃~+50℃ | Distance | 1000meters |
| Power | DC5V 1A |
Mini Fiber to DVI Extender 4Core to DVI Converter EDID function 1080P DVI Fiber Optic Extender
P/N:
NF-401SB-T/R (Single Mode,1000meters)
NF-401MB-T/R (Multi Mode,500meters)
Description:
NF-401SB-TR optical DVI module transmits 4 channels optical signal.
The
DVI
NF-401SB-Tx
and
DVI
NF-401SB-Rx
are
fiber
optic
transmitter/receiver
units
that
extend
DVI
signals
up
to
3,280'
(1000
meters)
using
four
Single-mode
fiber
optics
cables.
The
transmitter/receiver
pair
can
handle
DVI
video
signals
with
resolutions
up
to
1920
x
1200
or
1080p
@
60
Hz.
The
transmitter
plugs
directly
into
display
device
to
capture
and
store
the
display
device’s
EDID(extended
display
identification
data).
Automatic
EDID
programming
features
make
the
installation
of
NF-401SB
more
simple
and
flexible
to
apply
to
any
multi-resolution
display
system.
In
order
to
facilitate
your
usage,
the
default
setting
have
finished
UXGA
EDID
programme
before
delivery.
Features:
1) Transmits four link DVI-D signals up to 1000 meters over four single-mode fiber optic cables
2) Long distance image transmission;
The highest resolution:1920×1200 @60Hz;
The longest transmission distance: 1000m;
3) High resolution and image quality
4) No RF interference by optical fiber
5) Class 1 laser product complies with EN 60825-1
6) Small form factor – for easy connection and placement.
7) EDID learning for the support of any DVI display device.
8) No software to install.
Environmental
Operating Temperature: 0°C ~ +50°C
Storage Temperature: -20°C ~+70°C
Application:
◆ Digital Signage
◆ LED signboards in streets and in stadiums
◆ Medical Imaging Equipment
◆ Airplane On-board Video System
◆ Home Theater
◆ TV Broadcast Station
◆ Conference Room Video Equipment
Specification:
| Video | |
| DVI Compliance | DVI-D |
| HDCP Compliant | No |
| Distance | 500 meters |
| Max Resolution | 1920*1200@60Hz |
| Connectors | |
| TX Connectors | (1) DVI in, (2)LC |
| RX Connectors | (1) DVI out, (2) LC |
| Mechanical | |
| Dimensions | 64.5 x 40.6 x 14.5mm(L/W/H) |
| Weight | 30g |
| Power | |
| Power Supply | Input: 100~ 240 VAC, 50 ~ 60Hz |
| Output: 5V 1A DC | |
| Environmental | |
| Operation Temperature | 0 ~ +55°C |
| Storage Temperature | -20 ~ +70°C |
| Relative Humidity | 5~95% RH (no condensing) |
| Model Number | Description |
| NF-101SB-T/R | DVI Extender Single core LC*1 Single mode 1000meters |
| NF-101MB-T/R | DVI Extender Single core LC*1 Multi mode 500meters |
| NF-201SB-T/R | DVI Extender Single core LC*2 Single mode 1000meters |
| NF-201MB-T/R | DVI Extender Single core LC*2 Multi mode 500meters |
| NF-401SB-T/R | DVI Extender Single core LC*4 Single mode 1000meters |
| NF-401MB-T/R | DVI Extender Single core LC*4 Multi mode 500meters |
Connection Diagram

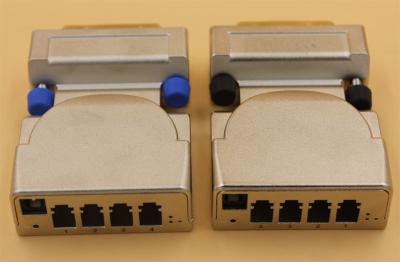

Product Show
Packing:
Factory Show
