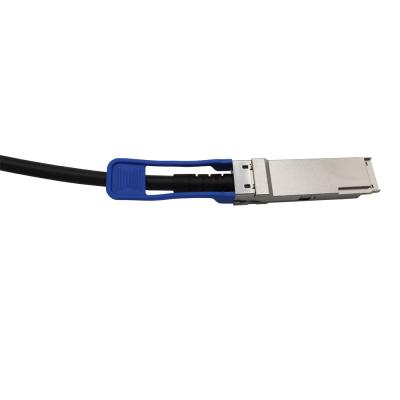

OEM 100G QSFP28 To QSFP28 DAC Copper Cable For FTTX Network Direct Attach Cable

Factory OEM 100G QSFP28 to QSFP28 DAC Direct Attach Copper Cable



Description

QSFP28 passive copper cable assembly feature eight differential copper pairs,providing four data transmission channels at speeds up to 28Gbps per channel,and meets 100G Ethernet,25G Ethernet and InfiniBand Enhanced Data Rate(EDR) requirements.Available in a broad rang of wire gages-from 26AWG through 30AWG-this 100G copper cable assembly features low insertion loss and low cross talk.

Designed for applications in the data center,networking and telecommunications markets that require a high speed,reliable cable assembly,this next generation product shares the same mating interface with QSFP+ form factor ,making it backward compatible with existing QSFP ports.QSFP28 can be used with current 10G and 14G applications with substantial signal integrity margin.

Key Features

• Compatible with IEEE 802.3bj and InfiniBand EDR
• Supports aggregate data rates of 100Gbps
• Optimized construction to minimize insertion loss and cross talk
• Backward compatible with existing QSFP+ connectors and cages
• Pull-to-release slide latch design
• 26AWG through 30AWG cable
• Use active IC to make the limit length of the cable 10M
• Straight and break out assembly configurations available
• Customized cable braid termination limits EMI radiation
• Customizable EEPROM mapping for cable signature
• RoHS compliant

Application

Switches,servers and routers

lData Center networks

lStorage area networks

lHigh performance computing

lTelecommunication and wireless infrastructure

lMedical diagnostics and networking

lTest and measurement equipment

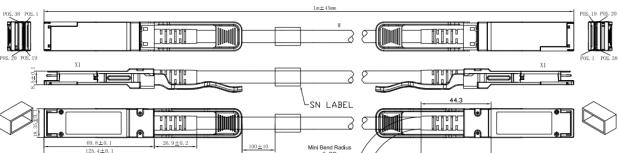

Mechanical Dimensions

The connector is compatible with the SFF-8432 and SFF-8665 specification.

Ordering Informations:

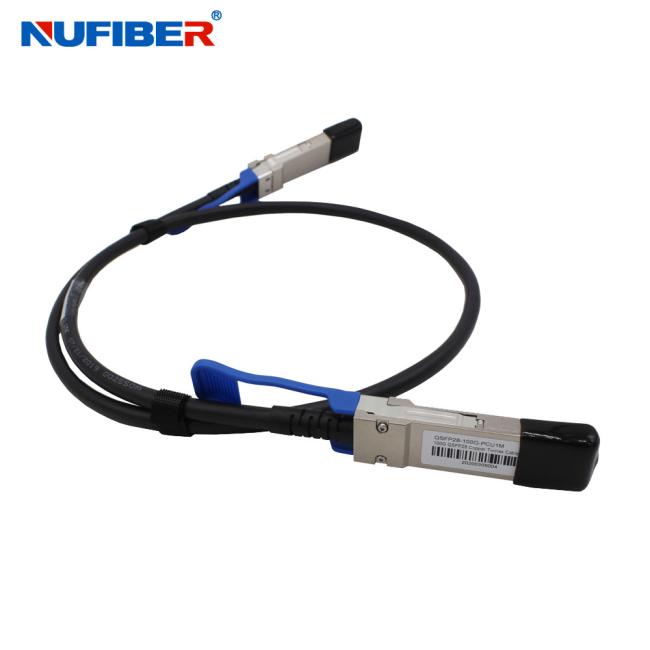

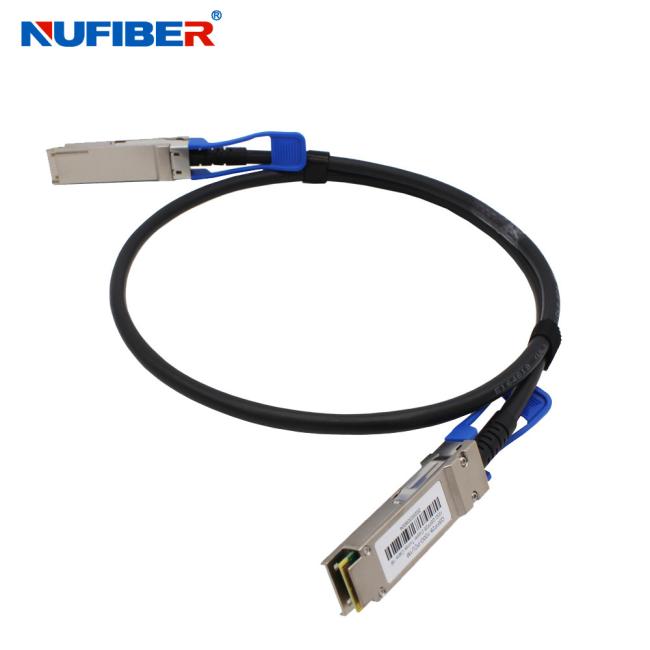

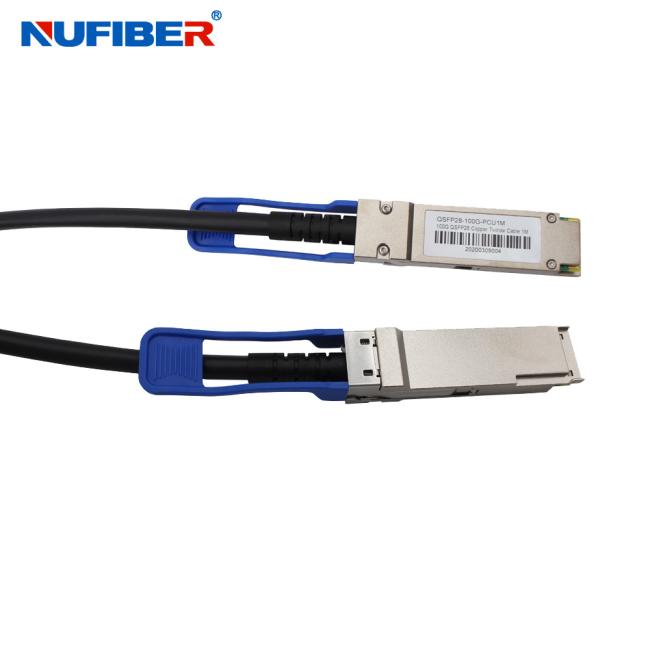

Product Show
