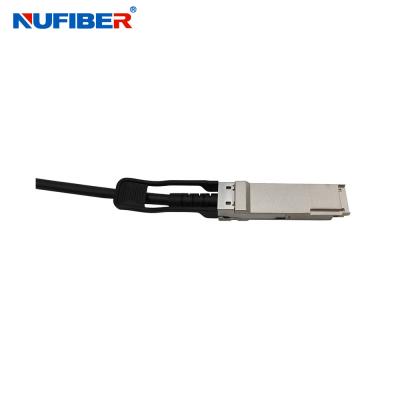

40G QSFP+ To QSFP+ Passive AWG24 Direct Attach Copper Cable 1M 3M

QSFP+ Cable 40g QSFP+ to QSFP+ DAC Passiver AWG24 Direct Attach Copper Cable 1M 3M


Description
QSFP+ (Quad Small Form-factor Pluggable Plus) copper direct-attach cables are suitable for very short distances and offer a highly cost-effective way to establish a 40-Gigabit link between QSFP+ ports of QSFP+ switches within racks and across adjacent racks. These cables are used for 40GbE and Infniband standards, to maximize performance. QSFP+ are designed to meet emerging data center and high performance computing application needs for a high density cabling interconnect system capable of delivering an aggregate data bandwidth of 40Gb/s. This interconnect system is fully compliant with existing industry standard specifications such as the QSFP MSA and IBTA (InfiniBand Trade Association). The QSFP+ cables support the bandwidth transmission requirements as defined by IEEE 802.3ba (40 Gb/s) and Infiniband QDR ( 4x10 Gb/s per channel) specifications.


Key Features

• Compliant QSFP MSA specifications
• Fully compatible with IEEE802.3ba and Infiniband QDR specifications
• 40 Gb/s total bandwidth
• 4 independent duplex channels operating at 10Gbps, also support for 2.5Gbps, 5Gbps data rates
• 100 ohm differential impedance system
• Single 3.3V power supply, low power consumption, <1.5W
• Low Near-End Crosstalk(NEXT)
• Operating case temperature: -40 to 85°C
• All-metal housing for superior EMI performance
• Precision process control for minimization of pair-to-pair skew
• AC coupling of PECL signals
• EEPROM for cable signature & system communications
• 30 AWG to 24 AWG cable sizes available
• RoHS compliant


Application

• Data

• Servers
  Networked storage systems
  Routers
  External storage systems
  Data Center networking

• Communications

• Switches
  Routers

• Industry Standards

• InfiniBand Trade Association (IBTA)
  IEEE802.3ba
  40Gigabit Ethernet ( 40G BASE – CR4)


Technical Parameter





Mechanical Dimensions


Ordering Informations:


Product Show
