| Price | Negotitaion |
| MOQ | 1000pcs |
| Delivery Time | 20-30days |
| Brand | ZKCS |
| Place of Origin | CHINA |
| Certification | ROSH 2.0 |
| Packaging Details | 50pcs or 100pcs/carton |
| Payment Terms | D/P,D/A,T/T,L/C |
| Supply Ability | 200000pcs/month |
| Performance: | Anti-tracking, Insulation, Weatherproof, Outdoor Available | Place of Origin | CHINA |
| Packaging Details | 50pcs or 100pcs/carton | Supply Ability | 200000pcs/month |
| Certification | ROSH 2.0 | Applicable Voltage: | Medium & Low Voltage |
| Brand Name | ZKCS | Payment Terms | D/P,D/A,T/T,L/C |
| Core Feature: | Seamless Expansion Self-cleaning | Price | Negotitaion |
| Delivery Time | 20-30days | Minimum Order Quantity | 1000pcs |
| Structure: | Big & Small Alternating Sheds |
Product Name

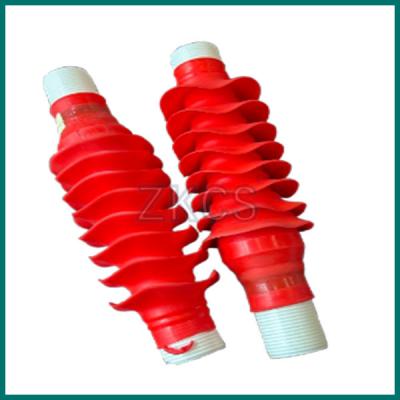

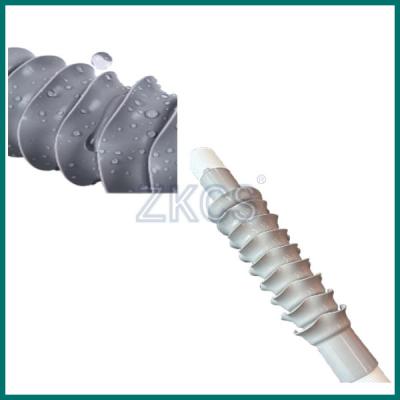

Seamless Expansion Self-cleaning Cold shrink termination
Product description
This Seamless Expansion Self-cleaning cold shrink termination is specially designed for medium and low voltage distribution station hubs and transmission tower piles.
Adopting optimized structural design, Seamless Expansion Self-cleaning technology solves the problem of inner wall longitudinal dent and keeps excellent outdoor dust and dirt removal ability.
With 9-piece large and small shed structure and 150mm maximum shed outer diameter, this Seamless Expansion Self-cleaning cable termination ensures sufficient creepage distance and effectively prevents creepage path and rainwater conductive channel.
Product Features:
The Seamless Expansion Self-cleaning design leaves no longitudinal concave mark on the inner wall after expansion, blocking the formation of creepage path.
Adopts big-small alternating shed structure, the Seamless Expansion Self-cleaning feature strongly avoids conductive channel between shed ends in heavy rain.
Configured with 9 umbrella sheds and max 150mm shed outer diameter, the Seamless Expansion Self-cleaning structure provides reliable creepage distance and long-term insulation safety.
Product Application:
Medium and low voltage supporting project, suitable for installing Seamless Expansion Self-cleaning cold shrink termination.
Transmission tower pile outdoor cable termination, preferentially equipped with Seamless Expansion Self-cleaning cold shrink termination.
Urban power grid outdoor line terminal layout, widely apply Seamless Expansion Self-cleaning cold shrink termination for safe insulation protection.
Rubber Typical Properties
| Properties | Test Method | Typical Value |
| Color | / | Black |
| Ultimate Tensile | ASTM D412-75 | 9.0MPa |
| Ultimate Elongation | ASTM D412-75 | 750% |
| Tear Resistance | ASTM D624C-73 | 30KN/m |
| Fungus Resistance | ASTM G21 28 days exposure | No Growth |
| Dielectric Strength | ASTM D149-75 @1.75 Original | 21KV/m |
| 7days in water at 90℃ | 20.5KV/m | |
| Volume resistance | ASTM D257 | 3.4×1015Ohm.cm |
All values are averages and are not intended for specification purposes.
FAQ
Q1: What’s the core highlight of this cold shrink termination?
A1: Our Seamless Expansion Self-cleaning design perfectly solves inner wall dent problem and keeps good outdoor self-cleaning ability.
Q1: Is it suitable for rainy outdoor tower pile use?
A2: Absolutely. The Seamless Expansion Self-cleaning shed structure can prevent rainwater from forming conductive channels between skirts.
Q1: How does it reduce creepage risk?
