| Price | Negotiable |
| MOQ | 1PC |
| Delivery Time | 5-15days |
| Brand | DL |
| Place of Origin | CHINA |
| Certification | CE/Rohs/PSE |
| Model Number | P10RGB P6RGB P4RGB |
| Packaging Details | wooden box / flight box |
| Payment Terms | L/C, T/T, Western Union, Credit Card, Visa |
| Supply Ability | 500PCS/month |
| Place of Origin | CHINA | Adjustable brightness | Supported |
| Packaging Details | wooden box / flight box | GPS Fuction | Supported |
| Model Number | P10RGB P6RGB P4RGB | Supply Ability | 500PCS/month |
| Certification | CE/Rohs/PSE | Brand Name | DL |
| Payment Terms | L/C, T/T, Western Union, Credit Card, Visa | Lifetime | ≥100000hours |
| Price | Negotiable | Delivery Time | 5-15days |
| Product name | outdoor led display | Program support | Video, image, letters, time, clock etc |
| Minimum Order Quantity | 1PC | Application | Outdoor waterproof |
| Pixel pitch | 10mm, 8mm, 6mm | Working voltage | 110V / 220V |
Back Access Cabinet Outdoor LED Display P10RGB P8RGB P6RGB LED Module Signs

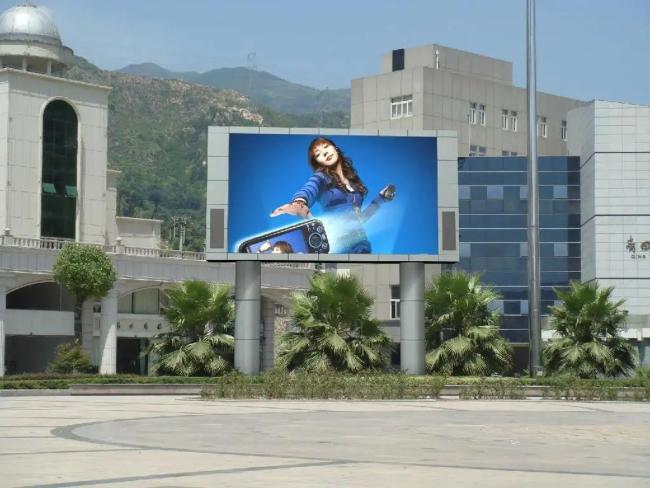

Features of Outdoor LED Billboards:
1: SMD3535 LED Lights, high brightness to be seen under sun light
2: Available for Galvanized iron cabinet, iron cabinet, aluminum cabinet, rust-proof technology

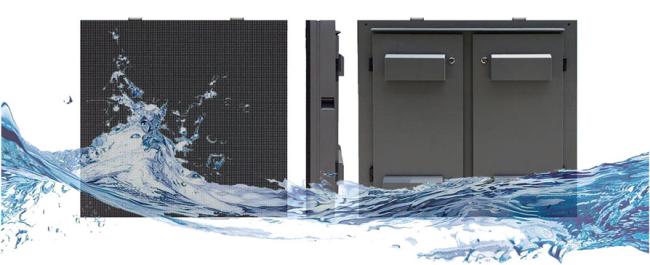

3: IP65 waterproof cabinet design, safe in rainy day.
4: Branded led lights: nation star led, kinglight led, MLS LED
5: Certified meanwell power supply, national standards power cable and data cable
Specs of LED Display:
| Model: | P10RGB | P8RGB | P6RGB | P5RGB |
| Pixel Pitch: | 10mm | 8mm | 6mm | 5mm |
| Pixel Density:(dots/㎡) | 10,000 | 15,625 | 27,777 | 40,000 |

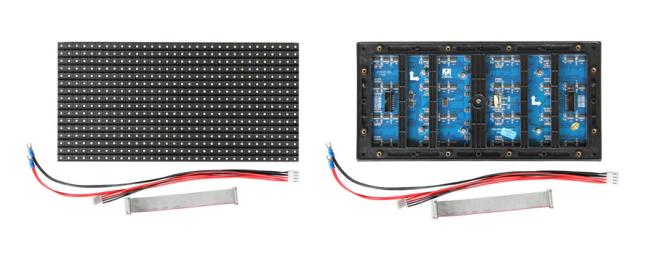

| Module size: | 160*320mm | 128*256mm | 192*192mm | 160*320mm |
| Module pixel: | 16*32dots | 16*32dots | 32*32dots | 32*64dots |
| Cabinet size: | 960*960mm | 768*768mm | 768*768mm | 960*960mm |
| Cabinet pixel: | 96*96dots | 96*96dots | 128*128dots | 192*192dots |
| LED Lights | SMD3535 | SMD2727 | ||
| Viewing distance: | 10-100m | 8-100m | 6-80m | 5-80m |
| Viewing angle: | V: 140°, H: 160° | |||
|
Power consumption: |
Max: 1000W/㎡ Avg: 320W/㎡ |
1150, 385 | ||
| Refresh rate: | ≥1920HZ | |||
| Working voltage: | 110v / 220v | |||
| Life time: | 100000hours | |||

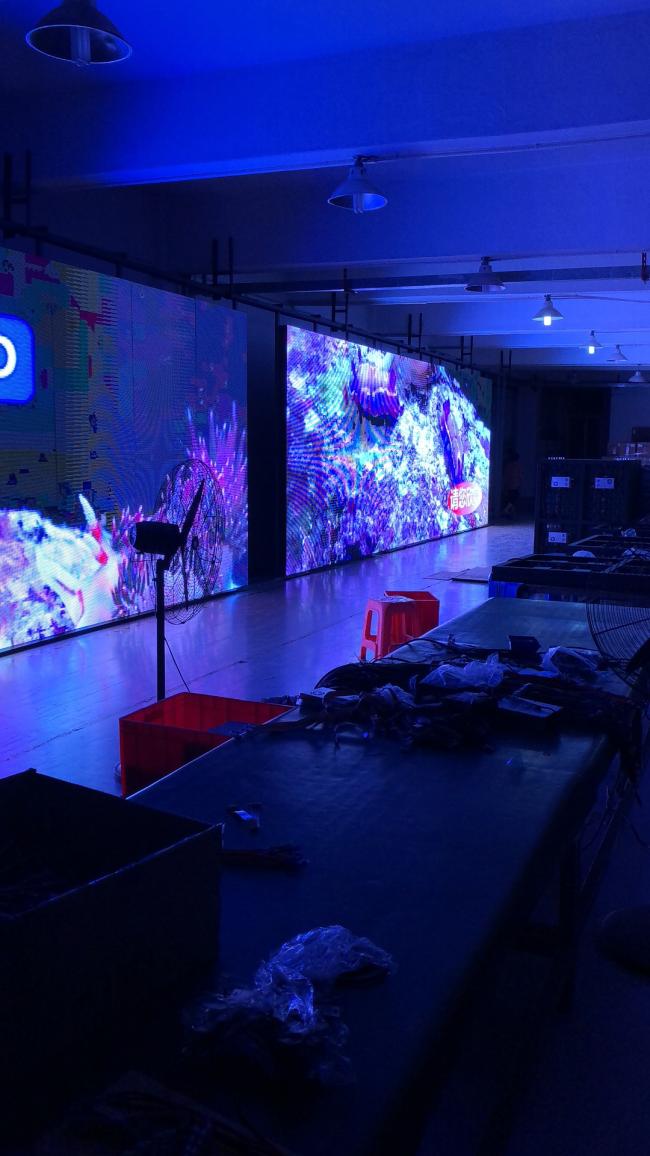

Production and aging for LED Video Board:
