| Price | USD2000-3000/square meter |
| MOQ | 1PC |
| Delivery Time | 5-15days |
| Brand | DL |
| Place of Origin | CHINA |
| Certification | CE/RoHS/FCC/PSE |
| Model Number | 3.91 / 4.81 |
| Packaging Details | wooden box / flight box |
| Payment Terms | T/T, Western Union |
| Supply Ability | 100square meters/month |
| Place of Origin | CHINA | Screen Dimension | Customized Size |
| Packaging Details | wooden box / flight box | Input Voltage | 100~264V |
| Material | die casting aluminum | Model Number | 3.91 / 4.81 |
| Supply Ability | 100square meters/month | Certification | CE/RoHS/FCC/PSE |
| Brand Name | DL | Payment Terms | T/T, Western Union |
| Pixel Pitch | 3.91mm 4.81mm | Refresh rate | 1920-3840Hz |
| Life span | ≥100000 hours | Price | USD2000-3000/square meter |
| Delivery Time | 5-15days | Product name | P3.91 P4.81 |
| Minimum Order Quantity | 1PC | Certificate | CE ROHS FCC |
P4.81 Outdoor Full Color Rental Led Display 500mm*500mm Factory Price
DL LED is a professional LED Signs manufacturer for more than 10years history. Our LED Window Display Signs with high brightness, and user-friendly software including PC and APP version which makes you free to update the content everyday. The wireless LED scrolling sign would show the ultra bright text to help you attract your client eyes to increase business. Also our illuminated window signs is with UL certified power supply, which ensure the most durable quality for the LED Board .
Pixel pitch: 3.91 mm

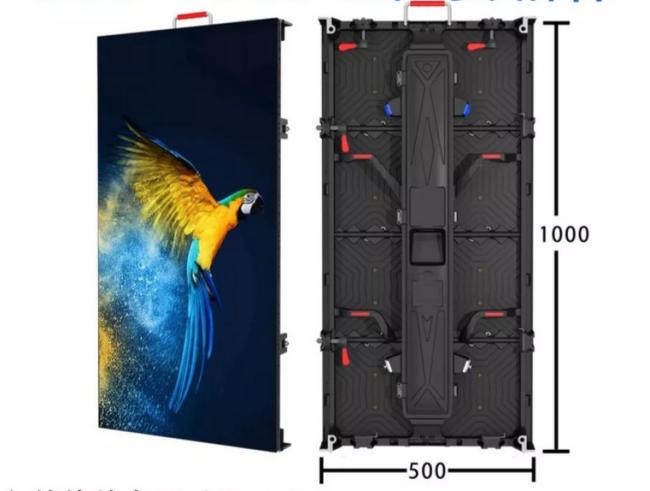

Cabinet dimension: 1000×500×75 mm
Pixel configuration: SMD1921
Brightness (cd/㎡): 3500cd/m²
Refresh rate: 1920Hz

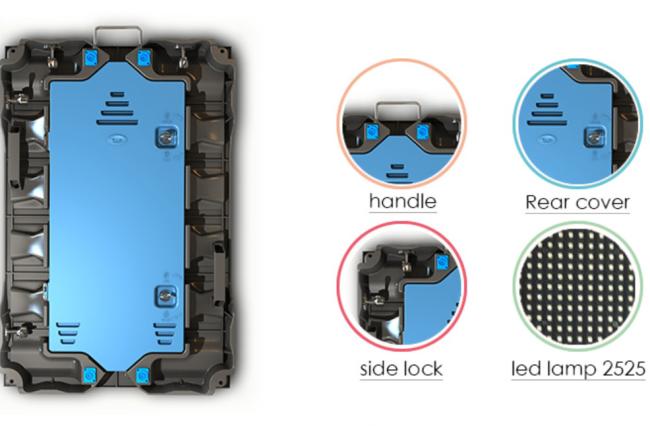

Die-cast Aluminum cabinet
Frony and Back maintenance
Module
| Dimensions(WxH) | 250x250mm | Resolution(WxH) | 64x64dots |
| Pixel Pitch(mm) | 3.91 | Pixel Density | 65536 pixels/m2 |
| Pixel Configuration | SMD 2121 | ||
| LED parameters |
R
WL(620-625NM) |
G:
WL:(520-524nm) |
B:WL:(470-472nm) |
|
|||
Cabinet
Specification
| Dimensions (WxH) | 500mm x 1000mm | Module Quantity | 8 |
| Physical Resolution(WxH) | 128 x 256 dots | Physical Pixels (Total) | 32768 |
| Weight/Cabinet | 6KG | Material | Die-Castiing aluminum |
|
|||
| Pixel pitch(mm) | P3.91 |
| LED Encapsulation | SMD2121 |
| Density(dot/m2) | 65536 |
| Module size LxH mm | 250*250mm |
| Module Resolution | 64*64dot |
| Cabinet Size | 500*1000mm |
| Cabinet resolution | 128*256dot |
| Viewing Distance | 3-8m |
| viwe angle(H) | 140° |
| view angle(V) | 140° |
| Brightness (cd/m²) | 1500 |
| average consumption m² | 550w |
| Max consumption m² | 1100w |
| Driving method | -25-65℃ |
| scan mode | 1/16scan |
| MTBF | 100000 |
| Frame frequency | 60Hz |
| input voltage | 110-220V |
| IP rating | IP55/IP42 |
1.
The
first
level
LED
chip
from
Taiwan
Epistar
2.
With
pure
golden
wire
connection
in
LED
3.
Grand
A
row
material
for
module
frame
and
mask
4.
4
layers
PCB
and
copper
plating
thickness
>
18mil
5.
Stainless
steel
screws
when
assembly
6.
Disassembly
and
assembly
are
quick
and
easy
7.
3
to
5
years
warranty
8 .Energy-saving 60% : driving with low frequency current, heat-dissipated roller fans with automatic temperature-controlling device.
9 .Life time >11 years;
FQA:
Q1. Can I have a sample order for the LED display?
A: Yes, we welcome sample order to test and check quality. Both for the module or the whole screen.
Q2. What about the lead time?
A: Order less than 100 square meters led time to take 15 working days
Q3. Do you have any MOQ limit for LED display order?
A: Low MOQ, 1 square meter or a module checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We mostly accept the FOB train term, but we can help you order and arrange a shipping agent. It usually takes 20 30 days on the sea. a few days for customs clearance
