| Price | 200-500USD/T |
| MOQ | 1 Ton |
| Delivery Time | 5-15 working days |
| Brand | CH Refractories |
| Place of Origin | China |
| Certification | ISO |
| Model Number | NG0.6 NG0.8 NG1.0 |
| Packaging Details | Paper box on Pallet |
| Payment Terms | T/T, L/C |
| Supply Ability | 5000 Ton per month |
| Refractoriness (degree) | 1250°~1350° | Place of Origin | China |
| Shape | Brick | Packaging Details | Paper box on Pallet |
| Color | Yellow | Material | Bauxite |
| Model Number | NG0.6 NG0.8 NG1.0 | Supply Ability | 5000 Ton per month |
| Certification | ISO | Name | Insulating Refractory Brick Furnace Wall Light Weight Insulation Fire Bricks |
| Brand Name | CH Refractories | Payment Terms | T/T, L/C |
| Thickness | common or customization | Price | 200-500USD/T |
| Delivery Time | 5-15 working days | Minimum Order Quantity | 1 Ton |

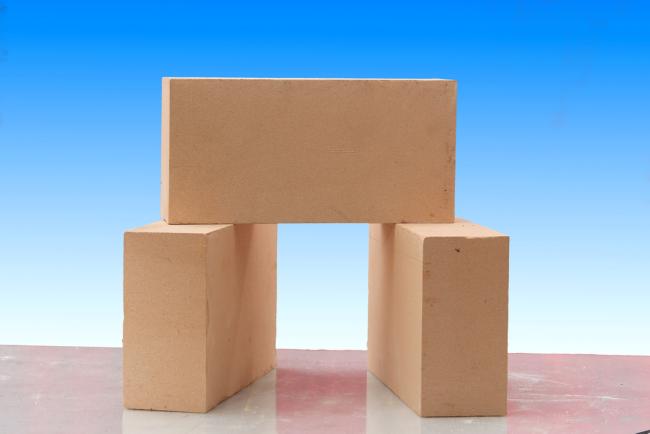

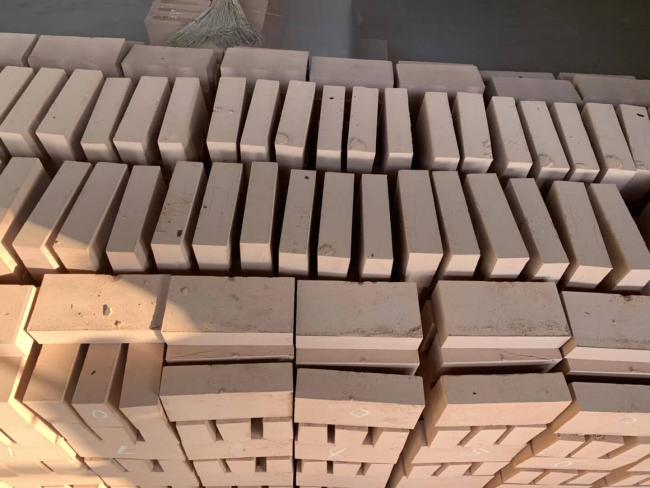

Insulating Refractory Brick Furnace Wall Light Weight Insulation Fire Bricks made by CH Refractory is made of local top grade fireclay materials under the high temperature according to the lastest national standard. The temperature in the 1200-1400 ℃. Ingredients are mixed with water made of plastic material or mud, mud with extrusion or pouring shape, 1250-1350after dry burning oxidation atmosphere. The volume density of commonly used insulated clay brick is 0.75-1.2 g/cm3. There are insulating clay bricks, high alumina insulation brick and mullite jm insulating bricks for insulation layer, which are suitable for different high temperature.
Just please inform us your required bricks working temperature, we can provide you the most economical suggestions to you.
Physical and chemical index of Fire Refractory Insulating Brick
| Brands | Clay Insulation Brick | |||
| / | CH-NG-0.5 | CH-NG-0.6 | CH-NG-0.8 | CH-NG-1.0 |
| BD g/cm3 | 0.5 | 0.6 | 0.8 | 1 |
| CCS/Mpa ≥ | 1.5 | 2 | 2.5 | 3.4 |
| The reheating line changes by no more than 2% of the test temperature/℃≤ | 1250 | 1300 | 1350 | 1350 |
| Thermal conductivity average temperature 350±25℃(W/m.k) | 0.18 | 0.25 | 0.35 | 0.5 |
| 0.1MpaRefractoriness under load (RUL)/ | 1160 | 1250 | 1280 | 1300 |
| Fe2O3% | 2.5 | 2.5 | 2 | 2 |
| Maximum use temperature/℃ | 1150 | 1200 | 1280 | 1300 |
| Brands | CH-LG-0.6 | CH-LG-0.8 | CH-LG-1.0 |
| BD g/cm3 | 0.6 | 0.8 | 1 |
| CCS /Mpa ≥ | 1.96 | 2.94 | 4 |
| The reheating line changes by no more than 2% of the test temperature /℃≤ | 1350 | 1400 | 1450 |
| Thermal conductivity average temperature 350±25℃(W/m.k) | 0.25 | 0.32 | 0.45 |
| 0.1MpaRUL/ | 1300 | 1350 | 1380 |
| Al2O3 /%≥ | 48 | 48 | 48 |
| Fe2O3 /% | 1.8 | 1.6 | 1.5 |
| Maximum use temperature /℃ | 1300 | 1350 | 1380 |
Applications
of
Fire
Refractory
Insulating
Brick:
Thermal
equipment
and
furnace
lining
Insulation
of
masonry
industrial
furnaces
