Product Details

Place of Origin	Guangdong	Nominal voltage	12V
Commutation	carbon brush / machenical	Packaging Details	500pcs per carton or as request
Model number	DC3160	Rated speed	7100rpm
Model Number	DC3160	Motor size	31mm OD * 60mm Length
Supply Ability	100000pcs per month	Certification	CE ROHS
Brand Name	SECORE	Payment Terms	T/T, D/A
Rated torque	550g.cm	Price	Negotiated The Price
Delivery Time	9-12 working days	Product name	31mm steel tube DC brushed motor
Minimum Order Quantity	100	No load speed	8000rpm
Application	Money counter, mixer, mincer	Power	25W

31mm stainless brush dc motor low noise 12V 3160 electric curtain brushed motor equip with reduce gearbox

Model Reference Number: DC3160

Voltage range: DC 12V, 24V
High Speed: 3530rpm to 9000rpm , or tailor-made
Features: High speed, high torque, steady running, low noise

DC brushed motor applies for money counter, blender, shreeder, mixer, mincer etc.

Product name	Mechanical commutated brush dc motor
Case Material	Stainless steel
Voltage (VDC)	12V-24V
Speed (RPM)	5000-8000
Motor dimension	31mm*60mm
Shaft diameter	5mm
Shaft length	15mm
Motor overall length	79mm approx include shaft
Rated current	0.65A

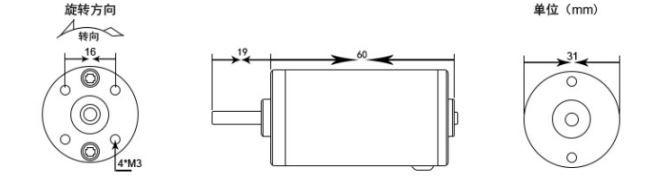

Motor dimensions

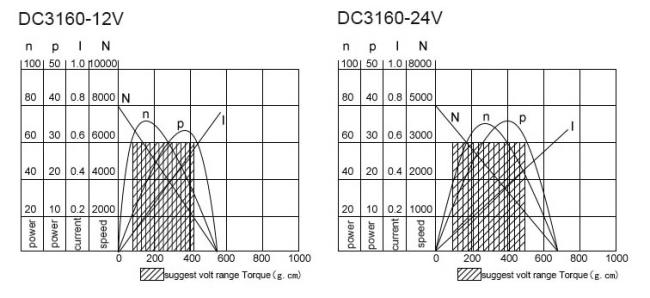

Performance curve

Determine the most suitable motor according to different movement:

For applications that run continuously and rarely shift gears, an AC series motor is a better choice.
For discontinuous dynamic applications, brushed DC motors or brushless DC motors are ideal.
For low-speed and high-load applications, a geared motor is an inevitable choice, that is: AC series motor/DC motor + reducer with a specific reduction ratio.
For applications that require stepless speed regulation, brushless DC motors are the best choice.
For applications that require precise positioning, stepper motors are a better choice.

Typical Application

Electric toothbrush	Electric toys	Electric tools	Electric callus removers
Robot vacuum cleaner	Model railways	Treadmill	Automobile electric components
Semiconductors	Office equipment	Power Hand Tool	Document handling equipment

31mm Stainless Brush Dc Motor 12V Electric Curtain 3160 With Reducer
