| Price | Negotiated The Price |
| MOQ | 100 |
| Delivery Time | 8-10 working days |
| Brand | Secore |
| Place of Origin | Shenzhen |
| Certification | ISO9001 |
| Model Number | BLS-5765I |
| Packaging Details | 20pcs per carton or as request |
| Payment Terms | T/T, D/A |
| Supply Ability | 100000pcs per month |
| Place of Origin | Shenzhen | Commutation | Ec commutating |
| Typical application | fitness equipment, power tool, industrial usage | Packaging Details | 20pcs per carton or as request |
| Model number | BLS-5067I | Motor dimension | OD52mm *L85mm |
| Model Number | BLS-5765I | Supply Ability | 100000pcs per month |
| Certification | ISO9001 | Brand Name | Secore |
| Payment Terms | T/T, D/A | Rated current | 3.65A |
| Type | high rpm bldc motor, high torque brushless motor | Price | Negotiated The Price |
| Delivery Time | 8-10 working days | Minimum Order Quantity | 100 |
| Speed rated | 4600 R/min | Shaft OD | 8mm or customize |
| No load speed | 5600rpm | Rated Torque | 1050g.cm /1.05kg.cm |
Solar
Ventilating
Fan
Bldc
Motor
Air
System
57mm
12V
16.8V
DC
Brushless
Motor
5765
Features
of
BLDC
Motor BLS-5765:
| Motor Model | BLS-5765I | Unit |
| Nominal voltage | 12 | V |
| No load speed ±12% | 2530 | rpm |
| Max cont.torque | 125 | N.m |
| Rated Speed | 1960 | rpm |
| Rated Current | 2.8 | A |
| Stall Torque | 555 | N.m |
| Stall current | 11.7 | A |

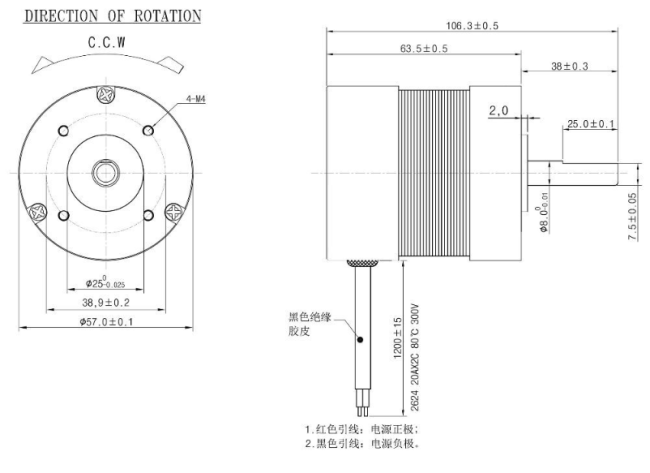

Dimension
of
the
bldc motor:

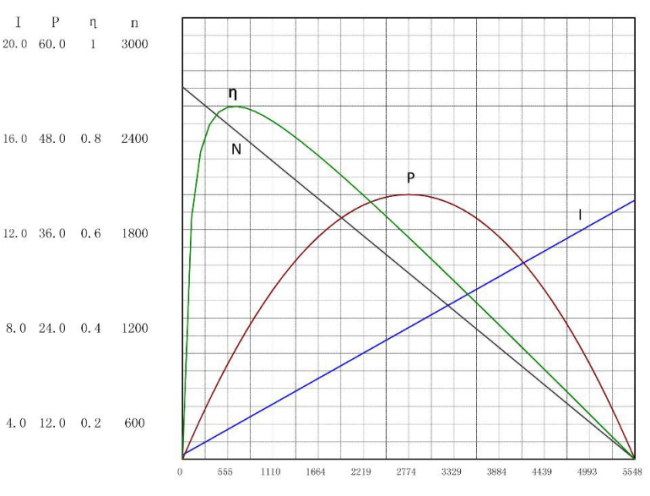

Performance
curve:
Motor
parameters
The motor parameters are: DC power supply voltage, rated output power, rated load torque, rated operating speed and the direction of rotation of the brushless DC motor: clockwise, counterclockwise or both are required, and the continuous duty cycle of the motor can be in accordance with a certain time operation, the environment that the DC brushless motor is adapted to: indoor, outdoor, ocean, high pressure, high temperature, high humidity, corrosive gas, the structure of the flange has two types of structure, square and round, and the length of the body .
