Product Details

Place of Origin	Guangdong	Commutation	brushless ( Ec commutating )
Typical application	office automation, robot	Continuous current	1.5A
Packaging Details	50pcs per carton or as request	Model number	BLS-4235I
shaft diameter	3.175mm, 4mm or customize	Model Number	BLS-4235
Motor size	∮42*L35（mm）	Supply Ability	100000pcs per month
Certification	CE ROHS	Free load speed	5200rpm
Brand Name	SECORE	Payment Terms	T/T, D/A
Speed rated	3800rpm	Type	micro bldc motor, 12 volt brushless dc motor
Price	Negotiated The Price	Delivery Time	10-12 working days
Minimum Order Quantity	200	Rated Torque	600g.cm or as request

24V Valve Bldc Motor OD42mm 5000rpm 4800rpm Wholesale Brushless Dc Motor 4235

Features of Brushless DC inner rotor Motor BLS-4235:

PWM speed adjust

FG output

Lock detect protection

Over current protection

Standby mode

Internal UVLO and thermal shutdown circuitry

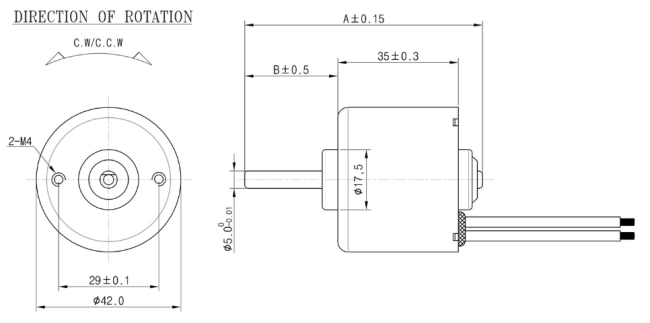

Dimension of the brushless motor:

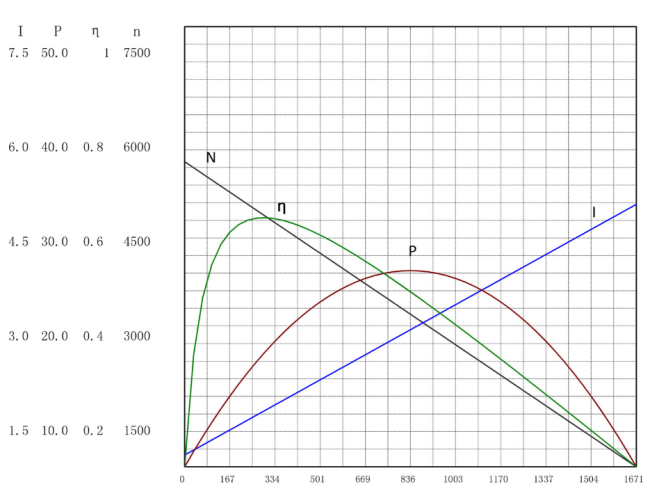

Performance curve:

Electric Pin Connection Terminations:

NO.	SIGNAL	I/O	SPECIFICATIONS	NOTE
1	GND	IN	Power Ground	Power Ground
2	VCC	IN	DC 5-26V	POWER +
3	1FG
	Output Voltage Range	OUT	0-6V	Hall Signal Pulse Outputs
	VOH		6.0V Max.
	VOL		0.5V Max
	FG Signal Current		2mA
	Pulse Outputs of Rotation		3 Pulse/cycle
4	PWM PWM Control, 60K MAX Typical (20K)
	PWM PWM Control, 60K MAX Typical (20K)
	Input Voltage Range	IN	0~5v	High---motor OFF Low---motor ON
	Input High Voltage		≥2.0V.or open --HIGH
	Input Low Voltage		≤0.5V --LOW
5	FR CW/CCW
	CW/CCW Control
	Input Voltage Range	IN	0-5V	High---motor default turn Low---motor another turn
	Input High Voltage		≥2.0V.or open --HIGH
	Input Low Voltage		≤0.5V --LOW

Customization

1. Voltage, current, speed and torque.

2. Shape of shaft: "D" "Round" "Flat" "Hexagon Axis" "Square axis", shaft dimension

3. Bearing: ball bearing, oil bearing

4. Materials of shell: plastic metal etc

6. Optional equip with reducer, braker, encoder, controller, gearhead, driver etc

Application

24V Valve Bldc Motor OD42mm 5000rpm 4800rpm Brushless Dc Motor 4235
