| Price | Negotiated The Price |
| MOQ | 200 |
| Delivery Time | 10-12 working days |
| Brand | SECORE |
| Place of Origin | Shenzhen |
| Certification | ISO9001 |
| Model Number | BLS-3650 |
| Packaging Details | 500pcs per carton or as request |
| Payment Terms | T/T, D/A |
| Supply Ability | 100000pcs per month |
| Place of Origin | Shenzhen | Commutation | Electronic commutating / bldc |
| Typical application | kitchen appliances, 5G base station | Packaging Details | 500pcs per carton or as request |
| Item number | BLS-3650 | shaft diameter | 3.175mm, 4mm or customize |
| Model Number | BLS-3650 | Motor size | OD36*L50（mm） |
| Supply Ability | 100000pcs per month | Certification | ISO9001 |
| Free load speed | 3400rpm | Brand Name | SECORE |
| Payment Terms | T/T, D/A | Speed Rated | 3000rpm |
| Rated current | 0.6A | Type | miniature brushless motor, 36mm dc motor |
| Price | Negotiated The Price | Delivery Time | 10-12 working days |
| Minimum Order Quantity | 200 | Rated Torque | 200gf.cm |
3625 3630 3640 3650 3657 High Speed Pump Bldc Motor Micro Dc Motor Optional Equip With Planetary Gearbox Worm Gearhead
36mm multiple lengths 12v 24v micro waterproof brushless dc motor
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | ||||
| SPEED RPM |
CURRENT A |
SPEED RPM |
TORQUE gf.cm |
CURRENT A |
TORQUE gf.cm |
CURRENT A |
||
| BLS-3650I | 12 | 3400 | 0.16 | 2970 | 200 | 0.6 | 1520 | 3.5 |

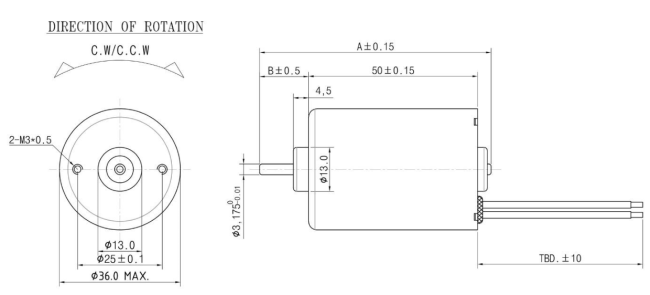

Dimension of the brushless motor:

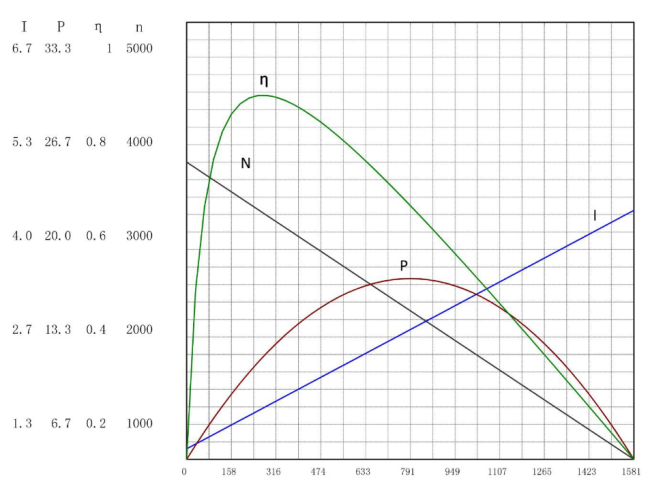

Performance curve:

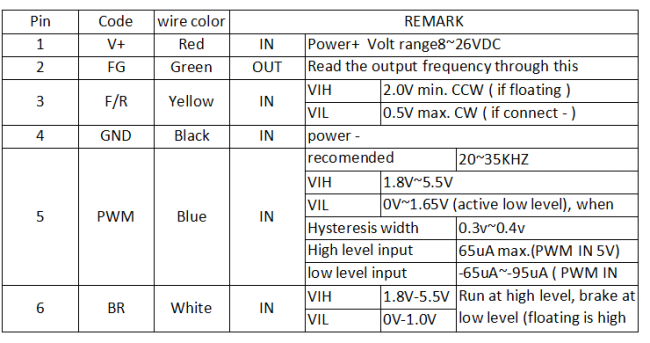

Electric Specification of Motor terminations:
Typical Application:
Robots, communication equipment, Office automation equipments, Automotive parts, Smart wearable devices, Household application, Precision instruments, Personal care, Consumer electronics Toys and models, Medical equipments, Industrials, Electric power tools etc.
