| Price | Negotiated The Price |
| MOQ | 100 |
| Delivery Time | 10-12 working days |
| Brand | SECORE |
| Place of Origin | China,Guangdong |
| Certification | CE ROHS |
| Model Number | BLS-57100 |
| Packaging Details | 20pcs per carton or as request |
| Payment Terms | T/T, D/A |
| Supply Ability | 100000pcs per month |
| Place of Origin | China,Guangdong | Continuous current | 1.9A |
| stalling torque | 3200g.cm | Packaging Details | 20pcs per carton or as request |
| Rated speed | 3050rpm | Model Number | BLS-57100 |
| Supply Ability | 100000pcs per month | Certification | CE ROHS |
| Motor dimensions | 57-100mm ( diameter * length) | Brand Name | SECORE |
| Payment Terms | T/T, D/A | Price | Negotiated The Price |
| Delivery Time | 10-12 working days | Product name | mower bldc motor, 57mm high torque brushless motor |
| Minimum Order Quantity | 100 | Rated Torque | 400g.cm |
| Application | medical equipment, lawn mower, diaphragm pump, automation device | No load Speed | 3500rpm |
12V External Drive Medical Equipment Brushless Motor 57mm BLDC Lawn Mower Motor
DC Brushless inner rotor Motors :
Size: diameter 56.5*100mm length
Outside driver
Power: 11W ( External driver )
| Model # | RATED Voltage | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||
| SPEED | CURRENT | SPEED | TORQUE | CURRENT | Out. Power | TORQUE | CURRENT | ||
| VDC | ±10% r/min | mA | ±10% r/min | g.cm | mA | W | g.cm | A | |
| BLS-56100-12 | 12 | 3500 | 600 | 3050 | 400 | 1900 | 12.5 | 3200 | 4.5 |
| BLS-56100-24 | 24 | 3500 | 300 | 3050 | 400 | 1000 | 12.5 | 3200 | 4.5 |

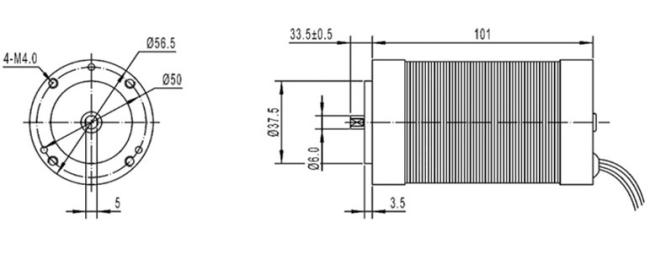

Motor dimensions

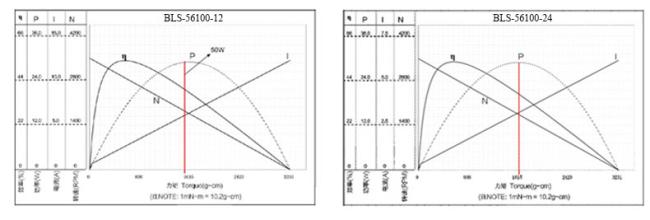

Performance curve
Brushless motor basics
BLDC motors overcome the need for a mechanical commutator by reversing the motor setup; the windings become the stator and the permanent magnets become part of the rotor. The stator typically consists of steel laminations, slotted axially to accommodate an even number of windings along their inner perimeter. The rotor consists of a shaft and a hub with permanent magnets arranged in two to eight pole pairs alternating between "N" and "S". Because the windings are fixed, a permanent connection can be made to power them. In order for the stationary windings to move the permanent magnets, the windings need to be energized (or commutated) in a controlled sequence to generate a rotating magnetic field.
