| Price | Negotiated The Price |
| MOQ | 500 |
| Delivery Time | 10-12 working days |
| Brand | SECORE |
| Place of Origin | Shenzhen |
| Certification | CE ROHS |
| Model Number | BLS-4260 |
| Packaging Details | 500pcs per carton or as request |
| Payment Terms | T/T, D/A |
| Supply Ability | 100000pcs per month |
| stall torque | 1500gf.cm | Place of Origin | Shenzhen |
| Typical application | air pump, diaphragm pump, automation device, fan | Continuous current | 2.5A |
| Packaging Details | 500pcs per carton or as request | Rated speed | 3400rpm |
| Model Number | BLS-4260 | Motor size | ∮42*60 length（mm） |
| Supply Ability | 100000pcs per month | Certification | CE ROHS |
| Brand Name | SECORE | Payment Terms | T/T, D/A |
| Price | Negotiated The Price | Delivery Time | 10-12 working days |
| Product name | Brushless motor, electric commutated motor | Minimum Order Quantity | 500 |
| Rated Torque | 500gf.cm | No load Speed | 5000rpm |

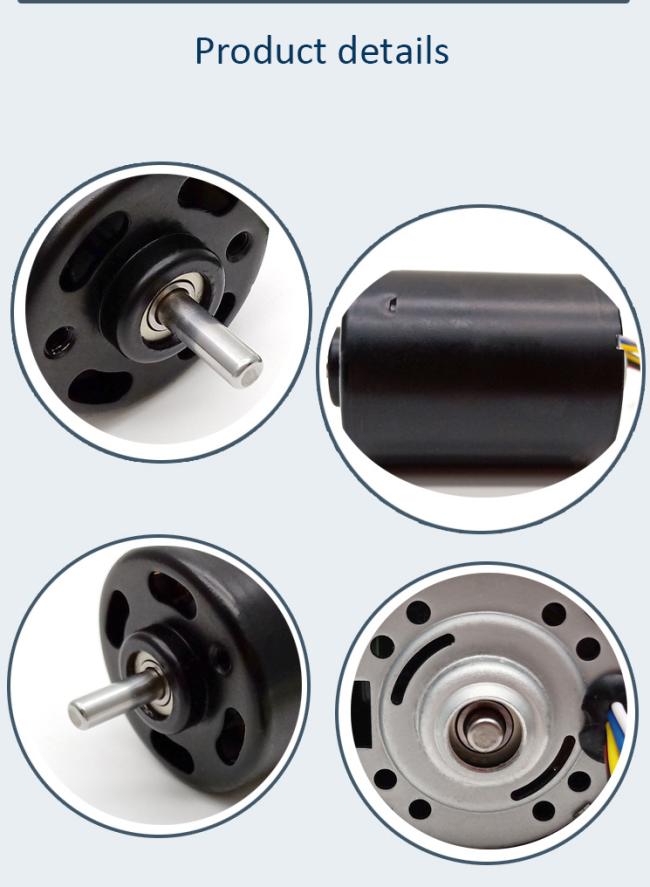

4260 Built-In Driver Brushless Motor With Ball Bearing Long Life EC Motor
DC Brushless ( BLDC ) Motors:
Size: diameter 42*60mm length
Built-in driver
PWM pulse wide speed range
FG speed feedback signal
Low EMC,Low noise
Power: 17W ( internal driver )

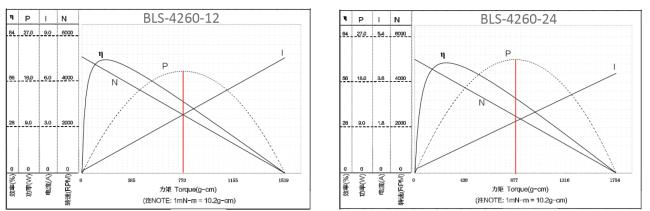

| Model # | RATED Voltage | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||
| SPEED | CURRENT | SPEED | TORQUE | CURRENT | Out. Power | TORQUE | CURRENT | ||
| VDC | ±10% r/min | mA | ±10% r/min | g.cm | mA | W | g.cm | A | |
| BLS-4260-12 | 12 | 5000 | 300 | 3400 | 500 | 2500 | 17 | 1500 | 4 |
| BLS-4260-24 | 24 | 5000 | 140 | 3550 | 500 | 1300 | 18 | 1700 | 4 |

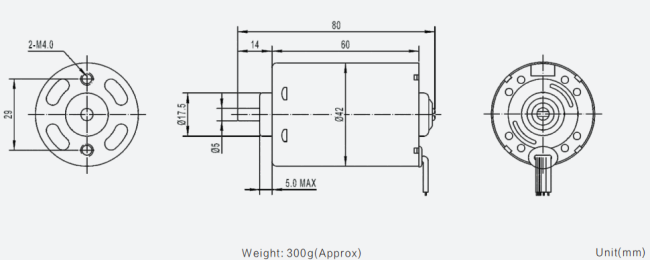

Motor dimensions
The electronic commutation of Brushless motors demands precise control, more complexity and hihger cost to the motor’s circuitry. However, the returns in efficiency such as reduced power, space, reliability, and weight savings of the final product more than offset these drawbacks. Further, a wide range of proven, integrated brushless motor drivers significantly eases the design process while adding flexibility for the designer to fine-tune a design for a specific application.
