| Price | Negotiated The Price |
| MOQ | 500 |
| Delivery Time | 15-20 working days |
| Brand | SECORE |
| Place of Origin | Dongguan |
| Certification | CE ROHS |
| Model Number | SC-N20 |
| Packaging Details | 500pcs per carton or as request |
| Payment Terms | T/T, D/A |
| Supply Ability | 100000pcs per month |
| Speed | 14RPM | Place of Origin | Dongguan |

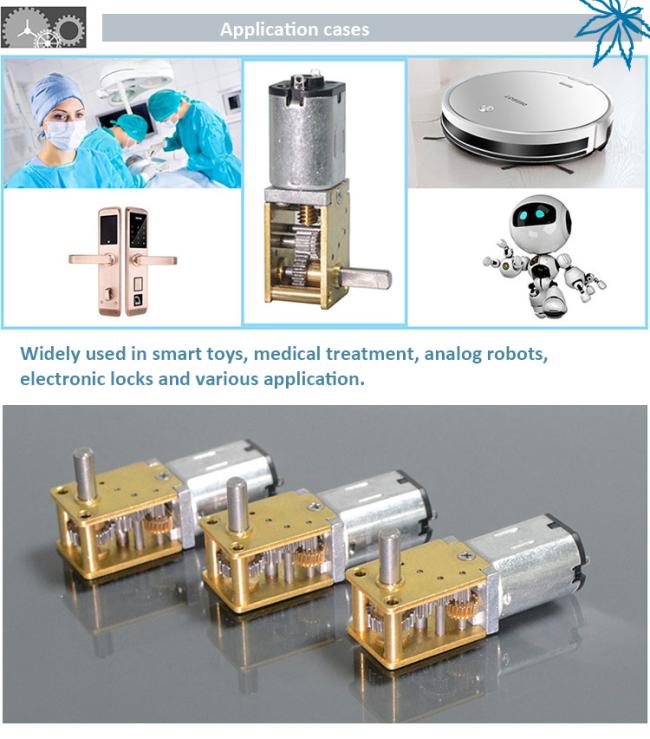

| motor sizes | 12*10mm | Typical application | smart robot, door lock |
| product nam20rpm gear motor, 60rpm bldc worm gear motore | 14rpm worm gear motor | Packaging Details | 500pcs per carton or as request |
| motor type | tiny worm gear reduce motor | Model Number | SC-N20 |
| Supply Ability | 100000pcs per month | Certification | CE ROHS |
| Brand Name | SECORE | Payment Terms | T/T, D/A |
| Price | Negotiated The Price | Delivery Time | 15-20 working days |
| Rated voltage | 12V | gear box dimension | 12*18mm |
| Minimum Order Quantity | 500 | Rated Torque | 975gf.cm |

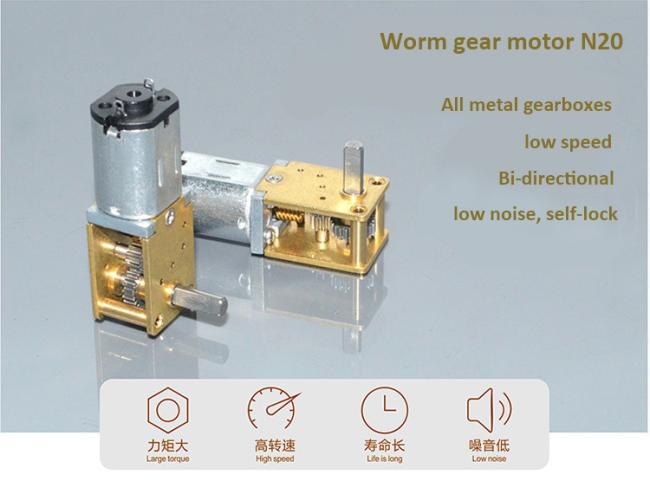

Micro 1012 All Metal Gearbox Motor, 12V Mini Right Angle Door Lock Motor
Secore Motor provides customized service of below technical parameters:
Diameter: 12mm
Voltage: 12V
Output power: 1.053W
Output speed: 14-333rpm
Gear ratio: 42-1016
Output torque: 71-975gf.cm
| VOLTAGE | GEAR RATIO | no-load Speed | no-load current | rated current | rated Speed | rated torque | output power | starting voltage | stall current | stall Torque |
| RPM | mA | mA | RPM | gf.cm | W | V | mA | gf.cm | ||
| 12V | 42 | 381 | 30 | 85 | 333 | 71 | 1.02 | 0.5 | 700 | 235 |
| 12V | 118 | 136 | 30 | 85 | 119 | 142 | 1.02 | 0.5 | 700 | 472 |
| 12V | 236 | 68 | 30 | 85 | 59 | 283 | 1.02 | 0.5 | 700 | 944 |
| 12V | 302 | 53 | 30 | 85 | 46 | 362 | 1.02 | 0.5 | 700 | 1208 |
| 12V | 603 | 27 | 30 | 85 | 23 | 579 | 1.02 | 0.5 | 700 | 1929 |
| 12V | 1016 | 16 | 30 | 85 | 14 | 975 | 1.02 | 0.5 | 700 | 3251 |

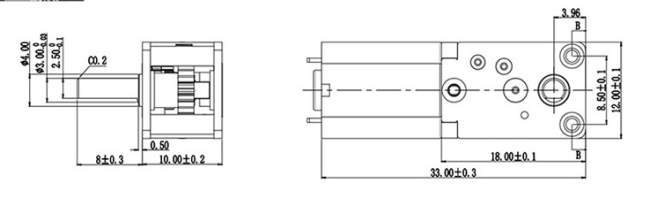

Motor mounting sizes and shafts options:
