4.4A 260rpm Dual Shaft Gear Motor High Torque For PTZ Camera

Price	Negotiated The Price
MOQ	100
Delivery Time	10-12 working days
Brand	SECORE
Place of Origin	Shenzhen
Certification	ISO9001
Model Number	SC3157-5840WG
Packaging Details	100pcs per carton or as request
Payment Terms	T/T, D/A
Supply Ability	100000pcs per month

Product Details

Product Specification

continuous current	1.6A	Place of Origin	Shenzhen
No-load current	0.2A	Typical application	motorized curtain, Electric curtain
Packaging Details	100pcs per carton or as request	No-load speed	260rpm
Model Number	SC3157-5840WG	Supply Ability	100000pcs per month
Certification	ISO9001	commutation	brush
Brand Name	SECORE	Payment Terms	T/T, D/A
Loaded Speed	200rpm	Rated torque	6.2kg.cm
loaded current	1.6A	Stall current	4.4A
Price	Negotiated The Price	Delivery Time	10-12 working days
Product Type	Worm Gear motor, dc brush reducer motor	Rated voltage	24V
Minimum Order Quantity	100	Stall torque	18kg.cm

Product Description

Dual Shaft Self-Lock Gear Reduce Motor 5840, High Torque Gear Motor For PTZ Camera

Main features:

Motor type: 24V dc turbo worm gear motor
Diameter of Gearbox: 58mm*40mm *27mm

DC 24.0V 8000rpm Worm gear motor, max 35W
Reducer	Ratio	1:i	1:17	1:36	1:54	1:72	1:108	1:212	1:280	1:590
Reducer	Size L	mm	L58W40H27
No Load	Speed	rpm	470	222	148	111	74	38	28	15
No Load	Current	A	≤0.25	≤0.25	≤0.25	≤0.25	≤0.25	≤0.25	≤0.25	≤0.25
Rated load	Speed	rpm	370	174	116	87	58	29	22	12
	Torque	Kgf.cm	4	8	12	16	25	50	50	70
	Current	A	≤1.2	≤1.2	≤1.2	≤1.2	≤1.2	≤1.2	≤1.2	≤1.2
Stall	Torque	Kgf.cm	18	38	no more than 40kg.cm
Stall	Current	A	4.4	4.4	4.4	4.4	4.4	4.4	4.4	4.4

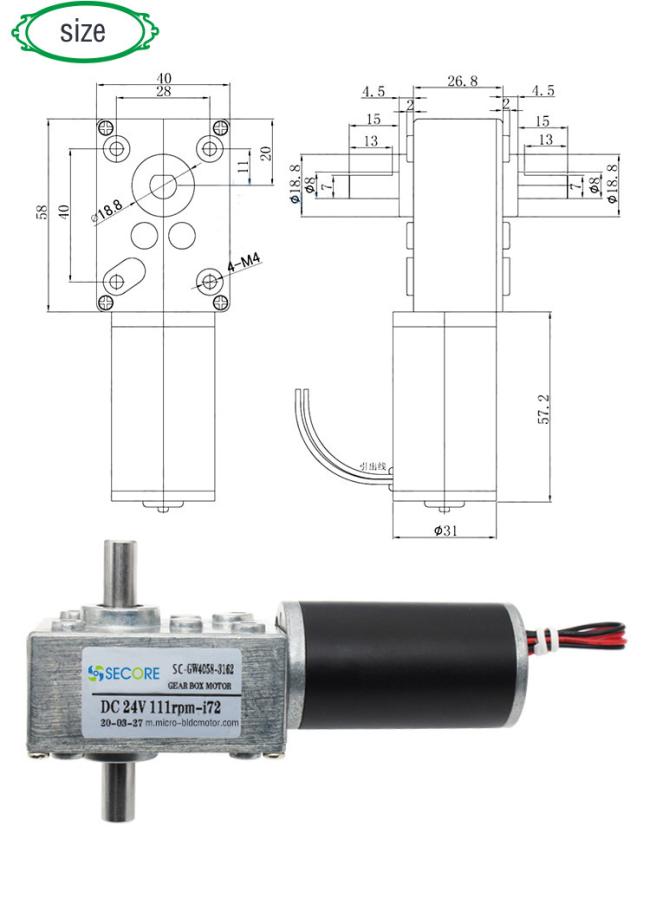

Gear motor dimensions:

Explanation of motor related parameters:

1. No-load speed: the speed at which the motor is normally energized and without load. (Unit: rpm or revolution/minute or r/min)

2. No-load current: the current when the motor is normally energized without load. (Unit: mA mA)

3. Load Torque: the rated torque during the motor load test, which is only used for test reference; (unit: g-cm grams per centimeter or kg-cm kg per centimeter)

4. Load speed: the speed of the motor under load torque. (Unit: rpm or revolution/minute or r/min)

5. Load current: the current of the motor under load torque. (Unit: mA milliampere or A amp)

6. Locked-rotor torque: also called starting torque, which is the maximum torque standard that the motor can withstand. If the torque is exceeded, the motor will stop or lock

(Unit: g-cm grams per centimeter or kg-cm kilograms per centimeter)

7. Locked-rotor current: also called starting current, which is the maximum current when the motor is blocked and stopped; (unit: mA or A)
