| Price | Negotiated The Price |
| MOQ | 100 |
| Delivery Time | 9-12 working days |
| Brand | SECORE |
| Place of Origin | China |
| Certification | CE ROHS |
| Model Number | DC201518 |
| Packaging Details | 500pcs per carton or as request |
| Payment Terms | T/T, D/A |
| Supply Ability | 100000pcs per month |
| Speed | 28600rpm or customized | Place of Origin | China |
| Commutation | Brush | Customized shaft | D-Cut, Screw, round Trape, I-Cut type etc |
| Packaging Details | 500pcs per carton or as request | Model number | DC201518 |
| Model Number | DC201518 | Supply Ability | 100000pcs per month |
| Certification | CE ROHS | Operating voltage | 3.7V constant |
| Brand Name | SECORE | Payment Terms | T/T, D/A |
| Price | Negotiated The Price | Delivery Time | 9-12 working days |
| Measured Dimension | 20*15*18mm | Minimum Order Quantity | 100 |
| Rated Torque | 2.925 mN.m | Application | RC Model, mini car, toy |
Small Nd-Fe-B Magnet RC Model Motor, Mini Car Toy Brush Motor
LV permanent magnet DC motor applies for RC Model, mini car toy, CD players, sex toys, personal care, beauty equipment, health products, toys, model aircraft
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | ||||||||
| OPERATING RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | |||
| r/min | A | r/min | A | mN.m | g.cm | W | mN.m | g.cm | A | |||
| DC201518 | 3.0-7.2 | 3.7V Constant | 34000 | 0.87 | 28600 | 4.49 | 2.925 | 29.847 | 8.74 | 9.184 | 93.714 | 12.28 |

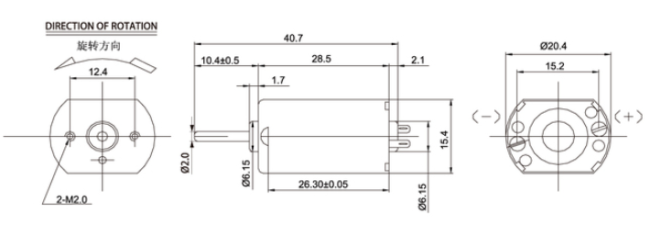

Appearance dimensions:

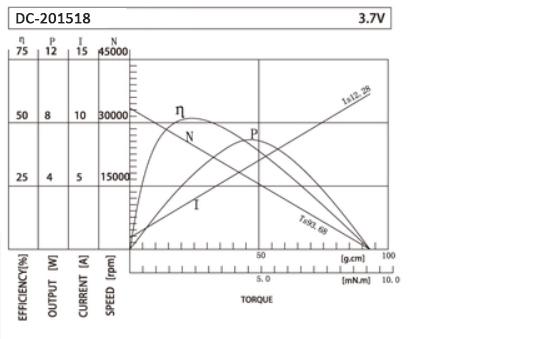

Motor performance curve ( T-N-I curve ):
