| Price | Negotiated The Price |
| MOQ | 500 |
| Delivery Time | 10-12 working days |
| Brand | SECORE |
| Place of Origin | China,Guangdong |
| Certification | CE ROHS |
| Model Number | DC1011 |
| Packaging Details | 500pcs per carton or as request |
| Payment Terms | T/T, D/A |
| Supply Ability | 100000pcs per month |
| Speed | 10000rpm 20000rpm or customized | Torque | 1.2-1.8g.cm |
| Place of Origin | China,Guangdong | Commutation | mechanical commutation, carbon brush |
| Packaging Details | 500pcs per carton or as request | Dimension | 11.5*8*10mm |
| Model Number | DC1011 | Supply Ability | 100000pcs per month |
| Certification | CE ROHS | Brand Name | SECORE |
| Payment Terms | T/T, D/A | Shaft diameter | ø1.0mm |
| Price | Negotiated The Price | Delivery Time | 10-12 working days |
| Efficiency | IE 2 | Rated voltage | 1.5V 3V 5V |
| Minimum Order Quantity | 500 | Model | DC1016 |
| Protection | Explosion Proof, water proof, drip-proof | Application | aircraft model, door lock, Camcorder, MD Player, Camera |
Mechanical commutated Mini 1.5V 3V 5V Aircraft Motor, Four Axis Aircraft Toy Motor with Precious Metal
LV permanent magnet DC motor applies for personal care, beauty equipment, breast pump, health products, toys, model aircraft
Motor characteristic cases:
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | ||||||||
| OPERATING RANGE |
RATED | SPEED | CURRENT | SPEED | CURRENT | TORQUE | TORQUE | OUTPUT | TORQUE | TORQUE | CURRENT | |
| r/min | A | r/min | A | mN.m | g.cm | W | mN.m | g.cm | A | |||
| DC1016-01 | 1.2-2.0 | 1.5 | 13900 | 0.063 | 10000 | 0.166 | 0.1 | 1.2 | 0.125 | 0.42 | 4.3 | 0.43 |
| DC1016-02 | 1.5-3.5 | 3.0 | 20400 | 0.05 | 14900 | 0.14 | 0.1 | 1.2 | 0.18 | 0.43 | 4.4 | 0.38 |
| DC1016-03 | 1.5-5.5 | 5.0 | 27400 | 0.05 | 20000 | 0.14 | 0.18 | 1.8 | 0.365 | 0.65 | 6.6 | 0.38 |

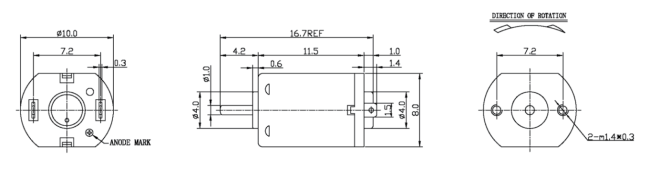

Appearance dimensions:

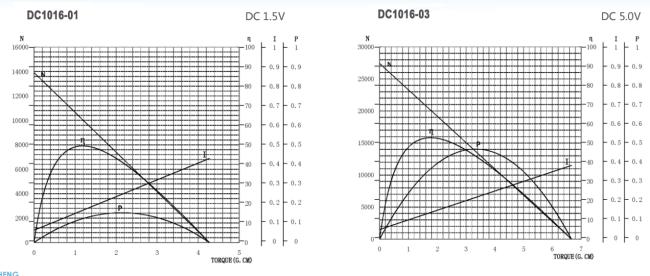

Motor performance curve ( T-N-I curve ):
Working principle of brushed DC Motor:
The stator of the brushed DC motor is equipped with fixed main poles ( permanent magnets) and brushes, the armature windings and commutators are installed on the rotor. The electrical energy of the DC power supply enters the armature winding through the carbon brushes and the commutator to generate an armature current. The magnetic field generated by the armature current interacts with the main magnetic field to generate electromagnetic torque, which makes the motor rotate to drive the load.
