| Price | Negotiated The Price |
| MOQ | 100 |
| Delivery Time | 10-12 working days |
| Brand | SECORE |
| Place of Origin | Guangdong |
| Certification | CE ROHS |
| Model Number | DC58111-WG |
| Packaging Details | 100pcs per carton or as request |
| Payment Terms | T/T, D/A |
| Supply Ability | 100000pcs per month |
| continuous current | 1500mA | Place of Origin | Guangdong |
| Typical application | intelligent lock, electric carbinet, door lock, smart lock | motor dimension | 58mm *111mm |
| Packaging Details | 100pcs per carton or as request | Model Number | DC58111-WG |
| Supply Ability | 100000pcs per month | Certification | CE ROHS |
| commutation | brush | voltage | 8V |
| Brand Name | SECORE | Payment Terms | T/T, D/A |
| Rated torque | 4.4 kgf.cm | Type | Gear motor, brush dc worm gear motor |
| Price | Negotiated The Price | Delivery Time | 10-12 working days |
| Rated Speed | 65rpm | Minimum Order Quantity | 100 |
8V Brush Dc Worm Gear Motor 4.4 kgf.cm, Intelligent Lock Worm Gearbox 58mm Motor
Main features:
Motor type: Brush commutated DC gear motor
Gearbox type: worm gearbox
Diameter of Gearbox: 58mm*65mm L; DC motor: 45mm L
| No load | load | stall | |||||||
| Model number | Rated voltage | current (mA) | speed (rpm) | current (mA) | speed (rpm) | torque kgf.cm | output power W | Torque kgf.cm | Current mA |
| DC58111-8-87 | 8 | ≤250 | 80 | ≤1500 | 65 | 4.4 | 2.8 | ≥25 | ≤8000 |
| DC58111-8-100 | 8 | ≤250 | 70 | ≤1500 | 56 | 5 | 2.3 | ≥25 | ≤8000 |

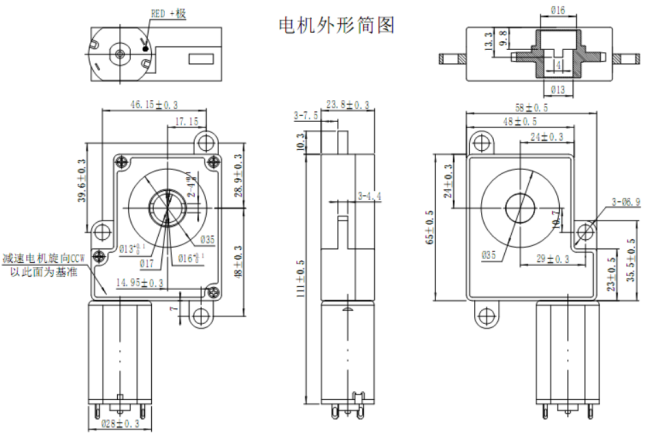

Gear motor dimensions:
Provide motor size, lead requirement, working voltage, no-load conversion, no-load current, load, stall current, etc, TO TAILOR YOUR MOTOR.
Motor solution in Areas of expertise:
| telescopic rod motor | AI Motor | Robotic arm motor |
| massage chair motor | curtain motor | medical robot motor |
| Embossing machine motor | slow juicer motor | roll door motor |
| printing machine motor | robot cleaner motor | slide door motor |
| oven gear motor | door motor | PTZ camera motor |
