| Price | Negotiated The Price |
| MOQ | 100 |
| Delivery Time | 15-18 working days |
| Brand | SECORE |
| Place of Origin | China |
| Certification | CE ROHS |
| Model Number | BLD3657 |
| Packaging Details | 100pcs per carton or as request |
| Payment Terms | T/T, D/A |
| Supply Ability | 100000pcs per month |
| Speed | 1~999rpm as request | Usage | vending machine, ATM, Projector, juicer, fan, venlitator |
| Place of Origin | China | color | customizable |
| Motor type | brushless fan motor, brushless planetary gear motor | Packaging Details | 100pcs per carton or as request |
| Model Number | BLD3657 | Supply Ability | 100000pcs per month |
| Certification | CE ROHS | Rated Voltage | 24Volt 12volt |
| commutation | brushless dc gear motor | Brand Name | SECORE |
| Payment Terms | T/T, D/A | gearbox diameter | 36 |
| Price | Negotiated The Price | Delivery Time | 15-18 working days |
| permissible Torque | rated upto 3N.m continuous running | Minimum Order Quantity | 100 |
Lawn Mower Cylindrical Brushless DC Planetary Gear Motor With Internal External Driver
| Motor type | Brushless DC motor |
| Gearbox type | Planetary |
| Pole | 4 |
| Phase | 3 |

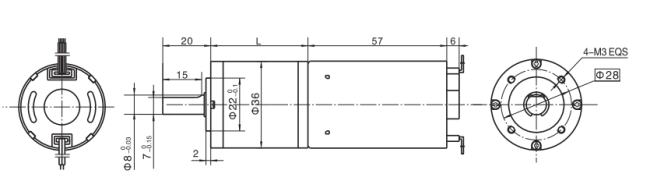

| Diameter | Gearbox:36mm; DC motor: 36mm |
| Nominal voltage | 12V/24V DC or customized |
| Gear ratio | 1:3.7 ~1: 189 |
| No load speed | 5000rpm |
| Nominal speed | 4200rpm |
| Permissible load range | 0.3N.m ~ 3N.m for S1 duty cycle |
| Driver | Built-in driver |
| Rated power | 18W |
| Model | Number of Poles | Number of phase | Rated voltage | No-load speed | Rated speed | Rated torque | Rated Power | started torque |
| # | # | V DC | r/min | r/min | mN.m | W | mN.m | |
| BLD3657-2450 | 4 | 3 | 24 | 5000 | 4200 | 40 | 18 | 257 |
| Reduction ratio | 3.7 | 5.2 | 14 | 19 | 27 | 51 | 71 | 100 | 139 | 189 |
| Number of gear trains | 1 | 1 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 4 |
| Length mm | 26.5 | 26.5 | 33.6 | 33.6 | 33.6 | 40.5 | 40.5 | 40.5 | 40.5 | 47.4 |
| No-load speed rpm | 1348 | 965 | 357 | 263 | 185 | 98 | 70 | 50 | 36 | 26 |
| Rated speed rpm | 1132 | 811 | 300 | 221 | 156 | 82 | 59 | 42 | 30 | 22 |
| Rated torque N.m | 0.13 | 0.19 | 0.45 | 0.62 | 0.87 | 1.5 | 2.1 | 2.9 | 3 | 3 |
| Max permissible load in a short time N.m | 1 | 1 | 3.5 | 3.5 | 3.5 | 7.5 | 7.5 | 7.5 | 7.5 | 9 |
| Phase V + | Phase W - | Reversing | Speed control | Braking | +5V output | Pulse Output |
| Red | Black | Brown | Orange | White | Green |
Blue |
Typical Application:
-Motors for Office apparatus and medical devices
• Printer, Copier, Projector, Shredder, fax ( paper cutter ), computer peripheral, lifting socket etc.
• breath machine, medical cleaning pump, medical ventilator, medical bed, dental instrument, surgical robot etc
- Motors for Power tool and fitness equipment
• Electric screwdriver, Electric hydraulic pliers, Electric scissors,
• Fascia gun, massage chair, treadmill
-Motors for Household appliances and personal care
• Air purifier, smart toilet, hair dryer, hair curler, tooth brush, vibration, rubdown machine, foot grinder, facial beauty equipment, eyebrow tweezer, electric threading knife
• Blender, sweeper, window cleaner, small household appliances
