| Price | USD20000-USD300000 |
| MOQ | 1set |
| Delivery Time | 60-90days |
| Brand | JingSu ShengMan |
| Place of Origin | China |
| Certification | CE and ISO9001 |
| Model Number | GSL |
| Packaging Details | Plywood Cases |
| Payment Terms | L/C, T/T |
| Supply Ability | 10sets |
| Condition | New | Place of Origin | China |
| Warranty | 1 year | Machine Type | Granulator |
| Packaging Details | Plywood Cases | Standard | GMP |
| Material | stainless steel | Model Number | GSL |
| Supply Ability | 10sets | Certification | CE and ISO9001 |
| power of fan | 4-22 kw | Brand Name | JingSu ShengMan |
| Payment Terms | L/C, T/T | application | pharmaceutical, food, chemical |
| Price | USD20000-USD300000 | Delivery Time | 60-90days |
| Heating System | Steam,Electronic,oil | Minimum Order Quantity | 1set |
| Voltage | Customized | dimension | requirement from customer |
Stainless Steel Laboratory High- speed high shear mixer granulator machine for pharmaceuticals, foodstuff and chemical
WORK PRINCIPLE
The blending and granulating procedures and completed in the same vessel of the granulator. Powdery materials in the stationary conic vessel remain in a semi-flowing and rolling state owing to the agitation by a blending paddle, and are fully mixed. After pouring in adhesives ,the powdery materials gradually change into fine, damp granules turn moist and their shapes begin paddle and the inside wall of vessel, powdery materials turn into loose, soft materials. Through the action of granule shaping paddle, the soft materials gradually change into fine, damp granules with the same size.
Technical Parameters
| ITEM | GHL-10 | GHL-50 | GHL-150 | GHL-200 | GHL-250 | GHL-300 |
| VOLUME(L) | 10 | 50 | 150 | 200 | 250 | 300 |
| CAPACITY (kg/batch) | 3 | 15 | 50 | 80 | 100 | 130 |
| STIR SPEED (rpm) | 300/600 | 300/210 | 270/180 | 270/180 | 188/130 | 160/110 |
| STIR POWER (kw) | 1.5/2.2 | 4/5.5 | 9/11 | 11/14 | 11/14 | 11/14 |
| CUT POWER (kw) | 0.85/1.1 | 1.5/2.2 | 2.4/3 | 3.3/4 | 3.3/4 | 4.5/5.5 |
| CUT SPEED (rpm) | 1500/3000 | |||||
| WOR TIME (min) | 8-15 | |||||
| GRANULE SIZE(mesh) | 20-80 | |||||
Note: because the raw material exist in difference, the output in the table is for reference only.
FEATURES
1. Pneumatic bollercover automatic lift, easy close and operation.
2. Conic chamber, materials rolling evenly.
3. Open window and easy operation.
4. Touching screen with dynamic work image and vivid in operation.
5. 45-degree discharging outlet, the granules are completely discharged.
6. V-shaped granulating blade works in inclusion motion, and will keep the materials from entering the gap between V-shaped granulating blades and blades to become a corner, so it can mix evenly.
7. Interlayer jacket cooling and automatic temperature control can improve the quality of granules.

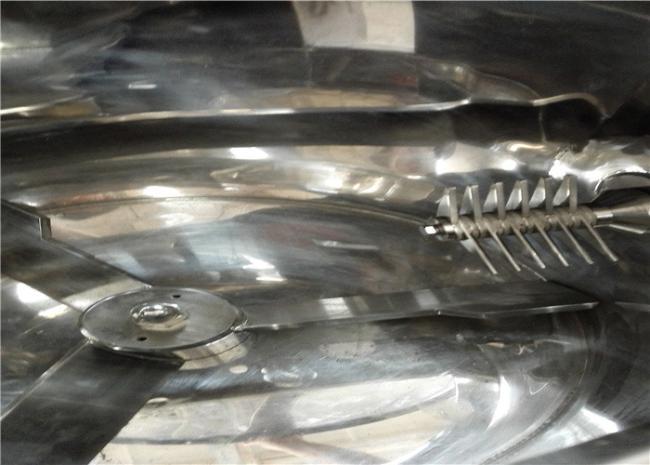

8. 36-degree Zigzag mixing paddles work in three-dimensional motion. The distance between the mixing paddles and the surface of boiler button is0.5 – 1.5mm, so it can mix evenly. There are few residues left on the boiler wall, so it can reduce friction and save 25% energy.
9. It is of labyrinth sealing construction. The rotary axel cavity can automatically spray and clean, featuring reliability in sealing and ease in cleaning.
