| Price | USD20000-USD300000 |
| MOQ | 1set |
| Delivery Time | 60-90days |
| Brand | JingSu ShengMan |
| Place of Origin | China |
| Certification | CE and ISO9001 |
| Model Number | XSG |
| Packaging Details | Plywood Cases |
| Payment Terms | L/C, T/T |
| Supply Ability | 10sets |
| Condition | New | Place of Origin | China |
| Warranty | 1 year | Packaging Details | Plywood Cases |
| Material | stainless steel | Barrel diameter | 200-1600mm |
| Model Number | XSG | water evaporation | 10-2000 |
| Supply Ability | 10sets | Certification | CE and ISO9001 |
| Weight | Customized | Brand Name | JingSu ShengMan |
| Payment Terms | L/C, T/T | Type | Flash dryer |
| Price | USD20000-USD300000 | Delivery Time | 60-90days |
| Capacity | 5-500kg/h | Minimum Order Quantity | 1set |
| Voltage | 220V/380V | power | 5-135kw |

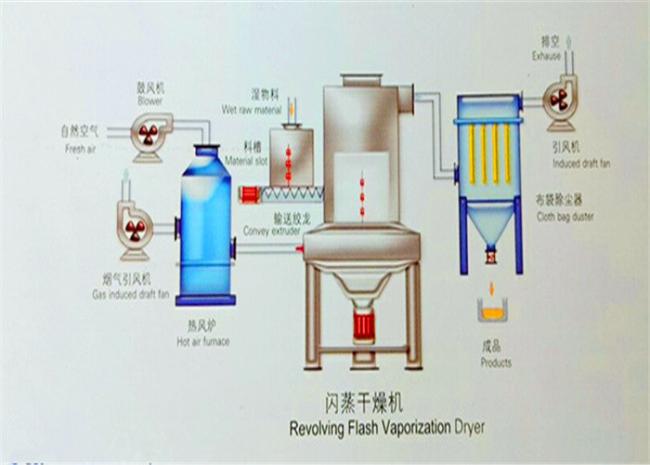

XSG Stand Type Infrared Flash Dryer Drying Machine for White Carbon Black
Overview
1.
XSG
Series
Spin
Flash
Dryer
is
designed
for
continuously
drying
powder,
filter
cake
and
paste
wet
materials
2.
Drying
chamber
diameter:
400-1600mm
3.
Evaporation
capacity:
60-1000kg/h
4.
Heat
supply
can
be
steam,electricity,
hot
oil,
oil/gas/coal/biomass
fired
hot
air
generator.
Technical parameters
| type | Barrel diameter mm | main machine dimension mm | main machine power kw | treatment wind capacity m/h | water evaporation quantity kg/h |
| XSG-2 | 200 | 250*2800 | 5-9 | 300-800 | 10-20 |
| XSG-3 | 300 | 400*3300 | 8-15 | 600-1500 | 20-50 |
| XSG-5 | 500 | 600*4000 | 12-24 | 1500-4000 | 30-100 |
| XSG-6 | 600 | 700*4200 | 20-29 | 2500-5000 | 40-200 |
| XSG-8 | 800 | 900*4600 | 24-35 | 3000-8000 | 60-600 |
| XSG-10 | 1000 | 1100*5000 | 40-62 | 5000-12500 | 100-1000 |
| XSG-12 | 1200 | 1300*5200 | 50-89 | 10000-20000 | 150-1300 |
| XSG-14 | 1400 | 1500*5400 | 60-105 | 14000-27000 | 200-1600 |
| XSG-16 | 1600 | 1700*6000 | 70-135 | 18700-36000 | 250-2000 |
Application
SXG
rotating
flash
drying
machine
is
applicable
to
dry
viscous,
thixotropic,
thermosensitive
powdery
and
granular
materials
in
the
dyes,
pigment,
chemical,
ceramics,
food
and
pharmaceutical
industry.
The
appropriate
materials
can
be
dried
by
this
drying
equipment
include:
1.
Inorganic
materials:
boric
acid,
calcium
carbonate,
hydroxide,
copper
sulfate,
ferric
oxide,
barium
carbonate,
antimony
trioxide,
metal
hydroxide,
heavy
metallic
salt
and
compound
cryolite.
2.
Organic
materials:
atrazine,
lauric
acid,
benzoic
acid,
sodium
oxalate,
cellulose
acetate
3.
Ceramics:
kaolin,
silica
and
calay
4.
Dyes:
anthraquinone,
black
iron
oxide,
butyrate,
titanium
hydroxide,
zinc
sulfide,
azo
dyes
5.
Food:
soy
protein,
gelatinized
starch,
vinasse,
triticin,
wheat
starch
6.
Pharmaceuticals:
analgin
(The
first
domestic
application
of
flash
dryer)
1) Very short drying time: Completely crushed and dispersed wet material can expose maximum surface to hot air.So the drying time is very short, only takes 1-5 seconds.
2) Dust free working condition: The whole system is wokring under negetive pressure condition which can make a dust free drying plant.
3) Suitable for drying heat sensitive material: Because of short drying time and fast evaporation rate, heat sensitive materials can be dried under very high temperature.
4) Huge capacity in small machine: fast drying and compact machine body makes a small machine can handle large quantity of wet material.
5) Drying process control: The top installed centrifual classifier can well control moisture content and granules size distribution of dried product.
6) Heat supply system: The dryer can be heated by electricity, steam, oil/gas/coal/biomass fired hot air generator.
After-sale
service:
Provide
considerate
services
to
minimize
clients’
worries.
1.
Assist
clients
to
prepare
for
the
first
construction
scheme.
2.
Install
and
debug
the
equipment.
3.
Train
the
first-line
operators.
4.
Examine
the
equipment.
5.
Take
initiative
to
eliminate
the
troubles
rapidly.
6.
Provide
technical
support.
7.
Establish
long-term
and
friendly
relationship.
Service
commitment:
1.
Provide
clients
one-year
warranty
to
make
sure
the
machine
work
well.
2. We always keep certain inventory level of spare parts, which means the replacements can be sent to you timely.
3. Send every client a preferential quotation.
