| Price | USD 133/pcs |
| MOQ | 1 pcs |
| Delivery Time | 3 days |
| Brand | Acrel |
| Place of Origin | China |
| Certification | CE |
| Model Number | PZ72(L)-DE |
| Packaging Details | Individually packed in big carton |
| Supply Ability | 10000/month |
| Input voltage | 0～100V,0～500V,0～1000V | Installation | DIN 35 mm |
| Place of Origin | China | Packaging Details | Individually packed in big carton |
| Dimension(L*W*H) | 75*75*98mm | Model Number | PZ72(L)-DE |
| Supply Ability | 10000/month | Certification | CE |
| Power Supply | 85～265VAC/DC,20～60VDC,100～350VDC | Brand Name | Acrel |
| Accuracy | Class 0.5 | Power consumption | ≤2W |
| Price | USD 133/pcs | Delivery Time | 3 days |
| DI/DO | 2DI/2DO | Minimum Order Quantity | 1 pcs |
| Frequency | 50/60Hz |

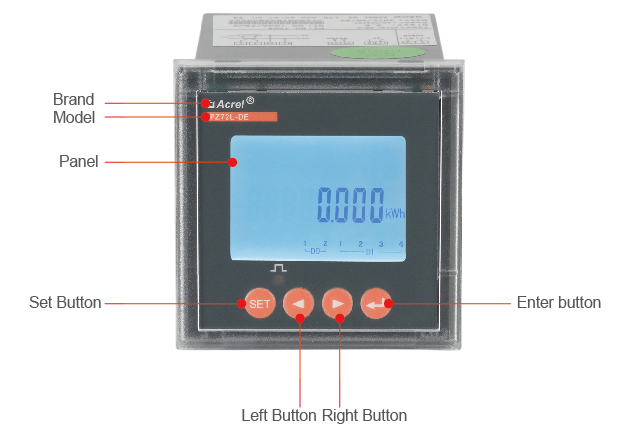

PZ series DC power meter is designed for solar power, DC screen, telecom base station and other applications. It can measure various power parameters in DC system.
Technical Features
| Items | Features | |
|
Environment |
Temperature | -40℃~125℃ |
| Humidity | ≤95% | |
| atmospheric pressure | 86kPa~106kPa | |
|
ATE100M/100/200 Active wireless temperature sensor |
Wireless frequency | 470MHz |
| Communication distance | 150m in open area | |
| Sampling frequency | 25s | |
| Transmitting frequency | 25s-5min | |
| Power source | Battery | |
| Installation | Magnetic / bolted /Belt | |
| Range of temperature | -50℃~+125℃ | |
| Precision | ±1℃ | |
| Application | Joints in high or low voltage switchgears | |
| Battery life | ≥5 years | |
|
400 Passive wireless temperature sensor |
Wireless frequency | 470MHz |
| Communication distance | 150m in open area | |
| Sampling frequency | 15s | |
| Transmission frequency | 15s | |
| Power source | CT-powered, starting current≥5A | |
| Installation | alloy chip fixing | |
| Sensor probe | alloy bottom | |
| Range of temperature | -50℃~125℃ | |
| Precision | ±1℃ | |
| Application | Joints in high or low voltage switchgears | |
|
ATE100P/200P Outdoor wireless temperature sensor |
Wireless frequency | 470MHz |
| Communication distance | 150m in open area | |
| Sampling frequency | 25s | |
| Transmitting frequency | 25s-5min | |
| Power source | Battery | |
| Installation | bolted /Belt | |
| Range of temperature | -50℃~+150℃ | |
| Precision | ±0.5℃ | |
| Application | Voltage switchgears | |
| Battery life | ≥5 years | |
| Protection level | IP68 |
