| Price | Negotiable |
| MOQ | 1unit |
| Delivery Time | 5-8 work days |
| Brand | JCVISION |
| Place of Origin | SHENZHEN, CHINA |
| Certification | CE, Rohs, FCC |
| Model Number | JC-VW470 |
| Packaging Details | wooden box |
| Payment Terms | T/T |
| Supply Ability | 1000 Unit/Units per Month |
| Place of Origin | SHENZHEN, CHINA | Viewing Angle | 178° |
| Response Time | 5ms | Packaging Details | wooden box |
| Input Voltage | 100~240V | Model Number | JC-VW470 |
| Supply Ability | 1000 Unit/Units per Month | Certification | CE, Rohs, FCC |
| Bezel | 3.5mm | Aspect Ratio | 16 : 9 |
| Brand Name | JCVISION | Payment Terms | T/T |
| Pixel Pitch | 0.4845*0.4845 | Price | Negotiable |
| Delivery Time | 5-8 work days | Minimum Order Quantity | 1unit |
| Contrast Ratio | 3500:1 | Display area | 1025.7*578.6 |
| Net weight | 23KG | Resolution | 1920*1080 |

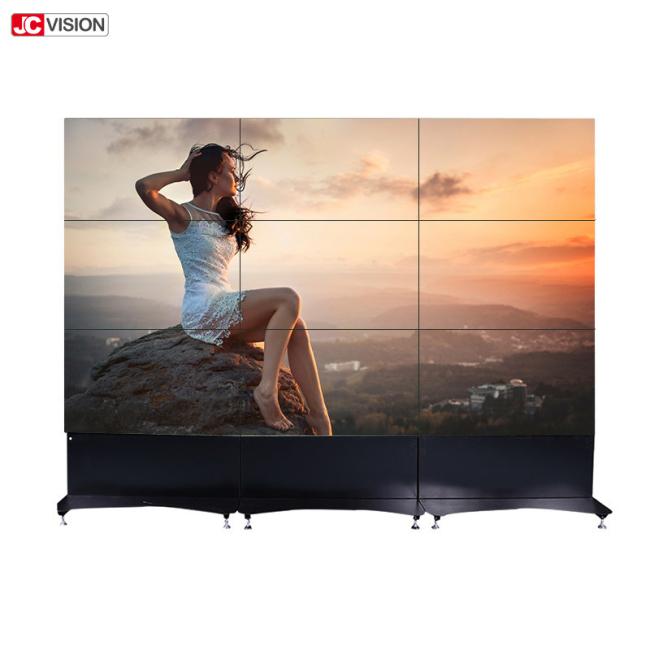

JCVISION 47Inch LED Backlight LCD Video Wall With Narrow Bezel For Advertising
| Specifications | ||||
| Screen size | 46'' with Samsung DID LCD screen( bezel 7.3mm) 3.5mm-5.3mm is optional | |||
| Aspect Ratio | 16:9 | |||
| Resolution | 1920x1080 | |||
| Color | 8Bit,16.7M | |||
| Brightness (nits) | 450cd/m2 | |||
| Contrast | 2000:1 | |||
| Visual angle (H/V) | 178° | |||
| Response time | <=6ms | |||
| Life(hrs) | >60,000(hrs) | |||
| Input and output | ||||
| Composite Video Input | 3(3xBNC) | |||
| YUV/YPbPR | 1(3xBNC) | |||
| S-YC | 1(2xBNC) | |||
| D-15 RGB Input(VGA) | 1 | |||
| HD | 1 | |||
| DVI | 1 | |||
| Audio Input | 1 | |||
| Composite Video Output | 2(2xBNC) | |||
| Split Screen | Support Picture in Picture(PIP/POP/PAP) | |||
| Power | ||||
| Power supply | AC100V~240V | |||
| Maximum power consumption | 250W | |||
| Standby power consumption | <=3W | |||
| Temperature | ||||
| Working temperature | 0°C~50°C | |||
| Working humidity | 20%-80% | |||
| Appearance | ||||
| Product dimension( W x H x D) mm | 1025.65x579.84x126.73 | |||
| Acessory | ||||
| Cable | Can supply different kinds of cable | |||
| Video Wall Controller(Built-in each screen) | ||||
| Model No. | US-P816A | |||
| Input | CVBS | 3*BNC inputs, support PAL/NTSC all formats, 2*BNC loop outputs | ||
| VGA | 1*D15 port, support SVGA/XGA/WXGA | |||
| YPbPr/YCbCr | 1* YPbPr/YCbCr input, support PAL/NTSC all formats, and 720P,1080I, HDTV | |||
| Y/C | 2*BNC inputs, support PAL/NTSC all formats | |||
| Output | LVDS | Support signal or double LVDS output, and WUXGA (1920*1080) display | ||
| Operate mode | Panel key operation(needs customization) | |||
| Standard RS232 port( provide free control software) | ||||
| Infrared Remote Control Operation | ||||
| Engineering software | Customized | |||
| Working temperature | 0~70 °C | |||
| working humidity | 5~95 %RH | |||
| AC voltage power supply | 100-240V/50, 60Hz | |||
| power consumption | Max 300W,according to different screen models | |||
| Dimension | 338×295×60(mm) | |||
| Weight | About 3.5KG | |||
