338249 338257 Pg1 Gun Cascade Powder Coating Hv Negative Or Positive Polarity

Price Negotiable
MOQ 1 Piece
Delivery Time 5 - 8 work days
Brand Astar
Place of Origin China
Certification CE , ISO9001
Model Number PG1
Packaging Details Plastic bag
Payment Terms T/T, Western Union, L/C, D/A, D/P, T/T, MoneyGram, PayPal
Supply Ability 100 pieces per month

Product Details

Product Specification

Place of Origin China Warranty 1 year
Packaging Details Plastic bag Maximum output current 100 µA
Rated output voltage 98 kV HV indication LED
Model Number PG1 Supply Ability 100 pieces per month
Certification CE , ISO9001 Name Hv cascade
Brand Name Astar Payment Terms T/T, Western Union, L/C, D/A, D/P, T/T, MoneyGram, PayPal
Type PG1 Manual Rated input voltage 10 V eff.
Price Negotiable Delivery Time 5 - 8 work days
Minimum Order Quantity 1 Piece Frequency 17 kHz
Polarity Negative (Option - positive) Application PG1 Powder Gun

Product Description

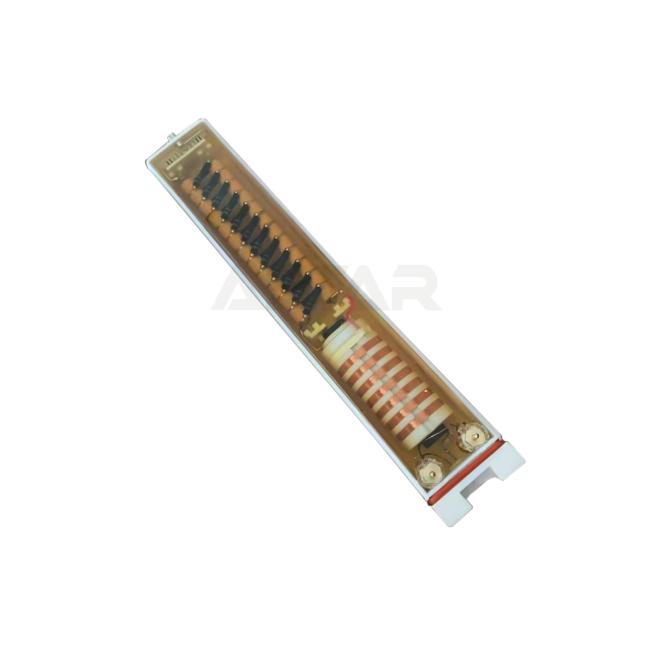

338249 338257 PG1 Powder Gun Hv Cascade Negative or Positive Polarity



Introduction



The voltage generator module (Control module) supplies high-frequency low-voltage.
This voltage is conducted by the gun cable and the gun connector in the grip to the high-voltage cascade .
In the cascade this low voltage is stepped up. This primary high-voltage is subse quently rectified and multiplied in several stages in the cascade until the required high voltage is attained.
The high-voltage is then fed from the spray nozzle to the electrode.
When the high-voltage is adjusted on the control module, the intensity of the LED also changes. The user has the assurance that high-voltage is present and can control this function.



Application



PG1 Powder Gun



Quick Details



Name



Hv cascade Type PG1 Manual

Voltage



10V Polarity Negative (Option - positive)
Application PG1 Powder Gun Rated input voltage​ 10 V eff.
Frequency 17 kHz Rated output voltage 98 kV
Maximum output current 100 µA Warranty 1 year



Advantages and selling points


1. Original function
2. High quality with high static
3. Original gun compatible

4. Regular stock



Package



Paper box package
