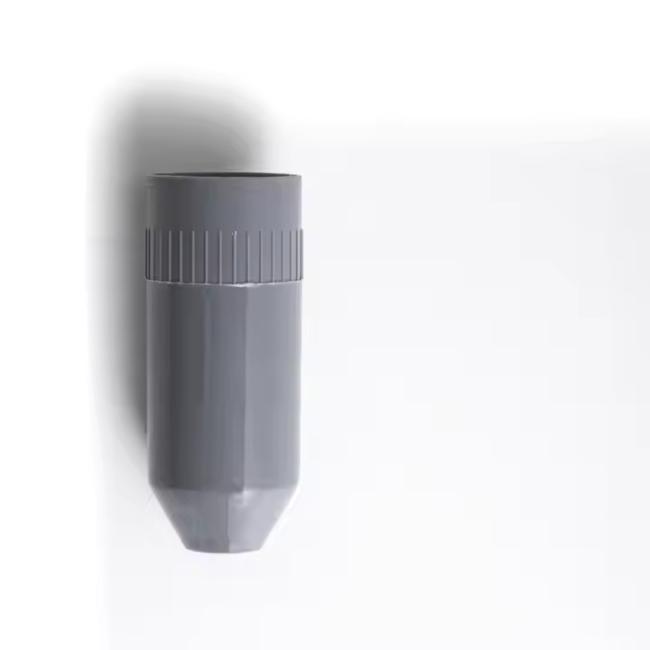

379 166 GA02 Threaded Sleeve Coating Gun Powder Coating Parts

Price	Negotiable
MOQ	1
Delivery Time	3 - 8 work days
Brand	Astar
Place of Origin	China
Certification	CE, ISO9001
Model Number	114219
Packaging Details	Carton
Payment Terms	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Product Details

Product Specification

Weight（kg)	0.5	Nozzle size	NF08, NF18, NS03, NF02, NF03, NF04
Place of Origin	China	Warranty	None
Size	4mm	Packaging Details	Carton
Grade	PROFESSIONAL, Industrial, DIY	Model Number	114219
Certification	CE, ISO9001	Name	GA02 Threaded Sleeve
Brand Name	Astar	Payment Terms	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Machinery test report	Provided	Price	Negotiable
Delivery Time	3 - 8 work days	Minimum Order Quantity	1
Max Pressure	6 - 8 bar

Product Description

379166 GA02 Threaded Sleeve Coating Gun Powder Coating Parts

Product Description

Spare parts list
	2-A Automatic powder gun - complete, negative polarity, incl. pos. 1-6	393 568
	2-A Automatic powder gun - complete, positive polarity, incl. pos. 1-6	393 576
1	Powder gun body 2-A - complete, negative polarity	393 649
	Powder gun body 2-A - complete, positive polarity	393 657
2	Threaded sleeve - see "Nozzle combinations" spare parts list
3	Flat jet nozzle - see "Nozzle combinations" spare parts list
4	Gun cable - complete, 20 m (65.61 ft), see also "Gun cable" spare parts list	393 827
5	Parts set (not shown), consisting of:	385 670
	Cable binder with Velcro closure	303 070
	Cylinder screw - M8x50 mm	235 113
	Cap screw - M4x5 mm	216 763
	Washer - Ø 8.4/20x2 mm	215 880
	Quick release coupling - NW5, Ø 6 mm	200 840
6	Cleaning brush - Ø 12 mm (not shown)	389 765
7	7 Powder hose - Ø 16/11 mm (not shown)	103 012*
8	8 Rinsing air hose - Ø 6/4 mm (not shown)	103 144
1	2-A shaft - complete, negative polarity (see "Shaft" spare parts list)	393 665
	2-A shaft - complete, positive polarity (see "Shaft" spare parts list)	393 673
2	Powder tube - complete	385 182#
3	Powder gun attachment	382 817
4	Clamp sleeve	358 584
5	Hose connection - complete	362 670#
5.1	O-ring for pos. 5 (not shown)	232 670#
1	Cascade - complete, negative polarity
1	Cascade - complete, positive polarity	393 703
2	Adaptor - complete, incl. pos. 2.4 and 2.5	393 711
2.4	Screw-in nipple - 1/8"a, Ø 6 mm	385 158
2.5	Plug cap - 1/8"a	251 542
3	Adaptor piece - complete, incl. pos. 3.3	265 560
3.3	Pan head screw - M4x6 mm	385 069
4	Shaft (without cascade)	267 139
5	Hollow screw	393 681
6	Gasket	382 680
2-AX Automatic powder gun - complete, negative polarity, incl. pos. 1-5
	2-AX Automatic powder gun - 1650	393 509
	2-AX Automatic powder gun - 1450	393 517
	2-AX Automatic powder gun - 1250	393 525
	2-AX Automatic powder gun - 1050	393 533
	2-AX Automatic powder gun - 850	393 541
	2-AX Automatic powder gun - 650	393 550
1	2-AX Automatic powder gun body - complete, negative polarity, see "
1	2-AX Automatic powder gun - gun body" spare parts list
2	Threaded sleeve - see "Nozzle combinations" spare parts list	379 166
3	Flat jet nozzle - complete, see "Nozzle combinations" spare parts list
4	Gun cable - complete, 20 m (65.61 ft), see also "Gun cable" spare parts list	393 827
5	Parts set (not shown), consisting of:	385 662
	Cable binder with Velcro closure	303 070
	Pan head screw - M4x6 mm	267 139
	Quick release coupling - NW5, Ø 6 mm	200 840
6	Powder hose - Ø 16/11 mm (not shown)	103 012*
7	Rinsing air hose - Ø 6/4 mm (not shown)	103 144*
Powder gun body 2-AX - complete, negative polarity
	2-AX-1650,L=1646mm(64.80in)	393584
	2-AX - 1450, L = 1446 mm (56.93 in)	393 592
	2-AX - 1250, L = 1246 mm (49.05 in)	393 606
	2-AX - 1050, L = 1046 mm (41.18 in)	393 614
	2-AX - 850, L = 846 mm (33.30 in)	393 622
	2-AX - 650, L = 646 mm (25.43 in)	393 630
1	2-A shaft - complete, negative polarity (see spare parts list "Shaft")	393 665
2	Powder tube - complete, without pos. 4
	2-AX - 1650	385 255#
	2-AX - 1450	385 344#
	2-AX - 1250	385 352#
	2-AX - 1050	385 360#
	2-AX - 850	385 379#
	2-AX - 650	385 387#
3	Extension tube
	2-AX - 1650	384 682
	2-AX - 1450	385 441
	2-AX - 1250	385 450
	2-AX - 1050	385 468
	2-AX - 850	385 476
	2-AX - 650	385 484
4	Clamping part	358 584
5	Hose connection - complete	362 670#
5.1	O-ring for pos. 5 (not shown)	232 670#
Nozzle set - flat jet, NF08, pos. 1, 2		1000 047#
Nozzle set - round jet, pos. 5, 6, 9		382 922
1	Electrode holder (flat jet nozzle)	1000 055#
2	Flat jet nozzle	1000 049#
3	Threaded sleeve	379 166
5	O-ring - Ø 5x1 mm	231 606#
6	Round jet nozzle	378 518#
7	Deflector plate - Ø 16 mm (0.63 in)	331 341#
7.1	Deflector plate - Ø 24 mm (0.94 in)	331 333#
7.2	Deflector plate - Ø 32 mm (1.26 in)	331 325#
8	Extension - 150 mm (5.91 in)	378 852#
8.1	Extension - 300 mm (11.82 in)	378 860#
9	Electrode.pos.5	382 914#
Nozzle set - flat jet, NF18-M, pos. 1, 2		1004 530#
1	Electrode holder (flat jet nozzle)	1004 529#
2	Flat jet nozzle	1004 527#
3	Threaded sleeve	379 166
Round jet nozzle with 4 electrodes NS03-09 - complete, pos. 1, 2, 3		1000 249#
Round jet nozzle with 4 electrodes NS03-11 - complete, pos. 1, 2.1, 3.1		1000 250#
1	Threadedsleeve-complete	405 736
2	MuzzleNS03-09-complete	1000 175#
2.1	MuzzleNS03-11-complete	1000 176#
3	DeflectorrodNS03-09-complete	1000 345#
3.1	DeflectorrodNS03-11-complete	1000 346#
4	Deflectorplate-Ø12mm(notshown)	301 175#
4.1	Deflectorplate-Ø16mm(notshown)	302 040#
4.2	Deflectorplate-Ø20mm(notshown)	301 183#
4.3	Deflectorplate-Ø24mm(notshown)	301 191#
4.1	Deflectorplate-Ø28mm(notshown)	302 031#
4.4	Deflectorplate-Ø32mm(notshown)	301 205#
4.5	Deflector-Ø50mm	302 023#
1	2-AX Automatic powder gun
2	2-AAutomaticpowdergun-complete,withflatjetnozzleset,guncable	393 568
2	(20 m), parts set, cleaning brush, without corona, negative polarity	393 568
	2-A Automatic powder gun - complete, with flat jet nozzle set, gun cable	393 576
	(20 m), parts set, cleaning brush, without corona, positive polarity	393 576
3	corona-complete	385 174
	Nozzle set - round jet nozzle (pos. 4 and 5)	382 922
4	Electrode holder (round jet nozzle central electrode)	382 914#
5	Round jet nozzle	378 518#
6	Threaded sleeve	379 166
	Nozzle set - flat jet nozzle (pos. 7 and 8)	1000 047#
7	Electrode holder (flat jet nozzle)	1000 055#
8	Flat jet nozzle - NF08	1000 049#
9	Flat jet nozzle - NF04 (slot in round form)	383 082#
10	Flatjetnozzle-NF02(withoutslot)	384 887#
11	Flatjetnozzle-NF03(nozzlefrontpartØ24mm)	383 058#
12	Threadedsleeveforpos.11	383 074
