| Price | Negotiation |
| MOQ | 100 |
| Delivery Time | 5-10 working days |
| Brand | MC SILICONE |
| Place of Origin | China |
| Certification | MSDS , SGS， Reach |
| Model Number | MC-160 |
| Packaging Details | 1kg/can , 5kg/can , 10kg/drum , 20kg/drum , 25kg/drum , 200kg/drum |
| Payment Terms | L/C, , T/T, Western Union, PayPal , |
| Supply Ability | 8000kgs/day |
| Working time | 30-40mins | Tensile Strength | ≥0.6 |
| Mixed Viscosity | 3000-6000 Cps | Volume resistivity ohm*cm | 1*1015 |
| Place of Origin | China | Packaging Details | 1kg/can , 5kg/can , 10kg/drum , 20kg/drum , 25kg/drum , 200kg/drum |
| Color | Grey | Model Number | MC-160 |
| Hardness | 50-60 shore A | Supply Ability | 8000kgs/day |
| Certification | MSDS , SGS， Reach | Brand Name | MC SILICONE |
| Payment Terms | L/C, , T/T, Western Union, PayPal , | Thermal conductivity cm/°C | 0.525*10-3 |
| Price | Negotiation | Delivery Time | 5-10 working days |
| Minimum Order Quantity | 100 | Dielectric breakdown voltage kv/mm 25°C | ≥20 |
| Mixing ratio | 1:1 |
Silgard 160 Silicone Elastomer General Purpose Flame Resistant Gray Electronic Potting Silicone
Description of Electronic Potting Silicone Compound& Encapsulates

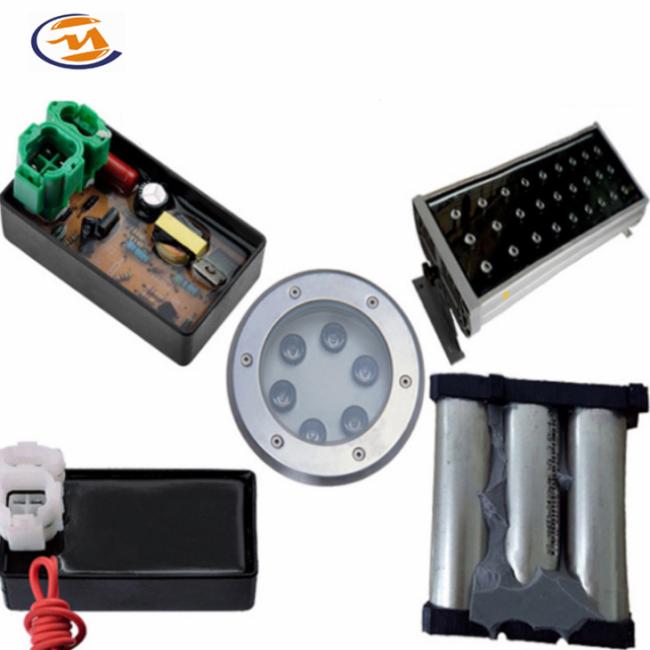

RTV160 is a two-component room temperature cure potting compound with mix ratio of 1:1, curing time can be accelerated by heating up, features with good flow ability and flame resistance. It’s suitable for encapsulating of LED displayers, power module and electronics components, etc.
Features of Electronic Potting Silicone Compound& Encapsulates
Easy mix with 1:1 proportion
Low viscosity, good flow ability
Room temperature cure or heat up cure
Thermal conduction, flame resistance
Without solvent
Application of Electronic Potting Silicone Compound& Encapsulates
Using Instructions of Electronic Potting Silicone Compound& Encapsulates
1. Preparing: clean up the coating surface, remove the rust, dust, oil dirt.
2. Pouring: weigh the silicone and catalyst correctly, mix silicone part A and part B thoroughly, pour onto the electronic components/surface after vacuum degassing.
3. Curing: room temperature cure or heat-up cure is both workable.
It should be use up after open the package, the material must be kept in a cool place sealed well, and it should avoid from contactwithmoisture in the air.
Technical datasheet of Electronic Potting Silicone Compound& Encapsulates
| Item No.: | RTV160A/B |
| Appearance(A/B) | A: Grey liquid B:White liquid |
| Viscosity(A/B,Mpa.s) | 3600~3800 |
| Mix ratio (A/B) | 1:1 |
| Pot life after curing(25℃,min) | 30-40 |
| Curing time (hrs) | 2-4 |
| Thermal conductivity(W/m·K)(A/B) | ≥0.60 |
| Durometer Hardness(JIS A0) | 56~57 |
| Volume resistivity(Ω·cm) | 7X1014 |
| Dielectric breakdown voltage(KV/mm) | 18~20 |
| Flammability classification | UL-94 V-0 |
| Shrinkage % | 0.01 |
Note: Mechanical and electrical performance data tested at 25°C 7 days after curing, relative humidity of 55%; all the tested data is average value.
Packaging of Electronic Potting Silicone Compound& Encapsulates
Packs are available in 20kg and 200kg per drum.
Storage & Transportation of Electronic Potting Silicone Compound& Encapsulates
Keep it from strong sunshine, heat, and store in cool & dry place, well sealed. silicone rubber has a shelf life of 12 months.
It can be transported as non-dangerous goods.
