| Price | $200-12000/piece |
| MOQ | 1Piece |
| Delivery Time | 10-15days |
| Brand | XINCHENG |
| Place of Origin | Qingdao |
| Certification | CCS LR BV SGS RS |
| Model Number | D 2.0m*L 3.5m |
| Packaging Details | Normal packing, deflated packing |
| Payment Terms | L/C, T/T, Western Union, MoneyGram |
| Supply Ability | 150piece per month |
| Chain | hot galvanizing or stainless steel(304,316) | Place of Origin | Qingdao |
| Size | Customized Size,As customer's ruquirement,D= 0.5m to 8m L= 1m to 12m,3.3x6.5m | Packaging Details | Normal packing, deflated packing |
| Standard | ISO17357,CCS,etc,BV | Model Number | D 2.0m*L 3.5m |
| Supply Ability | 150piece per month | Certification | CCS LR BV SGS RS |
| Brand Name | XINCHENG | Payment Terms | L/C, T/T, Western Union, MoneyGram |
| Price | $200-12000/piece | Delivery Time | 10-15days |
| Minimum Order Quantity | 1Piece | flange | hot galvanizing |
| Application | ship protection,Ship fender,Marine/quay/dock/boat,Floating and berthing(ship to ship or ship to dock) | Diameter | 0.5~4.5m |

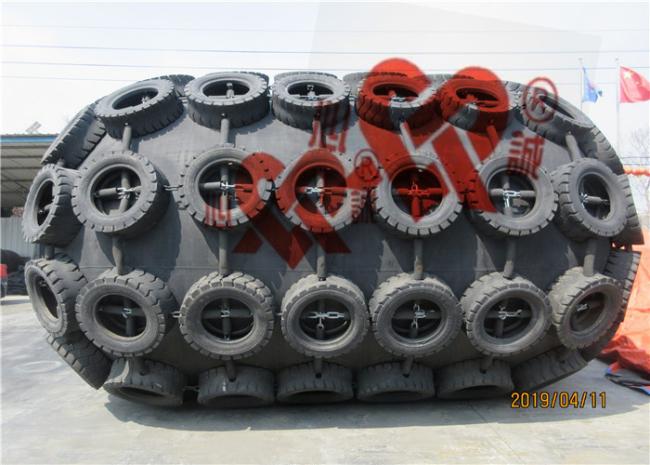

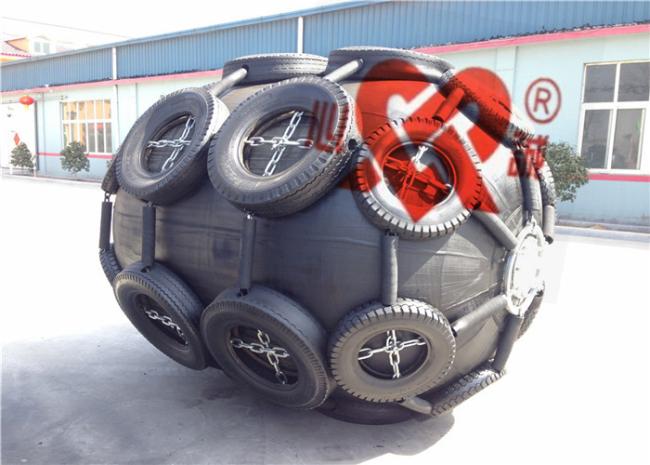

ISO 17357 Standard Ship Fender And Yokohama Pneumatic Rubber Fender
Pneumatic
rubber
fender
is
a
device
for
berthing,
buffering
and
protection
of
ships.
It
uses
compressed
air
as
a
buffer
medium
to
prevent
ships
from
colliding
when
berthing.
Inflatable
rubber
fenders
are
more
economical
and
more
durable
than
ordinary
rubber
fenders,
so
they
are
more
popular
and
widely
used.
It
is
the
first
choice
of
many
armies.
Yokohama
fender
is
a
leading
anti-collision
device
for
maritime
applications
in
the
world
today.
It
has
become
an
ideal
ship
protection
medium
and
has
been
widely
used
by
large
oil
tankers,
LPG
ships,
offshore
platforms,
large
docks,
ports
and
docks.
The structure of Rubber Pneumatic Fenders:
The outer rubber layer protects the cord layer and inner layer from abrasion and other external forces. This compound has sufficient tensile and tear strength to withstand any weather condition and hard usage
The cord layers are arranged at ideal angles to hold the internal pressure and to distribute the stress evenly. The fenders cord layer is constructed by means of integrative twine technology and consists of polyamide fiber with high tensile stress, so that the fenders have unique strength and uniformity in different directions.
The inner rubber layer seals the air inside, utilizing a compound with airtight quality.Pneumatic Rubber fender description Yokohama rubber fender is intended to be used for the berthing and mooring of a ship to another ship or berthing structure. It also specifies the test and inspection procedures for high-pressure floating Pneumatic Rubber Fender.

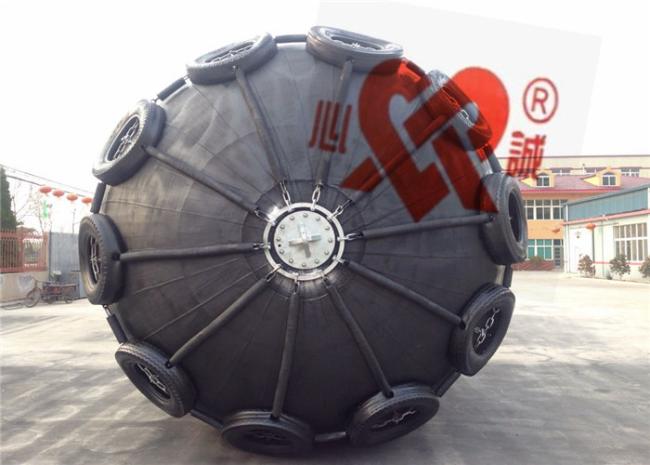

Flange opening:The metal parts at both ends of fender,to which an air valve or safety valve can be adapted.
NOTES OF PNEUMATIC RUBBER FENDERS
1 Keep the fender away from sharp objects, in case damage the fender body.
2 Fender cannot touch with acid, oil and other organic solvent.
3 When fender not use for a long time, they should be washed to clean, dried and proper compressed air inflated. Put them in a dry , cool and ventilated area.
4 The storage area should be far away from heat source.
5 Do not put heavy objects on the fender when fender not in use.
6 Fender in normal usages should be checked the inner pressure every 3 months. Meanwhile, Air valve core should be replaced every 6 months.
Meet
the
requirements
of
ISO17357:2002
2.
More
secure
and
reliable
3.
Smaller
parking
force
4.
Adapt
to
the
tide
5
Low
maintenance
costs
6.
Low
reactivity
and
Hull
pressure
7.
The
most
cost-effective
system
8.
Advantages
of
reducing
shear
force
9.
Simple
installation
and
low
cost
10.
There
are
many
optional
accessories
| Pneumatic 50 fender size and performance requirements | ||||
|
Nominal size diameter x length mm |
Initial internal pressure kPa |
Guaranteed energy absorption (GEA) | Reaction force at GEA deflection(R) | Hull pressure (Internal pressure) at GEA deflection (P) |
| Minimum value at deflection 60±5% kJ | Tolerance±10 % kN |
Reference value kPa |
||
| 500 x 1000 | 50 | 6 | 64 | 132 |
| 600 x 1000 | 50 | 8 | 74 | 126 |
| 700 x 1500 | 50 | 17 | 137 | 135 |
| 1000 x 1500 | 50 | 32 | 182 | 122 |
| 1000 x 2000 | 50 | 45 | 257 | 132 |
| 1200 x2000 | 50 | 63 | 297 | 126 |
| 1350 x 2500 | 50 | 102 | 427 | 130 |
| 1500 x 3000 | 50 | 153 | 579 | 132 |
| 1700 x 3000 | 50 | 191 | 639 | 128 |
| 2000 x 3500 | 50 | 308 | 875 | 128 |
| 2500 x 4000 | 50 | 663 | 1381 | 137 |
| 2500 x5500 | 50 | 943 | 2019 | 148 |
| 3300 x 4500 | 50 | 1175 | 1884 | 130 |
| 3300 x 6500 | 50 | 1814 | 3015 | 146 |
| 3300 x 10600 | 50 | 3067 | 5257 | 158 |
| 4500 x 9000 | 50 | 4752 | 5747 | 146 |
| 4500 x 12000 | 50 | 6473 | 7984 | 154 |
