| Price | $200-12000/piece |
| MOQ | 1Piece |
| Delivery Time | 10-15days |
| Brand | XINCHENG |
| Place of Origin | Qingdao |
| Certification | CCS LR BV SGS RS |
| Model Number | D 2.5m*L4.0m |
| Packaging Details | Normal packing, deflated packing |
| Payment Terms | L/C, T/T, Western Union, MoneyGram |
| Supply Ability | 150piece per month |
| Place of Origin | Qingdao | Warranty | 24 months |
| Packaging Details | Normal packing, deflated packing | Color | Black |
| Material | Natural Rubber | Model Number | D 2.5m*L4.0m |
| Supply Ability | 150piece per month | Feature | Aging Resistance |
| Certification | CCS LR BV SGS RS | Brand Name | XINCHENG |
| Payment Terms | L/C, T/T, Western Union, MoneyGram | Packing | Normal packing |
| Price | $200-12000/piece | Delivery Time | 10-15days |
| Length | 0.5m~12.0m,1~9m | Minimum Order Quantity | 1Piece |
| Application | STD,STS,Ships and Boats,Ship fender,Marine/quay/dock/boat | Diameter | 0.5~4.5m |

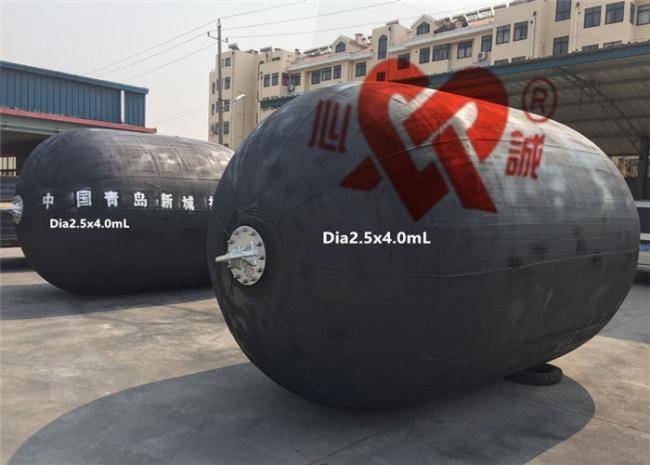

Sling Type Pneumatic Fender Easy To Install , Rubber Dock Fender For Boat
Fender structure
Outer Rubber
The tough abrasion resistant outer rubber is designed to protect the inner rubber and tyre-cord layers from damaging external forces. The material has mechanical properties to withstand the arduous operational conditions for which it is designed.
The diagram below shows the actual properties as specified in ISO 17357. Generally, the outer rubber is black, but other colours such as grey and off-white can be supplied upon request.
Tyre-cord Layer
Synthetic
tyre-cord
layers
have
proven
to
be
the
best
option
for
strong,
efficient
reinforcement
for
pneumatic
rubber
fenders.
Each
layer
is
coated
with
a
rubber
compound
on
both
sides
that
prevents
contact
between
the
layers,
reducing
friction
and
wear
during
bending,
compression
and
stretching.
The
same
compound
isolates
each
thread
within
the
layer.
This
greatly
improves
the
ability
of
the
fender
to
hold
pressure,
fatigue
resistance
and
endurance
life.
Other
reinforcing
layer
materials
such
as
canvas
have
wear
points
that
significantly
reduce
the
life
off
the
fender.
Inner Rubber
The inner rubber seals pressurised air inside the fender. It is usually constructed of a compound similar to that of an inner tube in a truck or car tyre to ensure a good level of air tightness.
Sling type pneumatic fenders don`t include chain tires net, but with a specially processed outer rubber double-layered cover , resulting in better resistance to operational damage.
Sling type pneumatic fender strengths:
1, First manufacturer in China being ISO17357-1-2014 Approved
2, Light and easy to re-deploy
3, Equipped with safety valve to assure safety operation.
4, Fast delivery, common size 0.5x1,1x1.5,1x2,1.5x,2x3.5 are available in stock for immediately dispatch
Sling type pneumatic fender dimension table:
| Nominal size | Internal pressure 0.05Mpa at 60% deflection | Safety-valve pressure setting | Testing pressure | |||
| Diameter | Length | Energy absorption | Reaction force | Hull pressure | ||
| mm | mm | KN-m | KN | KPa | KPa | KPa |
| 500 | 1000 | 6 | 64 | 132 | － | 200 |
| 600 | 1000 | 8 | 74 | 126 | － | 200 |
| 700 | 1500 | 17 | 137 | 135 | － | 200 |
| 1000 | 1500 | 32 | 182 | 122 | － | 200 |
| 1000 | 2000 | 45 | 257 | 132 | － | 200 |
| 1200 | 2000 | 63 | 297 | 126 | － | 200 |
| 1350 | 2500 | 102 | 427 | 130 | － | 200 |
| 1500 | 3000 | 153 | 579 | 132 | － | 200 |
| 1700 | 3000 | 191 | 639 | 128 | － | 200 |
| 2000 | 3500 | 308 | 875 | 128 | － | 200 |
| 2500 | 4000 | 663 | 1381 | 137 | 175 | 250 |
| 2500 | 5500 | 943 | 2019 | 148 | 175 | 250 |
| 3000 | 6000 | 1309 | 2387 | 148 | 175 | 250 |
| 3300 | 4500 | 1175 | 1884 | 130 | 175 | 250 |
| 3300 | 6500 | 1814 | 3015 | 146 | 175 | 250 |
| 3300 | 10600 | 3067 | 5257 | 158 | 175 | 250 |
| 4500 | 9000 | 4752 | 5747 | 146 | 175 | 250 |
| 4500 | 12000 | 6473 | 7984 | 154 | 175 | 250 |
