Price | $200-12000/piece |
MOQ | 1Piece |
Delivery Time | 10-15days |
Brand | XINCHENG |
Place of Origin | Qingdao |
Certification | CCS LR BV SGS RS |
Model Number | D3.0m*L 6.0m |
Packaging Details | Normal packing, deflated packing |
Payment Terms | L/C, T/T, Western Union, MoneyGram |
Supply Ability | 150piece per month |
Usage | pneumatic marine fenders cone fender,Protects ship during ship-to-ship operations or mooring at quay,Protect Boat | Place of Origin | Qingdao |
Warranty period | 24 months | Packaging Details | Normal packing, deflated packing |
Model Number | D3.0m*L 6.0m | Supply Ability | 150piece per month |
Certification | CCS LR BV SGS RS | Brand Name | XINCHENG |
Payment Terms | L/C, T/T, Western Union, MoneyGram | Packing | Normal packing,Nude Packing/As Requirement,Standard Package |
Price | $200-12000/piece | Delivery Time | 10-15days |
Part | marine equipments,Pneumatic Boat Fender,Marine fender,pneumatic rubber fender | Minimum Order Quantity | 1Piece |
Design using life | 10 years | Diameter | 0.5~4.5m |

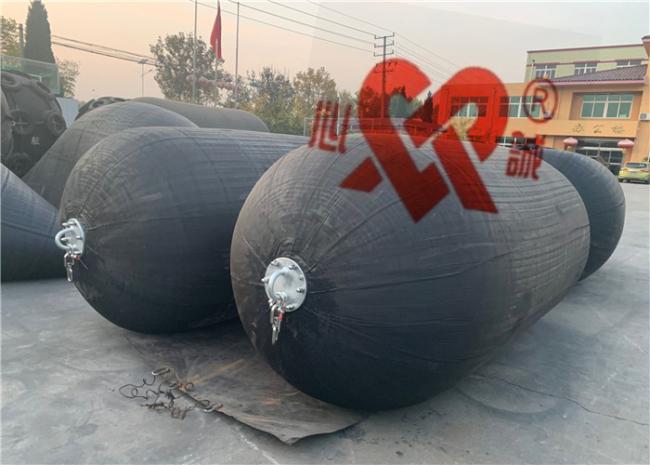

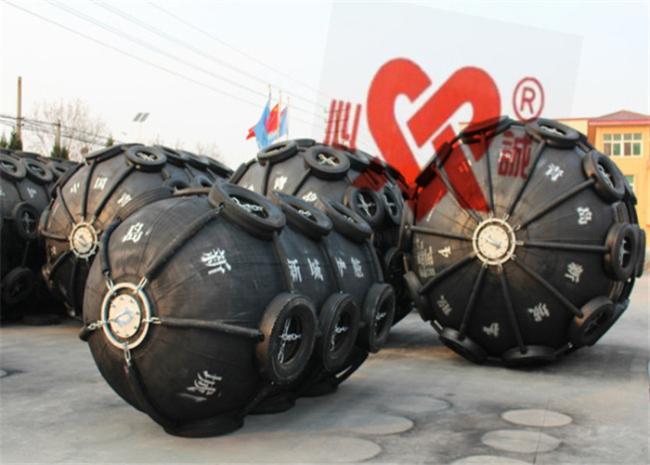

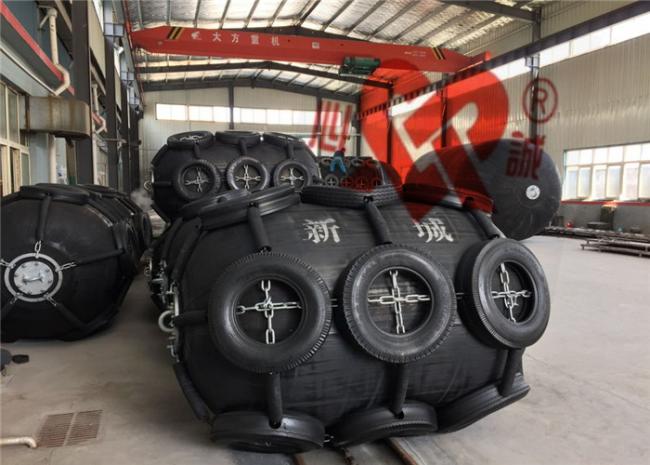

Natural Rubber Inflatable Pneumatic Fender Net-Type For Vessle And Boat
Pneumatic rubber fender is the advanced anti-collision device for marine application
in the world. Pneumatic Rubber Fender also known as floating fender or Yokohama type rubber fender, it is often installed on the terminal or ship, which aims to absorb or reduce the collision energy between ship to ship and ship to dock. This kind of product can protect the ship or dock from the damage of collision. With inner compressed air, it can float on the water and widely used as protecting medium equipment. Size : D0.5 m x L1.0 m ~ D 3.3 x L6.5m. “XINCHENG” Pneumatic rubber fenders are produced in strict accordance with the ISO17357-2002 and GB/T 2002-2002 international quality standard, our products have exported to all over the world.
NOTES OF PNEUMATIC RUBBER FENDERS
1 Keep the fender away from sharp objects, in case damage the fender body.
2 Fender cannot touch with acid, oil and other organic solvent.
3 When fender not use for a long time, they should be washed to clean, dried and proper compressed air inflated. Put them in a dry , cool and ventilated area.
4 The storage area should be far away from heat source.
5 Do not put heavy objects on the fender when fender not in use.
6 Fender in normal usages should be checked the inner pressure every 3 months. Meanwhile, Air valve core should be replaced every 6 months.
Quality control and management:
“XINCHENG” Pneumatic Rubber Fender has passed the ISO9001:2008 quality management system certification, each fender is fully comply with ISO17357 and GB/T21482-2008 international production standard.
dock fender specifications
Normal size Diameter x Length |
Initial
Internal
pressure
0.05MPa
|
Initial
Internal
pressure
0.08MPa
|
||||
Guaranteed Energy Absorption(GEA) |
Reaction
Force
At
GEA(RF)
|
Hull
Pressure
At
GEA(PR)
|
Guaranteed Energy Absorption(GEA) |
Reaction
Force
At
GEA(RF)
|
Hull
Pressure
At
GEA(PR)
|
|
mm x mm |
KN/M |
KN
|
Kpa
|
Kpa |
Kpa
|
Kpa
|
500x1000
|
6 | 64 | 132 | 8 | 83 | 174 |
600x1000
|
8 | 74 | 126 | 11 | 96 | 166 |
700x1500
|
17 | 137 | 135 | 24 | 178 | 178 |
1000x1500
|
32 | 182 | 122 | 44 | 235 | 161 |
1000x2000
|
45 | 257 | 132 | 63 | 335 | 174 |
1200x2000
|
63 | 297 | 126 | 86 | 386 | 166 |
1350x2500
|
102 | 427 | 130 | 140 | 554 | 170 |
1500x3000
|
153 | 579 | 132 | 211 | 751 | 175 |
1700x3000
|
191 | 639 | 128 | 263 | 830 | 168 |
2000x3500
|
308 | 875 | 128 | 424 | 1138 | 168 |
2500x4000
|
663 | 1381 | 137 | 925 | 1815 | 180 |
2500x5500
|
943 | 2019 | 148 | 1317 | 2653 | 195 |
3000x5000
|
965 | 1815 | 148 | 1341 | 2359 | 198 |
3300x4500
|
1175 | 1884 | 130 | 1640 | 2476 | 171 |
3300x6500
|
1814 | 3015 | 146 | 2532 | 3961 | 191 |
NOTE:1.REACTION FORCE AND ENERGY ABSORPTION TOLERANCE IS ±10% 2.WEIGHT TOLERANCE IS ±10% 3.SPECIAL SIZE CAN BE PRODUCED FOLLOW CUSTOMER'S NEED |
