Single Or Double Reflective Woven Fabric Aluminum Foil Backed Woven Fabric Heat Insulation

Price	1.1-2.2usd/kg
MOQ	3tons
Delivery Time	7-15 working days
Brand	BM
Place of Origin	CHINA
Certification	ISO
Model Number	BMINSULAATION
Packaging Details	1.bubble film, to protect from collision during transportation 2.specified label, factory label or customized label without factory information 3.different types of packing ways according to roll size or customer's request 4.Standup pallet, Suspenderd pall
Payment Terms	T/T, L/C

Product Details

Product Specification

Product Name	Aluminum Foil Woven fabric insulation	Place of Origin	CHINA
Packaging Details	1.bubble film, to protect from collision during transportation 2.specified label, factory label or customized label without factory information 3.different types of packing ways according to roll size or customer's request 4.Standup pallet, Suspenderd pall	Color	Silver
Material	Pet Film, Aluminum, Polyethylene	Model Number	BMINSULAATION
Certification	ISO	Brand Name	BM
Payment Terms	T/T, L/C	Thickness	7-50 Mic
Reflectivity	95 - 97%	Function	Heat Insulation, Facing, House Wrap
Price	1.1-2.2usd/kg	Delivery Time	7-15 working days
Length	Customized, 30-2000 M	Minimum Order Quantity	3tons
Application	Roof Wall and Floor Insulation for Building	Width	Customized, 1m, 1.2m, 1.22m, 1.35m

Product Description

Single or Double Reflective Woven Fabric Aluminum Foil Backed Woven Fabric Heat Insulation

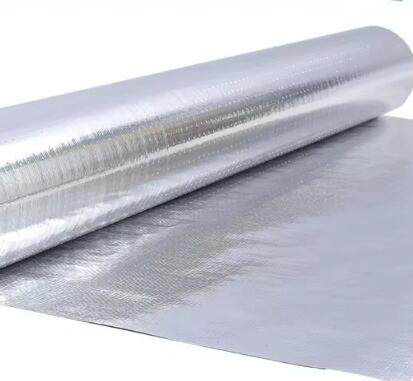

Aluminum Foil woven fabric Radiant Barrier

Aluminum Foil woven fabric Radiant Barrier is a material that is a poor transmission of radiant energy. This product is made of double-sided metalized aluminum and woven fabric. By definition, this re-transmission characteristic (emissivity) must be at or below 10%. The emissivity of our Aluminum Foil woven fabric Radiant Barrier is about 0.1. Therefore, when a radiant barrier is installed in a residential attic roof, it block about 90% of the radiant energy that is being radiated by the hot Roofing materials. This is a cooler attic, resulting in a house that requires less air conditioning usage to maintain comfortable inside temperature.

Typical Physical Properties

Item Name	Aluminum Foil woven fabric Radiant Barrier
Material Structure	Aluminum Foil woven fabric Radiant Barrier




Type	Solid or Perforated
Material Structure	Metalized Aluminum + PE+ woven+ PE+ Metalized Aluminum
Aluminum Thickness	7um, 12um or customized
Width	1m,1.2m,1.22m,1.5m ect accordign to your requirements(Max Width:2m)
Density	75g/m2 - 150g/m2
Thickness	0.13mm or 5 mil
Tear Strength	11.2IBF(MD)/ 11.85IBF(TD)
Reflectivity	97%
Emissivity	0.1
Water Vapor Performance	Water proof 0.013 g/m2kpa
Mold and Mildew	No growth
Corrosion	Doesn't generate
Fire proof	CLASS A
Application Conditions	-50ºC~80ºC
Please note that : Customized items are acceptable. We can do it with aluminum foil or metallized foil. The size, density,thickness can be changed according to your requirements.

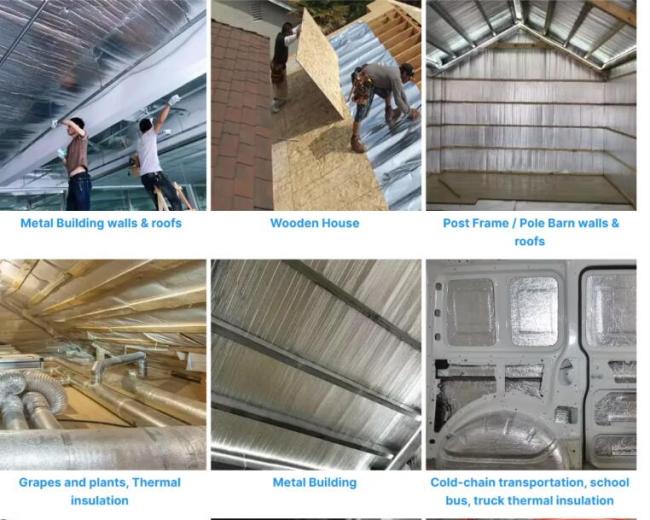

Application

Single Or Double Reflective Woven Fabric Aluminum Foil Backed Woven Fabric Heat Insulation

Product Details

Product Specification

Product Description

Single or Double Reflective Woven Fabric Aluminum Foil Backed Woven Fabric Heat Insulation
