| Price | Negotiable |
| MOQ | 1km |
| Delivery Time | 2-4days |
| Brand | jiqian |
| Place of Origin | CHINA |
| Certification | ISO9001 |
| Model Number | ADSS 12core/24core/48core |
| Packaging Details | wooden drum/customized |
| Payment Terms | Western Union, T/T, L/C |
| Supply Ability | 100km per Month |
| Place of Origin | CHINA | Packaging Details | wooden drum/customized |
| Model Number | ADSS 12core/24core/48core | central strength member | FRP |
| Supply Ability | 100km per Month | Span | 80m 100m 200m 300m |
| Certification | ISO9001 | Brand Name | jiqian |
| Payment Terms | Western Union, T/T, L/C | Number of conductors | 48 core |
| Delivery Time | 2-4days | Minimum Order Quantity | 1km |
| Structure | Stranded loose tube | Application | Aerial/duct |
| Fiber type | G652D/G657A1 | Operating temperature | -40 ~ +60 C |
Characteristics:
·Good
mechanical
and
temperature
performance
·High
strength
loose
tube
that
is
hydrolysis
resistant
·Special
tube
filling
compound
ensure
a
critical
protection
of
fiber
·Crush
resistance
and
flexibility
·The
following
measures
are
taken
to
ensure
the
cable
watertight:
-Single
Fiber
Reinforced
Plastic
as
the
central
strength
member
-Loose
tube
filling
compound
-100%
cable
core
filling
-PSP
enhancing
moisture-proof
-Water-blocking
material
Optical Characteristics:
| G.652D | 50/125μm | 62.5/125μm | ||
| Attenuation (+20℃) | @850nm | ≤3.0dB/km | ≤3.0dB/km | |
| @1300nm | ≤1.0dB/km | ≤1.0dB/km | ||
| @1310nm | ≤0.36dB/km | |||
| @1550nm | ≤0.22dB/km | |||
| Bandwidth(Class A) | @850nm | ≥500MHz·km | ≥200MHz·km | |
| @1300nm | ≥1000MHz·km | ≥600MHz·km | ||
| Numerical Aperture | 0.200±0.015NA | 0.275±0.15NA | ||
| Cable Cut-off Wave length | ≤1260nm | |||
Standards:
ADSS cable complies with Standard YD/T 901-2001 as well as IEC 60794-1

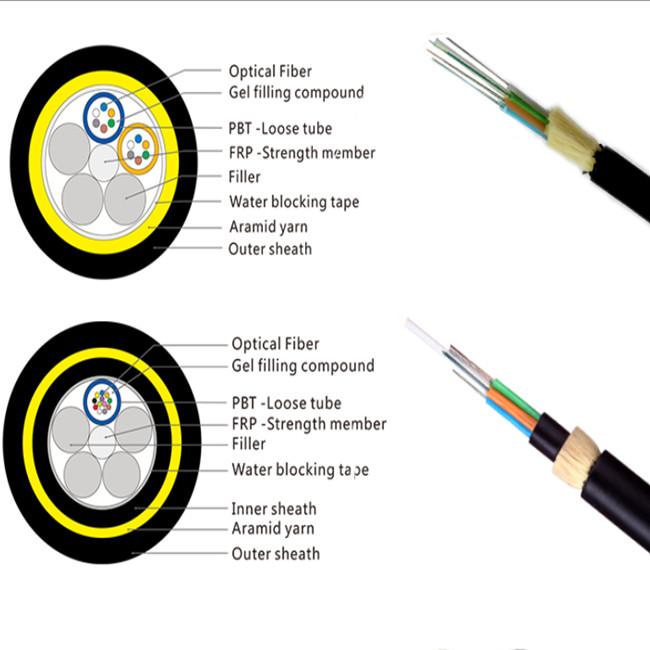

Structure:
