| Price | Negotiable |
| MOQ | 1000m |
| Delivery Time | 2-4day |
| Brand | jiqian |
| Place of Origin | CHINA |
| Certification | ISO |
| Model Number | GYFTY |
| Packaging Details | wooden drum |
| Payment Terms | Western Union, T/T, L/C |
| Supply Ability | 100km per 2 day |
| Place of Origin | CHINA | Packaging Details | wooden drum |
| Model Number | GYFTY | central strength member | FRP |
| Supply Ability | 100km per 2 day | Certification | ISO |
| Brand Name | jiqian | Payment Terms | Western Union, T/T, L/C |
| Number of conductors | 72/48core /96core | Delivery Time | 2-4day |
| Oem | Available | Minimum Order Quantity | 1000m |

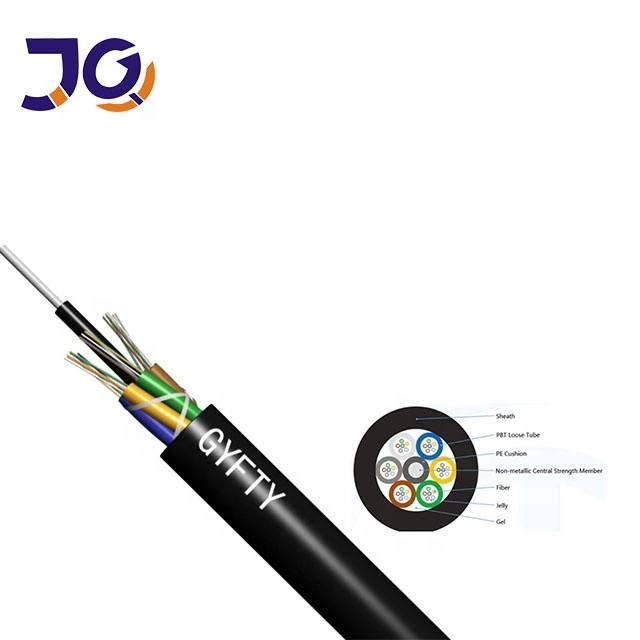

| Structure | Stranded loose tube | Application | Aerial/duct |
| Fiber type | G652D | Operating temperature | -40 ~ +60 C |
Cable structure and parameter:
|
Fiber count |
Max. fiber count per tube |
Total unit count (LT + FR) |
Cable sheath thickness (nominal*) |
Overall diameter (nominal**) |
Weight (approx.) |
| mm | mm | kg/km | |||
| 288 | 24 | 12LT | 1.8 | 18.9 | 300 |
* The nominal sheath thickness may vary by 0.2mm.
** The nominal outer diameter and height may vary by 0.2mm.
Fiber Properties:
The properties of single mode optical fiber (ITU-T Rec. G.652D)
| Item | Specification |
| Fiber type | Single mode |
| Fiber material | Doped silica |
|
Attenuation
coefficient @ 1310 nm @ 1383 nm @ 1550 nm @ 1625 nm |
≤ 0.36 dB/km ≤0.32 dB/km ≤0.22 dB/km ≤0.30 dB/km |
| Point discontinuity | ≤ 0.05 dB |
| Cable cut-off wavelength | ≤ 1260 nm |
| Zero-dispersion wavelength | 1300 ~ 1324 nm |
| Zero-dispersion slope | ≤0.093 ps/(nm².km) |
|
Chromatic
dispersion @ 1288 ~ 1339 nm @ 1271 ~ 1360 nm @ 1550 nm @ 1625 nm |
≤3.5 ps/(nm. km) ≤5.3 ps/(nm. km) ≤18 ps/(nm. km) ≤22 ps/(nm. km) |
| PMD | ≤0.2 ps/km½ |
| Mode field diameter @ 1310 nm | 9.2±0.4 um |
| Core / Clad concentricity error | ≤0.5 um |
| Cladding diameter | 125.0 ± 0.7 um |
| Cladding non-circularity | ≤1.0% |
| Primary coating diameter | 245 ± 10 um |
| Proof test level | 100 kpsi (=0.69 Gpa), 1% |
|
Temperature
dependence 0℃~ +70℃ @ 1310 & 1550nm |
≤ 0.1 dB/km |
Cable bending radius: 10 x cable diameter (during operation)
20 x cable diameter (during installation)
Temperature range:
| Operating temperature range | -40℃ to +60℃ |
| Storage / Transport temperature range | -50℃ to +70℃ |
| Installation temperature range | -30℃ to +50℃ |
Package Details:
Iron-wooden
drum
or
fumugated
wooden
drum,normal
wooden
drum
Drum
size
can
be
designed,details
will
calculation
for
suitable
for
containers
