| MOQ | 1kilometer |
| Delivery Time | 2-4 days |
| Brand | Jiqian/OEM |
| Place of Origin | China |
| Certification | CE/ISO9001 |
| Model Number | GYTC8S |
| Packaging Details | Wooden Drum |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability | 80000kilometers per month |
| Place of Origin | China | color | Black |
| Packaging Details | Wooden Drum | jacket | PE |
| Model Number | GYTC8S | Supply Ability | 80000kilometers per month |
| Certification | CE/ISO9001 | Brand Name | Jiqian/OEM |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union | Cores | 2-288 |
| Type | Fiber Optic Cable, gytc8s | Price | |
| Delivery Time | 2-4 days | Minimum Order Quantity | 1kilometer |
| Fiber mode | single mode & multi mode | Application | Aerial |
Tchnical parameters
| Performance | Long-term | Short-term |
| Max.Tension(N) | 2500 | 4800 |
| Max.Crushing | 1000 | 1000 |
| Resistance(N/100mm2) | 20D(Dynamic) | 10D(static) |
| Storage and operating temperature | -20℃ to +70℃ | |
Optical Characteristics:
| G.652D | 50/125μm | 62.5/125μm | ||
| Attenuation (+20℃) | @850nm | ≤3.0 dB/km | ≤3.2 dB/km | |
| @1300nm | ≤1.0 dB/km | ≤1.2 dB/km | ||
| @1310nm | ≤0.36 dB/km | |||
| @1550nm | ≤0.22 dB/km | |||
| Bandwidth (Class A) | @850nm | ≥500 MHz·km | ≥200 MHz·km | |
| @1300nm | ≥1000 MHz·km | ≥600 MHz·km | ||
| Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | ||
| Cable Cut-off Wavelength λcc | ≤1260nm | |||

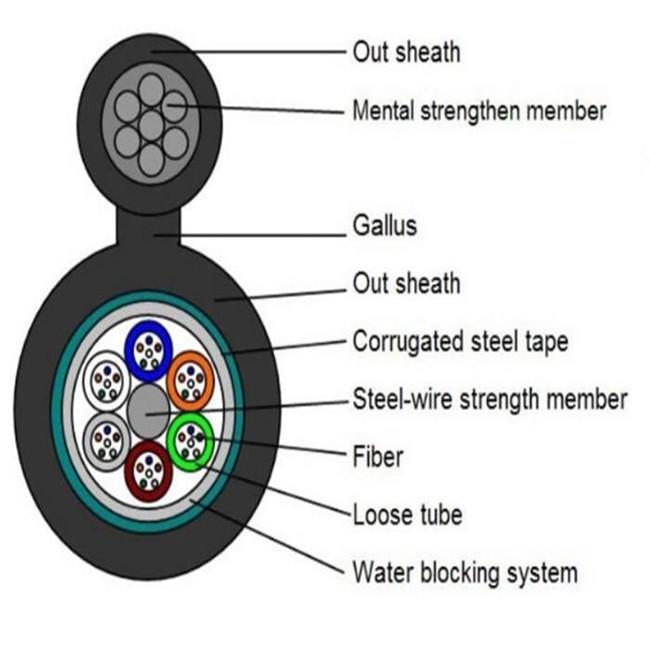

Cable Specification:
Item Name:gytc8s cable
Optical Mode:Singlemode/Multimode
Fiber Diameters:G652, G655, 50/125μm, 62.5/125μm
Total Fiber Count:2-144
Bend Radius(Static/Dynamic):10D/20D
Working Life:More than 25 years
Application:Aerial self-supporting,Local network,Local network,Long distance network communication.
Characteristics
Good
mechanical
and
temperature
performance
High
strength
loose
tube
that
is
hydrolysis
resistant
Special
tube
filling
compound
ensure
a
critical
protection
of
fiber
Crush
resistance
and
flexibility
