| Price | Negotiable |
| MOQ | 1km |
| Delivery Time | 3-5 days |
| Brand | Jiqian |
| Place of Origin | Guangzhou,China |
| Certification | ISO 9001/ROSH/CE |
| Model Number | GYXTW |
| Packaging Details | Wooden drum |
| Payment Terms | L/C, T/T,Alipay |
| Supply Ability | 4500km |
| Place of Origin | Guangzhou,China | Packaging Details | Wooden drum |
| Armoured | Yes | Model Number | GYXTW |
| Supply Ability | 4500km | Certification | ISO 9001/ROSH/CE |
| Cable brand | Jiqian | Brand Name | Jiqian |
| Payment Terms | L/C, T/T,Alipay | Delivery Time | 3-5 days |
| Suitable temperature | -40+60 | Minimum Order Quantity | 1km |
| Manufacturer | Yes | Number of Conductors: | 12 cores |
| Application | Duct/aerial | Fiber type | Fiberhome/YOFC |

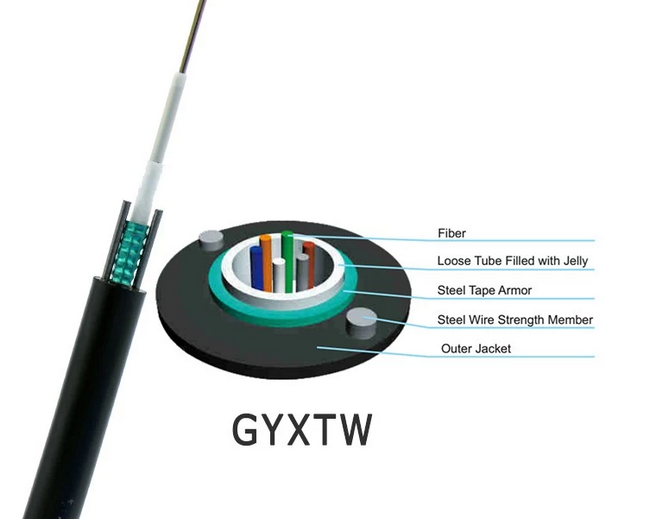

fiber optic cable type GYTW 12core with armored steel
Armored Uni-Tube Single Jacket/Single Armor fiber optic cable with fibers placed in loose buffer tube. The cable core is protected with a corrugated steel tape armor and cover with a black polyethylene outjacket. Two embedded steel wire provide desire tension
Product Characteristics
• Material of loose tube has good mechanical properties and temperature characteristics
• Material of loose tube has good hydrolysis resistance and high strength
• The tube is filled with special filler to provide critical protection for the fiber
• Good lateral pressure resistance and softness
• Double chrome plating plastic-coated steel tape (PSP) improves the moisture resistance of optical cables
• The two parallel steel wires provides enough tensile strength
• Small diameter, light weight, easy for laying
Cable Parameters
| Items | Specifications | |
| Fiber Count | 2~24 | |
| Colored Coating Fiber | Dimension | 250μm+15μm |
| Color | Blue,Orange,Green,Brown,Gray,White | |
| Loose Tube | Dimension | 2.0mm±0.05mm |
| Material | PBT | |
| Color | Natural | |
| Strength Member | Diameter | 1.0mm |
| Material | Steel | |
| Outer Jacket | Dimension | 8.0mm±0.1mm |
| Material | PE | |
| Color | Black | |
Technical Parameters
|
Fiber Count |
Cable Diameter(mm) |
Cable
Weight kg/km) |
Tensile
Strength Long/Short Term (N) |
Crush
Resistance Long/Short Term (N/100mm) |
Bending
Radius
Static/Dynamic |
| 2~12 | 8 | 78 | 1000/300a0 | 1000/3000 | 10D/20D |
| 14~24 | 10 | 90 | 1000/3000 | 1000/3000 | 10D/20D |
Performance of Cabled Optical Fiber
The performance of cabled optical fiber (ITU-T Rec. G.652D)
| Item | Specification |
| Fiber type | Single mode |
| Fiber material | Doped silica |
|
Attenuation
coefficient @ 1310 nm @ 1383 nm @ 1550 nm @ 1625 nm |
≤ 0.36 dB/km ≤0.35 dB/km ≤0.22 dB/km ≤0.25 dB/km |
| Point discontinuity | ≤ 0.05 dB |
| Cable cut-off wavelength | ≤ 1260 nm |
| Zero-dispersion wavelength | 1300 ~ 1324 nm |
| Zero-dispersion slope | ≤0.092 ps/(nm².km) |
|
Chromatic
dispersion @ 1288 ~ 1339 nm @ 1271 ~ 1360 nm @ 1550 nm @ 1625 nm |
≤3.5 ps/(nm. km) ≤5.3 ps/(nm. km) ≤18 ps/(nm. km) ≤22 ps/(nm. km) |
| PMD | ≤0.2 ps/km½ |
| Mode field diameter @ 1310 nm | (8.6~9.5)±0.6 um |
| Core / Clad concentricity error | ≤0.6 um |
| Cladding diameter | 125.0 ± 1 um |
| Cladding non-circularity | ≤1.0% |
| Primary coating diameter | 245 ± 10 um |
| Proof test level | 100 kpsi (=0.69 Gpa), 1% |
|
Temperature
dependence 0℃~ +70℃ @ 1310 & 1550nm |
≤ 0.1 dB/km |

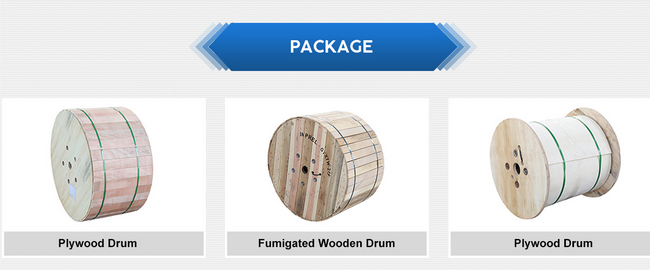

package
workshop part
FAQ:
1,Q:Are
you
a
factory
or
trade
company?
A:We
are
a
factory
2,Q:What
is
the
MOQ?
3.Q:Which brand of fiber do you use?
A:Corning,YOFC,Fiberhome,etc
4,Q:Can
you
accept
small
order?
A:Yes,
small
order
is
available
.We
support
new
project
of
our
customers
as
we
know
business
is
always
from
small
order.
5,Q:What’s
delivery
time?
A:The
general
delivery
time
is
5-7
days
after
order
confirmed.
It
depends
on
the
order
quantity.
6.Can you supply customized products and logo?
A:Yes. We supply OEM service.
7.What’s your payment terms?
A: We accept T/T,L/C,Western Union, 30% in advance and 70% before shipment.
