| Jacket | PE,MDPE | Installation | Aerial & Duct |
| Place of Origin | Guangzhou,China | Packaging Details | wooden drum |
| Color | Black | Model Number | GYTA-24B1 |
| Supply Ability | 30KM Per days | Certification | ISO9001 |
| Brand Name | JQ/OEM | Payment Terms | L/C, T/T, Western Union |
| Strength member | Steel wire | Delivery Time | 5-8 work days |
| Product name | Stranded loose tube armored cable | Length | 2km or customized length |
| Fiber color | Blue,Orange,Brown,Aqua,Grey | Oem | Available |
| Minimum Order Quantity | 1km | Fiber type | G652D |

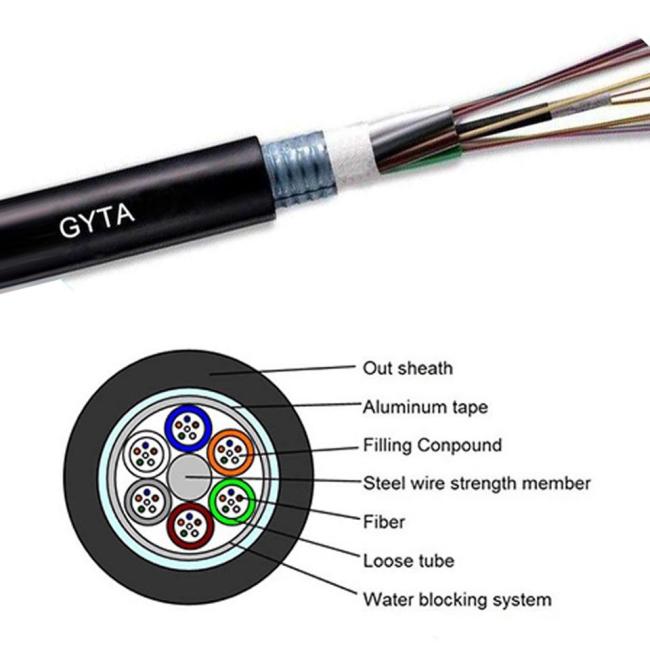

24 Core Aluminum Stranded Loose Tube Armored Cable GYTA Outdoor Fiber Optic Cable
Product Description
Technical Features
1.Single sheaths construction
2.Accurate fiber excess length ensures good mechanical and temperature performance.
3.Specially designed compact structure is good at preventing loose tubes from shrinking.
4.High strength loose tube that is hydrolysis resistant and special tube filling compound ensure a citical protection of fiber.
5.Moistureproof and ratproof.
Applications:
Long distance and local area network (LAN) communication.
Laying ways: Pipeline , Overhead , Direct buried ,Duct application.
Temperature Range: -40℃~+70℃
Optical Characteristics
| Items | Unit | Specification | |
| G652D | |||
| Mode Field Diameter | 1310nm | um | 9.2±0.4 |
| 1550nm | um | 10.4±0.5 | |
| Cladding Diameter | um | 124.8±0.7 | |
| Cladding Non-Circularity | % | ≤0.7 | |
| Core-Cladding Concentricity Error | um | ≤0.5 | |
| Coating Diameter | um | 245±5 | |
| Coating Non-Circularity | % | ≤6.0 | |
| Cladding-Coating Concentricity Error | um | ≤12 | |
| Cable Cutoff Wavelength | nm | acc≤1260 | |
| Attenuation(max.) | 1310nm | dB/km | ≤0.36 |
| 1550nm | dBkm | ≤0.22 | |
Technical Parameters
|
Fiber Count (Core) |
Out sheath Diameter (mm) |
Weight (KG/KM) |
Min.allowable tensile strength(N) |
Min.allowable crush load(N/100m) |
Min. bending radius (mm) |
Suitable Temperature (c) |
|||
|
Short term |
Long term |
Short term |
Long term |
short term |
Long term |
|
|||
|
24 |
10.5 |
105 |
1500 |
600 |
1000 |
300 |
20D |
10D |
-40~+60 |
|
36 |
10.5 |
105 |
1500 |
600 |
1000 |
300 |
20D |
10D |
-40~+60 |
|
42 |
10.5 |
105 |
1500 |
600 |
1000 |
300 |
20D |
10D |
-40~+60 |
|
48 |
12.0 |
150 |
1500 |
600 |
1000 |
300 |
20D |
10D |
-40～+60 |
|
60 |
12.0 |
150 |
1500 |
600 |
1000 |
300 |
20D |
10D |
-40~+60 |
|
72 |
12.0 |
150 |
1500 |
600 |
1000 |
300 |
20D |
10D |
-40~+60 |
|
96 |
12.5 |
165 |
1500 |
600 |
1000 |
300 |
20D |
10D |
-40~+60 |
|
144 |
14.0 |
180 |
1500 |
600 |
1000 |
300 |
20D |
10D |
-40~+60 |

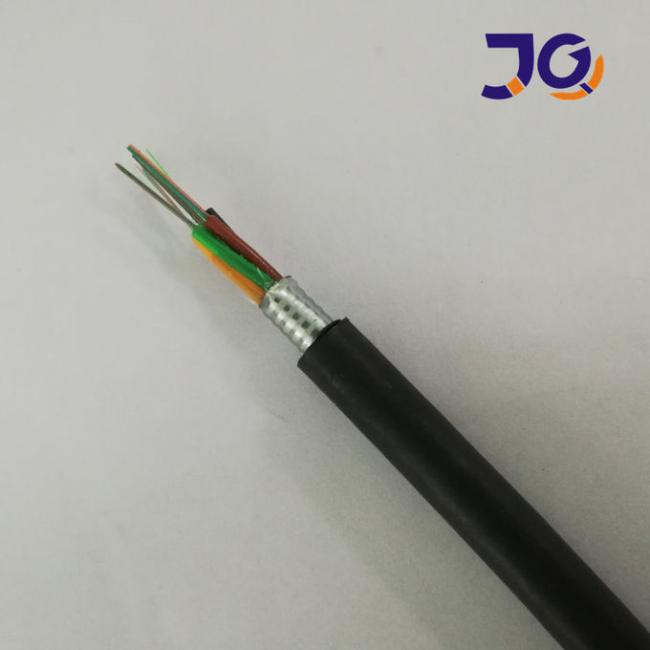

Product show
