ADSS All Dielectric 48 Core Self Supporting Aerial Fibre Outdoor Cable Single Jacket Span 100m 200m

Price Negotiable
MOQ 1 Kilometer
Delivery Time 2-5days
Brand JQ/OEM
Place of Origin Guangdong, China
Certification CE/ISO9001
Model Number ADSS
Packaging Details Wooden Drum
Payment Terms L/C, D/A, D/P, T/T, Western Union
Supply Ability 8000 kilometers per month

Product Details

Product Specification

Central strength member FRP Place of Origin Guangdong, China
Tube Multi Loose Tube Packaging Details Wooden Drum
Color Customized Model Number ADSS
Supply Ability 8000 kilometers per month Span 100-500M
Certification CE/ISO9001 Brand Name JQ/OEM
Payment Terms L/C, D/A, D/P, T/T, Western Union Type Outdoor Fiber Optic Cable
Delivery Time 2-5days Length As required
Oem Available Minimum Order Quantity 1 Kilometer
Temperature range -40°~60°C Package Wooden Drum/Customized
Outer Sheath PE or as your request Application Self-supporting aerial
Filler Aramid yarn Fiber type G652,G652D,50/125,62.5/125,OM3
Number of Conductors ≥ 10 Certificate ISO9001/SGS/ROHS

Product Description

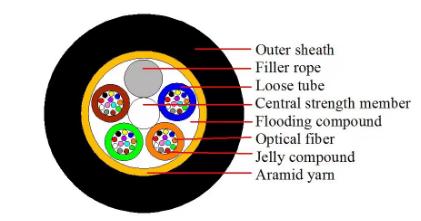

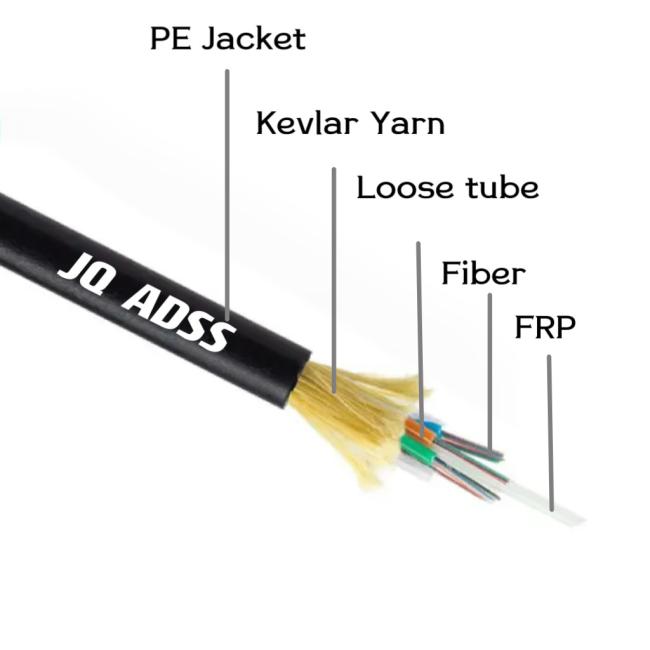

ADSS cable is loose tube stranded. Fibers, 250μm, are positioned into a loose tube made of high modulus plastics. The tubes are filled with a water-resistant filling compound. The tubes (and fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core. After the cable core is filled with filling compound. It is covered with stranded layer of aramid yarns and then the cable is completed with PE outer sheath.
The actual status of overhead power lines is taken into full consideration when ADSS cable is being designed. For overhead power lines under 110kV, PE outer sheath is applied. FOR power lines equal to or over 110kV, AT outer sheath is applied. The dedicate design of aramid quantity and stranding process can satisfy the demand on various spans.
Feature:
* Can be installed without shutting off the power.
* Light weight and small diameter reducing the load caused by ice and wind and the load on towers and backprops.
* Large span lengths.
* Good performance of tensile strength and temperature.
* The design life span is 30 years.

Applications:
Situation of large span.
Long distance communication system.
A long span can reach 1500M and the life span is more than 30 years.
Areas of strong electric field, multi-thunder, etc.

Specification:

Packing and delivry

Delivery For large orders: by sea (LCL or FCL) For small orders: by sea (LCL), by air or by courier services(DHL ,UPS,TNT.....)

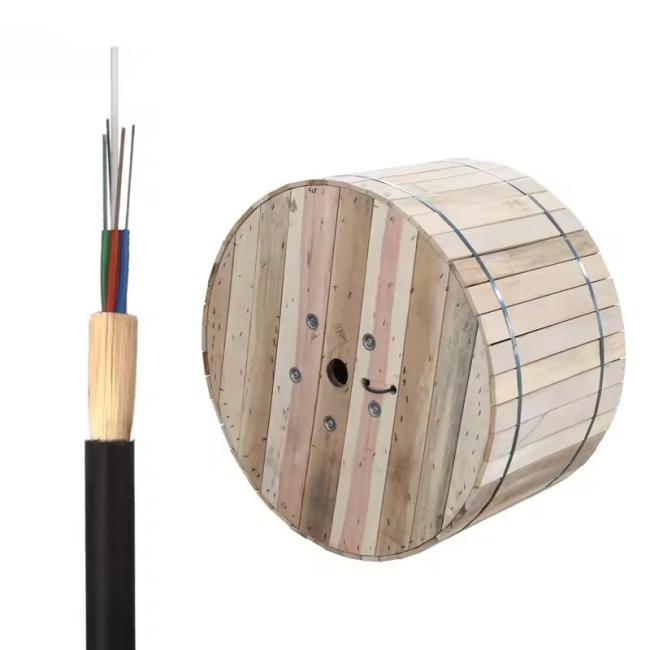

Packaging Details Wooden roll, 1000m/reel, 2000m/reel, 3000m/reel, customer's requirements are also welcomed;

Free printing

We provide free cable printing service, you can print the information you need on the cable jacket. For example, company name, product features.

Company Profile:

WHY CHOOSE US:

Certification:

FAQ:

Q1. Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity.
Q3. Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for the product?
A: Firstly let us know your requirements or application.
B.Secondly We quote according to your requirements or our suggestions.
C.Thirdly customer confirms the samples and places deposit for formal order.
D.Fourthly We arrange the production.



We Support OEM and Customize products.
