| Price | negotiable |
| MOQ | 10sqm |
| Delivery Time | within 1month |
| Brand | OEM |
| Place of Origin | China |
| Certification | CE-EMC, CE-LVD, RoHS, ETL, FCC |
| Model Number | OEM |
| Packaging Details | Flight Case |
| Payment Terms | T/T, Western Union, PayPal |
| Supply Ability | 10,000sqm/month |
| Place of Origin | China | Warranty | 3years |
| Cabinet | Aluminium | Packaging Details | Flight Case |
| Color | Full color | LEDs | SMD 3in1 |
| Model Number | OEM | Supply Ability | 10,000sqm/month |
| Certification | CE-EMC, CE-LVD, RoHS, ETL, FCC | Brand Name | OEM |
| Payment Terms | T/T, Western Union, PayPal | Price | negotiable |
| Delivery Time | within 1month | Minimum Order Quantity | 10sqm |
| Scan | 1/8 Scan | Pixel | 6mm |
Indoor P6mm 1500nits Stadium LED Display For Rental Aluminium Cabinet
Quick Details:
1, Pixel Pitch: 6mm, SMD full color leds.
2, Refresh rate: 1,920Hz.
3, Wide viewing angle: 160°/ 160°.
4, Brightness: 1,500nits.
5, Aluminium cabinet, stadium, rental dual usage.
Description:

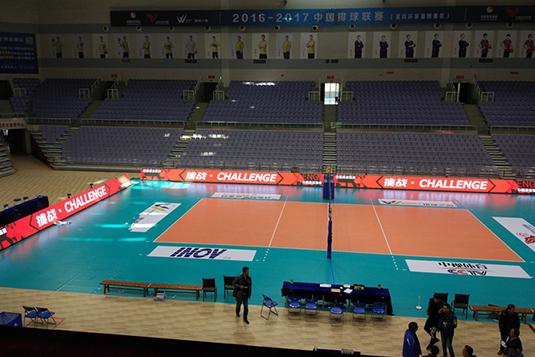

Stadium Perimeter LED Displays include outdoor led screen: 8mm, 10mm, 12mm and indoor led perimeter: 6mm and 10mm.
Features and Advantages:
1. High quality LED chip and high anti-static electricity capacity.
2. Large viewing angle and smooth displaying provide excellent visual effect from every angle.
3. The integration of lamp and driving IC,together with with the multi-circuit structure,achievs evenly-distributed current,low power consumption and fast heat dissipation.
4. Ultra high brightness,low attenuation,high reliability and weather ability.
5. High contrast ratio.Adopting black lamps can improve the contrast ratio by 50%.
6. High refresh rate,high gray scale,ghost-canceling,low power consumption,low EMI,anti-creeping,multi-route redundancy backup-supporting,and dot-by-dot-calibration.
Parameters:
| Parameter | Unit | Value | ||
| Brightness | nits | 1500 | ||
| Color temperature | deg.k | 3200 ~ 9300 | ||
| Viewing angle - Horizontal | deg. | 160(+80/-80) | ||
| Viewing angle - Vertical | deg. | 160(+80/-80) | ||
| Cabinet weight | kg | 50 | ||
| Cabinet width | mm | 960 | ||
| Cabinet height | mm | 960 | ||
| Cabinet depth | mm | 150 | ||
| Cabinet area | sq. m. | 0.92 | ||
| Cabinet material | Cold Steel | |||
| Aspect ratio | 6:5 | |||
| Ingress protection (Front/Rear) | IP | IP40/IP20 | ||
| Operating temperature range | deg. C | 0 to 40 | ||
| Operating humidity range | HR | 10％ to 90％ | ||
| Pixel type and configuration | R/G/B | SMD 3in1 | ||
| Pixel pitch | mm | 6 | ||
| Pixel matrix per cabinet | 160x160 | |||
| Pixels per cabinet | 25600 | |||
| Lines per meter | 166 | |||
| Pixels per sq. meter | 27777 | |||
| LEDs per sq. meter | 27777 | |||
| Recommended minimum viewing distance | m | 6 | ||
| Colours | 281trillion | |||
| Gray scale | Levels | 65536 levels per colour | ||
| Brightness control | Levels | 100 | ||
| Digital processing | bit | 16 | ||
| Frame rate | Hertz | 60 | ||
| Display refresh rate | Hertz | 1920 | ||
| Input voltage | VAC | 110/240 | ||
| Input power frequency | Hertz | 50/60 | ||
| Input power (max/avg) | Watts per sq.m | 500/170 | ||
| MTBF | Hours | ≥10000 | ||
| Lifetime (50%Brightness) | Hours | ≥100000 | ||
| Module brightness uniformity | ＜5％ | |||
| Blind spot rate | ＜0.0001 | |||
| Earth leakage current | mA | ＜2 | ||
| Red wavelength | nm | 623 | ||
| Green wavelength | nm | 525 | ||
| Blue wavelength | nm | 470 | ||
| Panel input format (with video processor) | VGA,DVI,SDI,YPbPr(HDTV),Composite,S-Video,TV | |||
| Data interconnection | CAT6 cable/Fiber | |||
| Operating system | Windows(XP/Vista/7/8/10) | |||
| Control distance | Up to 180 meters by CAT6 cable, single fiber up to 15 kilometers. | |||
Why choose us:
Continues Quality
With more than 10 years experience in led display producing,equipments are updated regularly.What’s
more,unique standardized and module production ensure our products continuous quality.
Competitive Price
With large scale production capacity and professional production technology,our company have built
effective modular production.We always stick to promote the technical innovation and reduce cost to
benefit customers.
Fast Delivery
Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency
inventory will be used to maintain your uninterrupted supply of the products.
Perfect Service
Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to
you.
After-sales:We will track the products usage and then constantly perfect our products.
