| Price | Negociatable |
| MOQ | 50pcs |
| Delivery Time | 7-15days |
| Brand | HONGKING |
| Place of Origin | China |
| Certification | CE ROHS Anatel |
| Model Number | F660 V5 |
| Packaging Details | Carton Box |
| Payment Terms | T/T,Western Union |
| Supply Ability | 10000pcs/Week |
| Dimensions (H x W x D) | 180*38*127mm | Operating Temperature | 0°C to 40°C |
| Place of Origin | China | System Power Supply | 11 V to 14 V DC, 1 A |
| Use | FTTH | Packaging Details | Carton Box |
| Port | shenzhen | Ports | 4FE 2TEL 1USB 2.4G WiFi |
| Model Number | F660 V5 | Supply Ability | 10000pcs/Week |
| Certification | CE ROHS Anatel | Weight | 270g |
| Brand Name | HONGKING | Payment Terms | T/T,Western Union |
| Type | FTTx Solutions | Optical Connector | SC / UPC |
| Price | Negociatable | Delivery Time | 7-15days |
| Minimum Order Quantity | 50pcs | No. of Fiber | 1. |
| Model | ZTE ZXHN F660 v5.0 | Indicators | Power/PON/LOS/internet/wifi/LAN/USB |

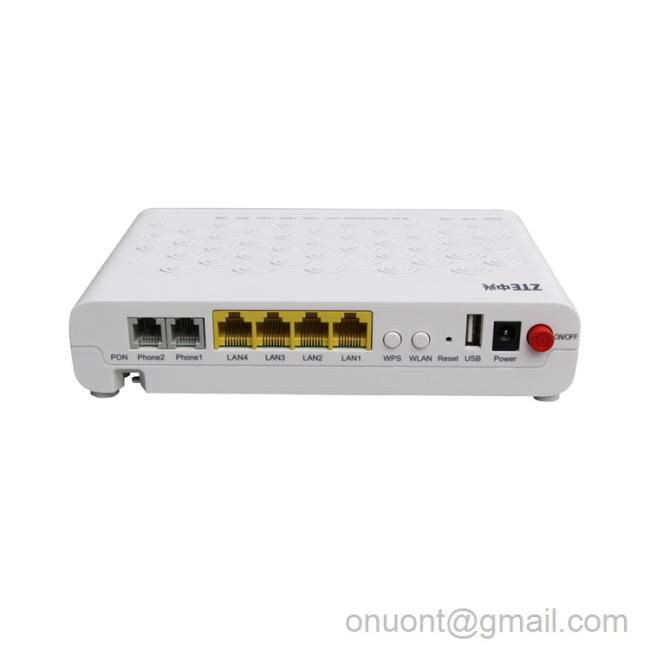

ZTE GPON F660 V5 4FE 2TEL 1USB WiFi FTTH Optical Network Terminal ZTE F660 V5
ZTE ZXHN F660 2.4G Wi-Fi ONU
4FE 2TEL 1USB WiFi
The ZTE ZXHN F660 GPON ONU is a GPON Optical Network Terminal designed for FTTH scenario. It supports L3 function to help subscriber construct intelligent home network.
It provides rich, colorful, individualized, convenirnt and comfortable services including voice, video(IPTV) and high speed internet access.
Specification:
| GPON Interface |
Optical port: 1 x GPON interface (SC/PC) Transmission Distance: 0 ~ 20km Transmit rate: 2.488Gbps downstream; 1.244Gbps upstream |
| User Network Interface |
4 x10/100/1000Base-T;Half/full duplex; Auto MDI/MDIX; Auto negotiation 2 x POTS interfaces 1 x Wi-Fi interface: IEEE 802.11b/g/n @2.4G Hz 1 x USB 2.0 host interface |
| Optical Module |
Receiving: 1480~1500 nm Transmitting: 1290~1330 nm Receiving Sensitivity: -28dBm Transmitting Optical Power: 0.5~5dBm |
