| Price | Negotiable |
| MOQ | 1SET |
| Delivery Time | 5-8 Days |
| Brand | Leader-t/OEM |
| Place of Origin | China |
| Certification | CE/ISO |
| Model Number | LD-EDI 1000LPH |
| Packaging Details | Wooden /Box |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 1000 Sets /Month |
| Brand Name | Leader-t/OEM | Payment Terms | L/C, T/T, Western Union |
| Place of Origin | China | Price | Negotiable |
| Delivery Time | 5-8 Days | Minimum Order Quantity | 1SET |
| Packaging Details | Wooden /Box | Model Number | LD-EDI 1000LPH |
| Supply Ability | 1000 Sets /Month | Certification | CE/ISO |
| Configuration list | ||||
| Configuration | Material | SPEC | Brand | |
| Tank | FRP /SS | 844/725/1065etc | Domestic/Pentair etc. | |
| Value | / | Auto/Manual | Domestic/Pentair etc | |
| Filter | quartz sand | 20-80 mesh | Domestic | |
| Active Carbon | 600-1100Mg/g | Domestic | ||
| Resin | / | Domestic PUROLITE,Rohm Hass | ||
| Ro membrance | Cellulose acetate membrane,element | 1812/2521/2540,4040/8040 etc.. | VONTRON/DOW,HYDRANAUTIC/Dongli | |
| Controlling System | / | PLC ,Maunal,Electric control | Domestic,Siemens | |
| Pipe/Value | Upvc/ss304/ss316 | DN15-DN150 | Domestic | |
| Pump | SS/Iron/Copper | CNP,Grundfos | ||
| Optional | Customize the design according to the customer's URS | |||
| Application | Power stations,electronics industry, cosmetics production, pharmaceutical companies, medical care | |||

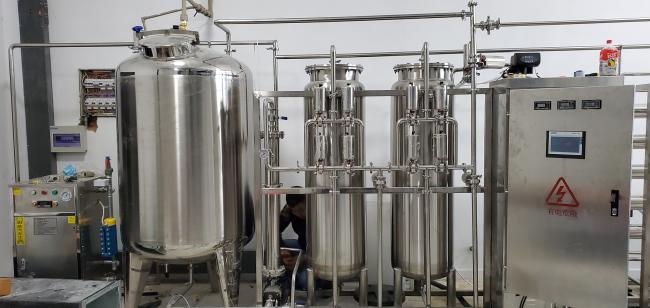

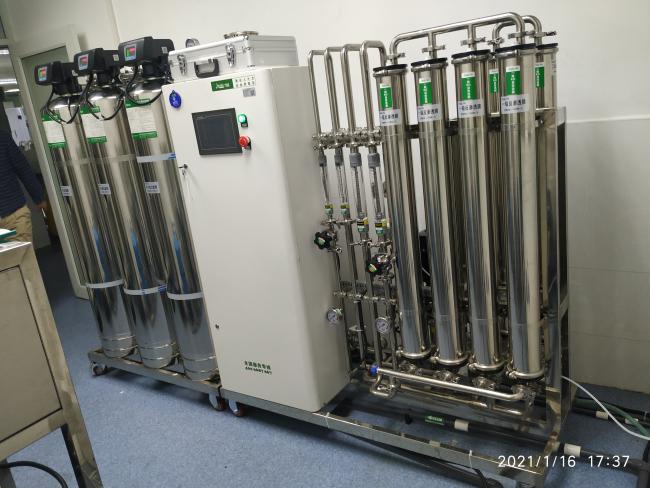

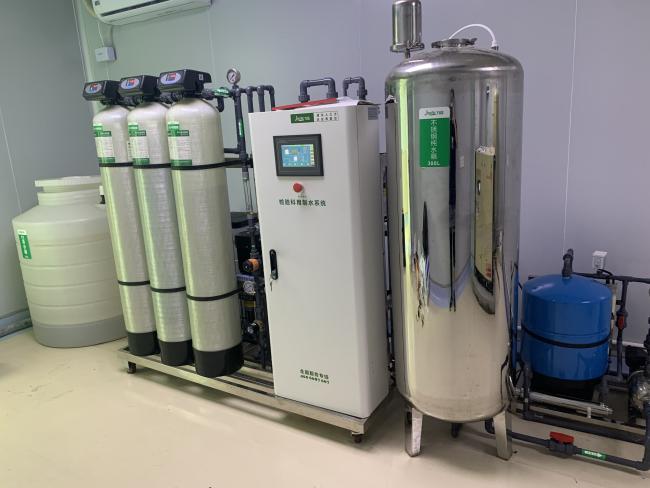

1. Raw water pump-- provide the pressure to quartz sand filter/active carbon filter.
2. Quartz sand filter--get rid of turbidity, suspended matter, organic matter, colloid, etc.
3. Active Carbon filter--Remove the color, free chloride, organic matter, harmful matter, etc.
4. Softener--exchange "ions" of calcium and magnesium with the most common and easiest method.
5. Security filter--prevent large particles, bacteria, viruses into RO membrane, accuracy is 5um,
6. High pressure pump--Provide the high pressure to RO membrane ro.
7.RO system-- main part of the plant. The RO membrane's desalting rate can reach 97%, removing over 97% ions.
